| Descripción | 40VIN, 3.5A/6A Step-Down Silent Switcher μModule Regulator |
| Páginas / Página | 28 / 6 — TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 1.4 Mb |
| Idioma del documento | Inglés |

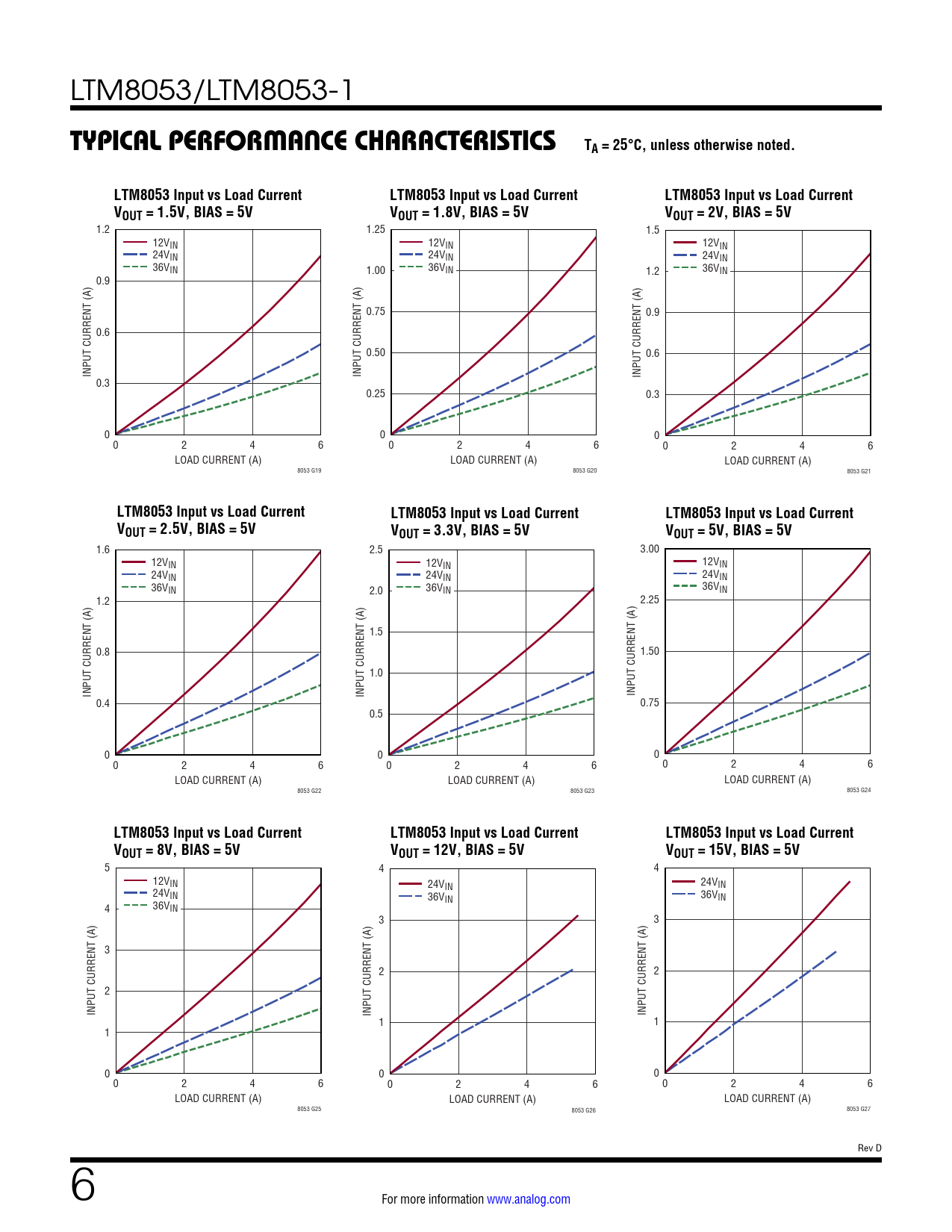

TYPICAL PERFORMANCE CHARACTERISTICS TA = 25°C, unless otherwise noted. LTM8053 Input vs Load Current
