AD588. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION. Table 3. Test Conditions Voltage. Conditions
Línea de modelo para esta hoja de datos
Versión de texto del documento

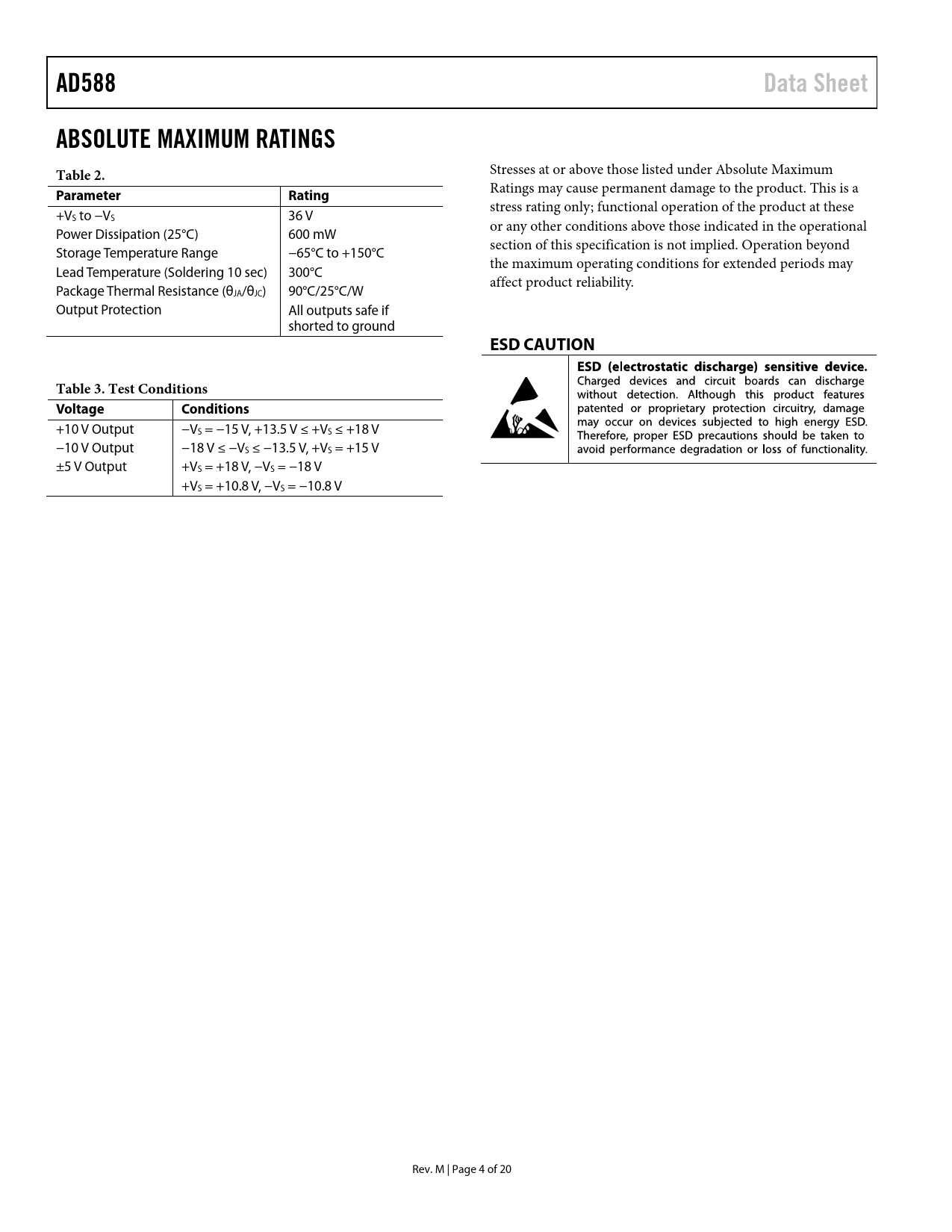

AD588 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a +V stress rating only; functional operation of the product at these S to −VS 36 V or any other conditions above those indicated in the operational Power Dissipation (25°C) 600 mW section of this specification is not implied. Operation beyond Storage Temperature Range −65°C to +150°C the maximum operating conditions for extended periods may Lead Temperature (Soldering 10 sec) 300°C affect product reliability. Package Thermal Resistance (θJA/θJC) 90°C/25°C/W Output Protection All outputs safe if shorted to ground
ESD CAUTION Table 3. Test Conditions Voltage Conditions
+10 V Output −VS = −15 V, +13.5 V ≤ +VS ≤ +18 V −10 V Output −18 V ≤ −VS ≤ −13.5 V, +VS = +15 V ±5 V Output +VS = +18 V, −VS = −18 V +V S = +10.8 V, −VS = −10.8 V Rev. M | Page 4 of 20 Document Outline FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS THEORY OF OPERATION APPLICATIONS INFORMATION CALIBRATION NOISE PERFORMANCE AND REDUCTION TURN-ON TIME TEMPERATURE PERFORMANCE KELVIN CONNECTIONS DYNAMIC PERFORMANCE USING THE AD588 WITH CONVERTERS AD7535 14-BIT DIGITAL-TO-ANALOG CONVERTER AD569 16-BIT DIGITAL-TO-ANALOG CONVERTER SUBSTITUTING FOR INTERNAL REFERENCES AD574A 12-BIT ANALOG-TO-DIGITAL CONVERTER RESISTANCE TEMPERATURE DETECTOR (RTD) EXCITATION BOOSTED PRECISION CURRENT SOURCE BRIDGE DRIVER CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE
