Datasheet AD587 (Analog Devices) - 5

FabricanteAnalog Devices
DescripciónHigh Precision 10 V Reference
Páginas / Página12 / 5 — AD587. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. NOISE. TP* 1. …
RevisiónH
Formato / tamaño de archivoPDF / 363 Kb
Idioma del documentoInglés

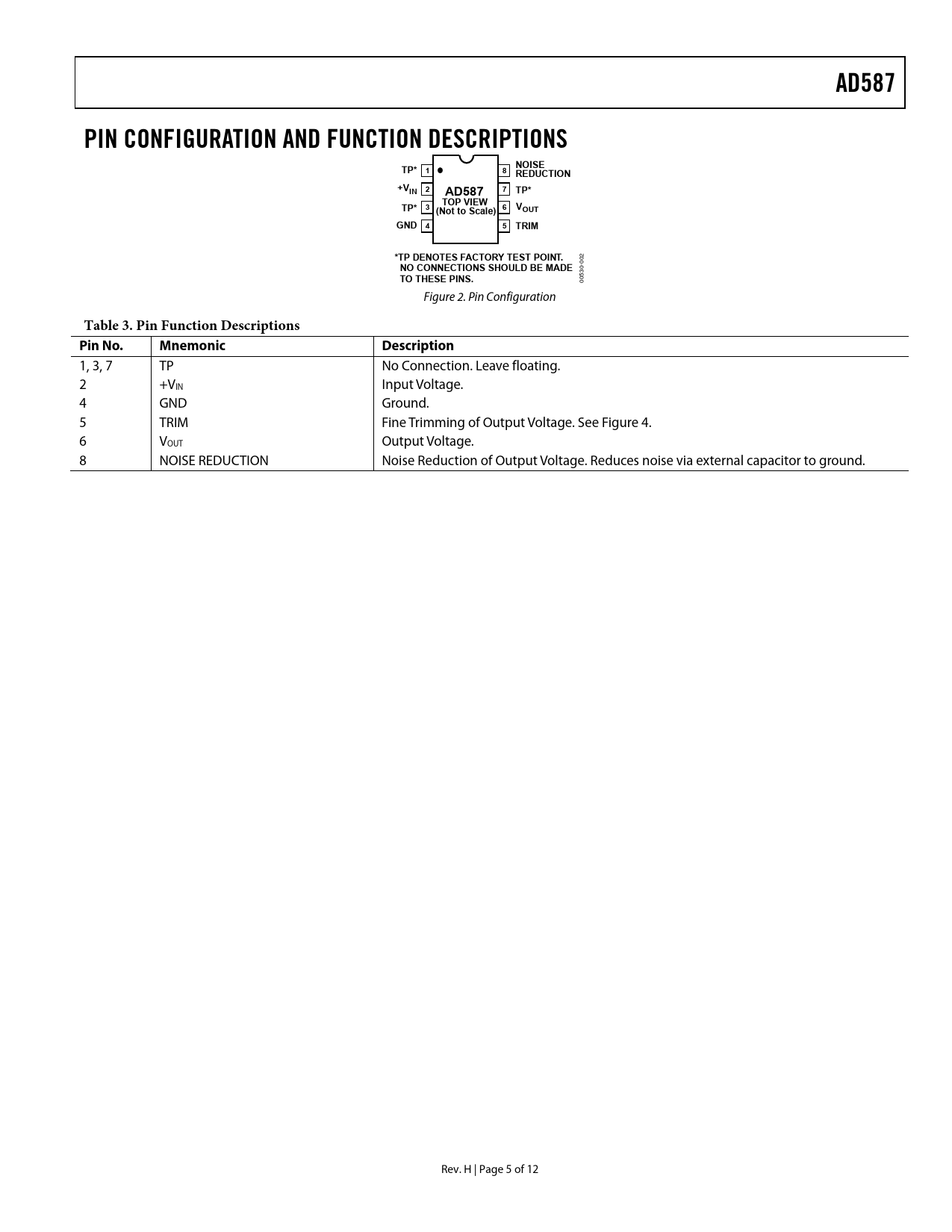

AD587. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. NOISE. TP* 1. REDUCTION. TP*. TOP VIEW. TP* 3. (Not to Scale). VOUT. GND 4. TRIM

AD587 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS NOISE TP* 1 REDUCTION TP* TOP VIEW TP* 3 (Not to Scale) VOUT GND 4 TRIM

Línea de modelo para esta hoja de datos

Versión de texto del documento

link to page 6
AD587 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS NOISE TP* 1 8 REDUCTION +V 2 7 IN AD587 TP* TOP VIEW TP* 3 6 (Not to Scale) VOUT GND 4 5 TRIM *TP DENOTES FACTORY TEST POINT.
2 00
NO CONNECTIONS SHOULD BE MADE
0-
TO THESE PINS.
53 00 Figure 2. Pin Configuration
Table 3. Pin Function Descriptions Pin No. Mnemonic Description
1, 3, 7 TP No Connection. Leave floating. 2 +VIN Input Voltage. 4 GND Ground. 5 TRIM Fine Trimming of Output Voltage. See Figure 4. 6 VOUT Output Voltage. 8 NOISE REDUCTION Noise Reduction of Output Voltage. Reduces noise via external capacitor to ground. Rev. H | Page 5 of 12 Document Outline FEATURES FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION PRODUCT HIGHLIGHTS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS THEORY OF OPERATION APPLYING THE AD587 NOISE PERFORMANCE AND REDUCTION TURN-ON TIME DYNAMIC PERFORMANCE LOAD REGULATION TEMPERATURE PERFORMANCE NEGATIVE REFERENCE VOLTAGE FROM AN AD587 APPLICATIONS INFORMATION USING THE AD587 WITH CONVERTERS 10 V Reference with Multiplying CMOS DACs or ADCs Precision Current Source Precision High Current Supply OUTLINE DIMENSIONS ORDERING GUIDE
