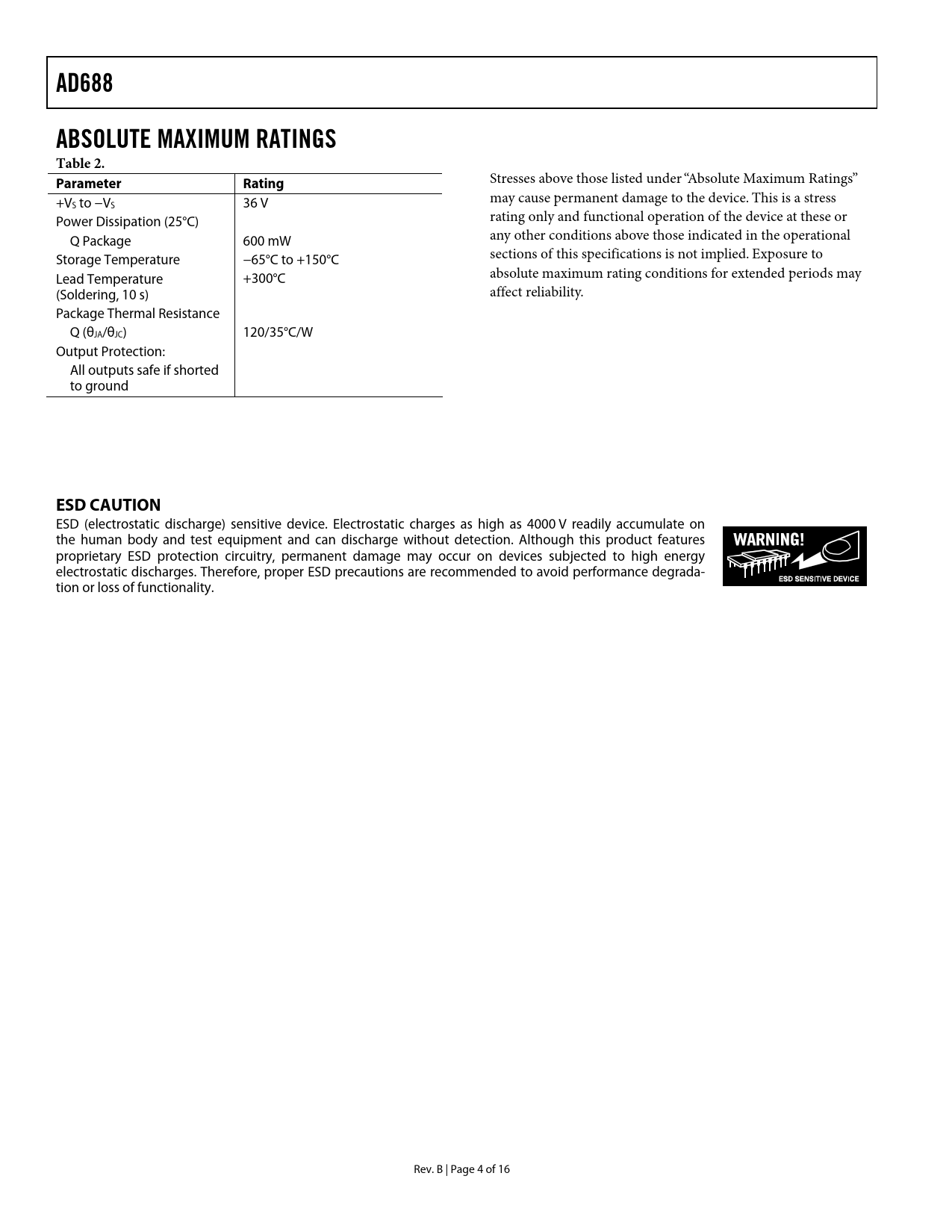

AD688. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD688 ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating
Stresses above those listed under “Absolute Maximum Ratings” +V may cause permanent damage to the device. This is a stress S to −VS 36 V Power Dissipation (25°C) rating only and functional operation of the device at these or Q Package 600 mW any other conditions above those indicated in the operational Storage Temperature −65°C to +150°C sections of this specifications is not implied. Exposure to Lead Temperature +300°C absolute maximum rating conditions for extended periods may (Soldering, 10 s) affect reliability. Package Thermal Resistance Q (θJA/θJC) 120/35°C/W Output Protection: All outputs safe if shorted to ground
ESD CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although this product features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended to avoid performance degrada- tion or loss of functionality. Rev. B | Page 4 of 16 Document Outline FEATURES GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM PRODUCT HIGHLIGHTS SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS THEORY OF OPERATION APPLICATIONS CALIBRATION NOISE PERFORMANCE AND REDUCTION TURN ON TIME TEMPERATURE PERFORMANCE KELVIN CONNECTIONS DYNAMIC PERFORMANCE BRIDGE DRIVER CIRCUIT OUTLINE DIMENSIONS ORDERING GUIDE
