Datasheet AD1582, AD1583, AD1584, AD1585 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | 5.0 V Micropower, Precision Series Mode Voltage Reference |
| Páginas / Página | 17 / 6 — AD1582/AD1583/AD1584/AD1585. Data Sheet. AD1584 SPECIFICATIONS. Table 4. … |
| Revisión | M |
| Formato / tamaño de archivo | PDF / 424 Kb |
| Idioma del documento | Inglés |

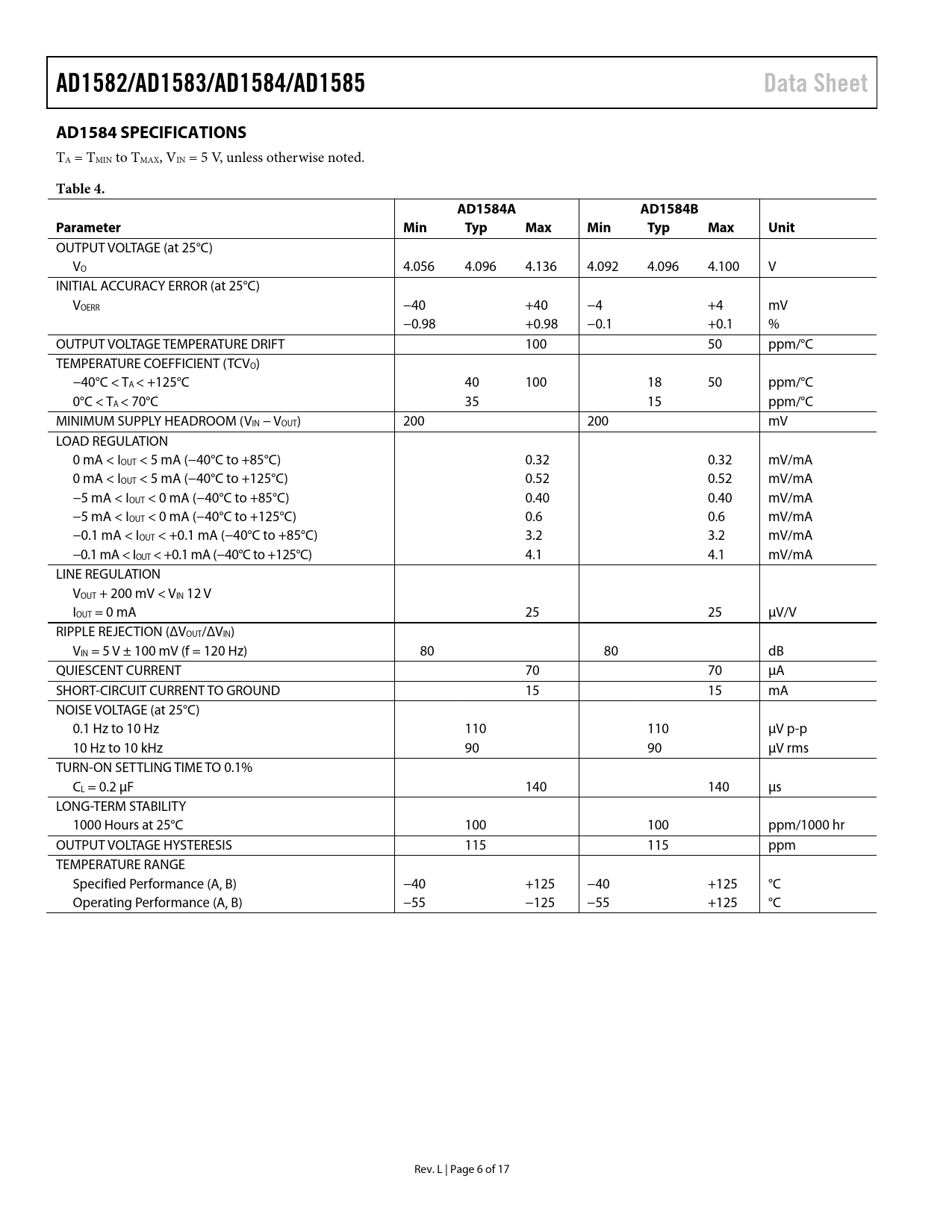

AD1582/AD1583/AD1584/AD1585. Data Sheet. AD1584 SPECIFICATIONS. Table 4. AD1584A. AD1584B. Parameter. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD1582/AD1583/AD1584/AD1585 Data Sheet AD1584 SPECIFICATIONS
TA = TMIN to TMAX, VIN = 5 V, unless otherwise noted.
Table 4. AD1584A AD1584B Parameter Min Typ Max Min Typ Max Unit
OUTPUT VOLTAGE (at 25°C) VO 4.056 4.096 4.136 4.092 4.096 4.100 V INITIAL ACCURACY ERROR (at 25°C) VOERR −40 +40 −4 +4 mV −0.98 +0.98 −0.1 +0.1 % OUTPUT VOLTAGE TEMPERATURE DRIFT 100 50 ppm/°C TEMPERATURE COEFFICIENT (TCVO) −40°C < TA < +125°C 40 100 18 50 ppm/°C 0°C < TA < 70°C 35 15 ppm/°C MINIMUM SUPPLY HEADROOM (VIN − VOUT) 200 200 mV LOAD REGULATION 0 mA < IOUT < 5 mA (−40°C to +85°C) 0.32 0.32 mV/mA 0 mA < IOUT < 5 mA (−40°C to +125°C) 0.52 0.52 mV/mA −5 mA < IOUT < 0 mA (−40°C to +85°C) 0.40 0.40 mV/mA −5 mA < IOUT < 0 mA (−40°C to +125°C) 0.6 0.6 mV/mA −0.1 mA < IOUT < +0.1 mA (−40°C to +85°C) 3.2 3.2 mV/mA −0.1 mA < IOUT < +0.1 mA (−40°C to +125°C) 4.1 4.1 mV/mA LINE REGULATION VOUT + 200 mV < VIN 12 V IOUT = 0 mA 25 25 µV/V RIPPLE REJECTION (ΔVOUT/ΔVIN) VIN = 5 V ± 100 mV (f = 120 Hz) 80 80 dB QUIESCENT CURRENT 70 70 µA SHORT-CIRCUIT CURRENT TO GROUND 15 15 mA NOISE VOLTAGE (at 25°C) 0.1 Hz to 10 Hz 110 110 µV p-p 10 Hz to 10 kHz 90 90 µV rms TURN-ON SETTLING TIME TO 0.1% CL = 0.2 µF 140 140 µs LONG-TERM STABILITY 1000 Hours at 25°C 100 100 ppm/1000 hr OUTPUT VOLTAGE HYSTERESIS 115 115 ppm TEMPERATURE RANGE Specified Performance (A, B) −40 +125 −40 +125 °C Operating Performance (A, B) −55 −125 −55 +125 °C Rev. L | Page 6 of 17 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS AD1582 SPECIFICATIONS AD1583 SPECIFICATIONS AD1584 SPECIFICATIONS AD1585 SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION TERMINOLOGY TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION TEMPERATURE PERFORMANCE VOLTAGE OUTPUT NONLINEARITY VS. TEMPERATURE OUTPUT VOLTAGE HYSTERESIS SOLDER HEAT EFFECT SUPPLY CURRENT VS. TEMPERATURE SUPPLY VOLTAGE AC PERFORMANCE NOISE PERFORMANCE AND REDUCTION TURN-ON TIME DYNAMIC PERFORMANCE OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE APPLICATIONS
