Datasheet ADR291W (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | Low Noise Micropower Precision Voltage Reference (2.5 V) |
| Páginas / Página | 8 / 5 — ADR291W. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. ADR291. VIN 2. TOP … |
| Formato / tamaño de archivo | PDF / 128 Kb |
| Idioma del documento | Inglés |

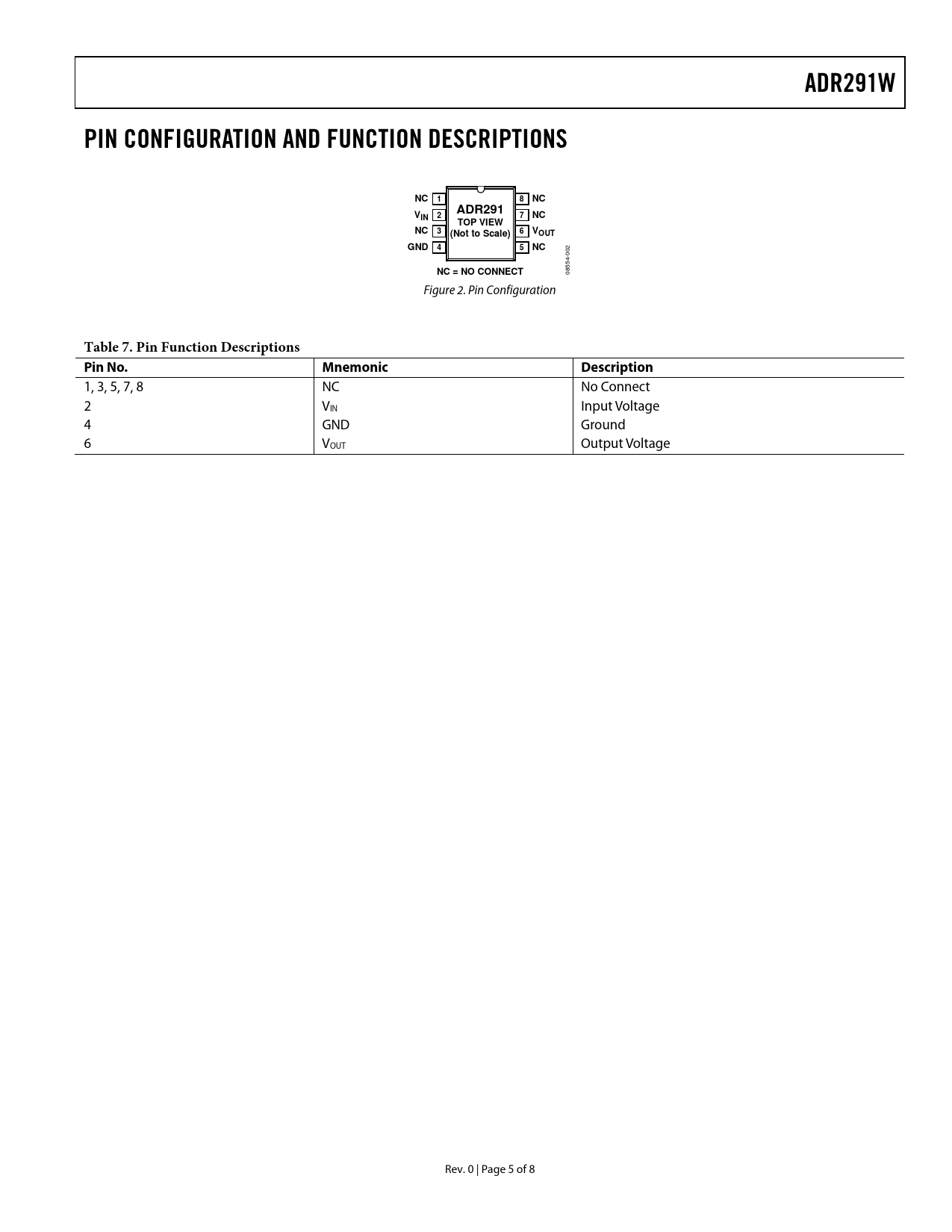

ADR291W. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. ADR291. VIN 2. TOP VIEW. (Not to Scale). OUT. GND. NC = NO CONNECT
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADR291W PIN CONFIGURATION AND FUNCTION DESCRIPTIONS NC 1 8 NC ADR291 VIN 2 7 NC TOP VIEW NC 3 6 V (Not to Scale) OUT GND 4 5 NC
02 0 4- 55
NC = NO CONNECT
08 Figure 2. Pin Configuration
Table 7. Pin Function Descriptions Pin No. Mnemonic Description
1, 3, 5, 7, 8 NC No Connect 2 VIN Input Voltage 4 GND Ground 6 VOUT Output Voltage Rev. 0 | Page 5 of 8 Document Outline Features Applications Connection Diagram General Description Revision History Specifications Electrical Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Terminology Outline Dimensions Ordering Guide
