LTC1798 Series
APPLICATIONS INFORMATION

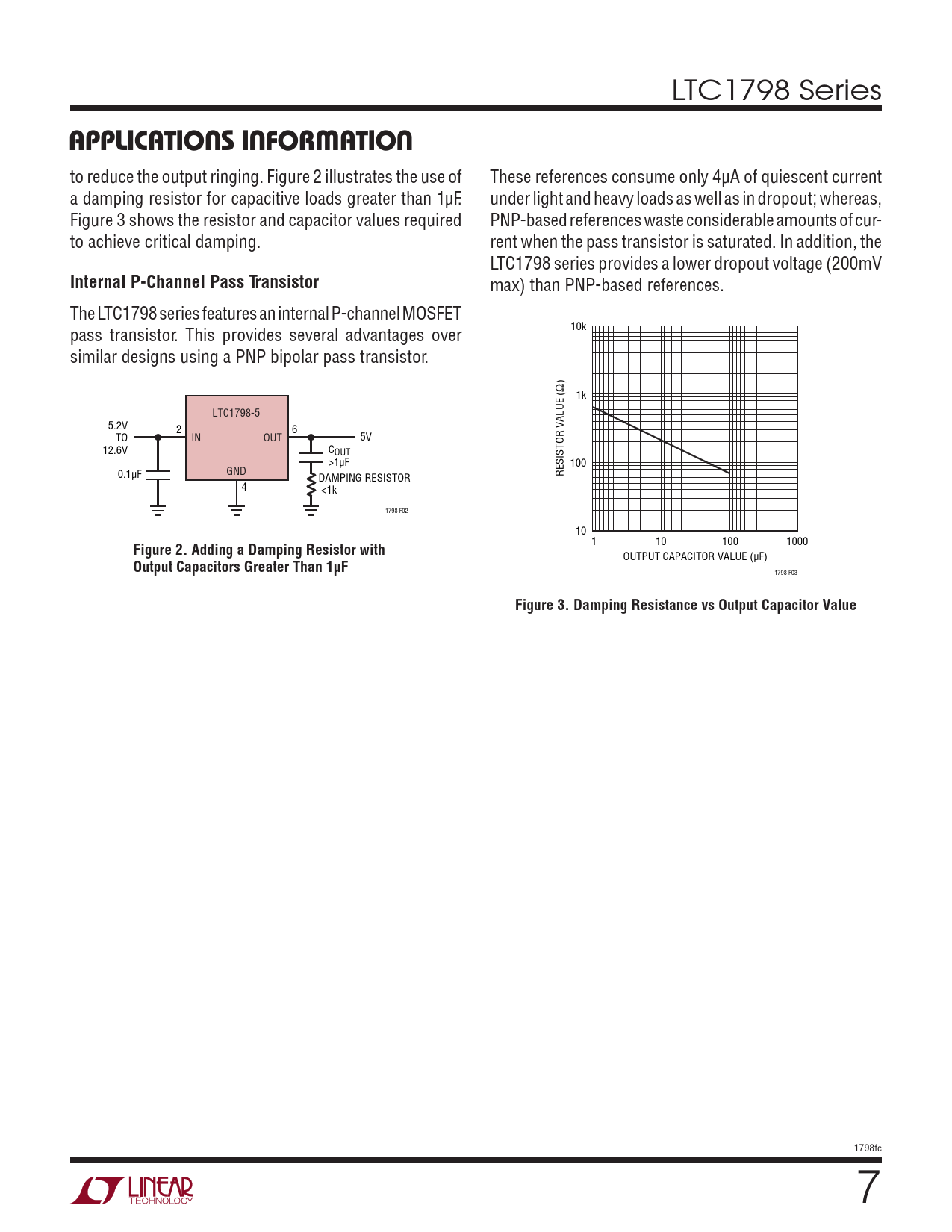

to reduce the output ringing. Figure 2 illustrates the use of These references consume only 4µA of quiescent current a damping resistor for capacitive loads greater than 1µF. under light and heavy loads as well as in dropout; whereas, Figure 3 shows the resistor and capacitor values required PNP-based references waste considerable amounts of cur- to achieve critical damping. rent when the pass transistor is saturated. In addition, the LTC1798 series provides a lower dropout voltage (200mV
Internal P-Channel Pass Transistor
max) than PNP-based references. The LTC1798 series features an internal P-channel MOSFET 10k pass transistor. This provides several advantages over similar designs using a PNP bipolar pass transistor. 1k LTC1798-5 5.2V 2 6 TO IN OUT 5V 12.6V COUT >1µF 100 GND 0.1µF DAMPING RESISTOR RESISTOR VALUE (Ω) 4 <1k 1798 F02 10
Figure 2. Adding a Damping Resistor with
1 10 100 1000 OUTPUT CAPACITOR VALUE (µF)
Output Capacitors Greater Than 1µF
1798 F03
Figure 3. Damping Resistance vs Output Capacitor Value
