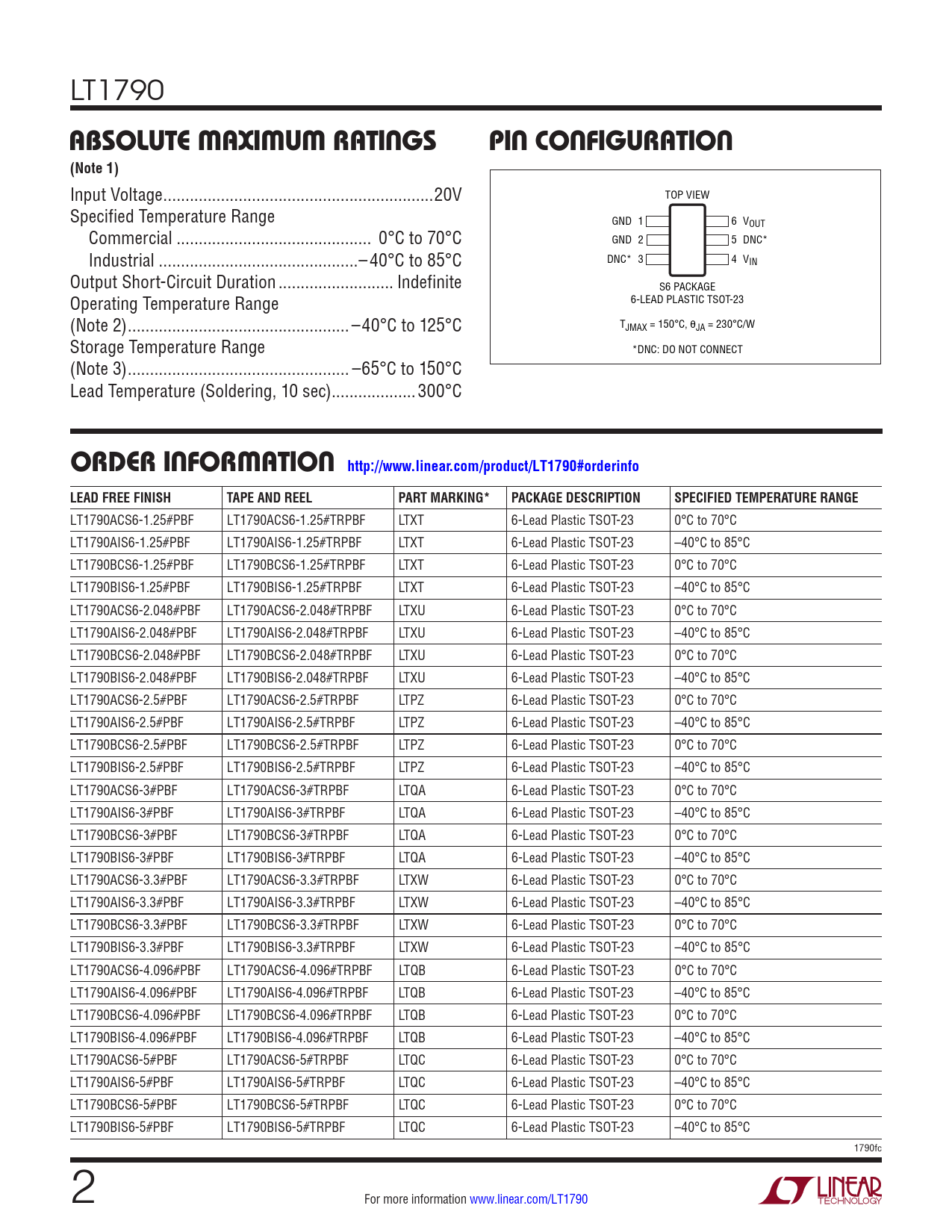

LT1790
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Note 1)
Input Voltage ...20V TOP VIEW Specified Temperature Range GND 1 6 VOUT Commercial .. 0°C to 70°C GND 2 5 DNC* Industrial ...–40°C to 85°C DNC* 3 4 VIN Output Short-Circuit Duration .. Indefinite S6 PACKAGE Operating Temperature Range 6-LEAD PLASTIC TSOT-23 (Note 2) .. –40°C to 125°C TJMAX = 150°C, θJA = 230°C/W Storage Temperature Range *DNC: DO NOT CONNECT (Note 3) .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C
ORDER INFORMATION http://www.linear.com/product/LT1790#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LT1790ACS6-1.25#PBF LT1790ACS6-1.25#TRPBF LTXT 6-Lead Plastic TSOT-23 0°C to 70°C LT1790AIS6-1.25#PBF LT1790AIS6-1.25#TRPBF LTXT 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790BCS6-1.25#PBF LT1790BCS6-1.25#TRPBF LTXT 6-Lead Plastic TSOT-23 0°C to 70°C LT1790BIS6-1.25#PBF LT1790BIS6-1.25#TRPBF LTXT 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790ACS6-2.048#PBF LT1790ACS6-2.048#TRPBF LTXU 6-Lead Plastic TSOT-23 0°C to 70°C LT1790AIS6-2.048#PBF LT1790AIS6-2.048#TRPBF LTXU 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790BCS6-2.048#PBF LT1790BCS6-2.048#TRPBF LTXU 6-Lead Plastic TSOT-23 0°C to 70°C LT1790BIS6-2.048#PBF LT1790BIS6-2.048#TRPBF LTXU 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790ACS6-2.5#PBF LT1790ACS6-2.5#TRPBF LTPZ 6-Lead Plastic TSOT-23 0°C to 70°C LT1790AIS6-2.5#PBF LT1790AIS6-2.5#TRPBF LTPZ 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790BCS6-2.5#PBF LT1790BCS6-2.5#TRPBF LTPZ 6-Lead Plastic TSOT-23 0°C to 70°C LT1790BIS6-2.5#PBF LT1790BIS6-2.5#TRPBF LTPZ 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790ACS6-3#PBF LT1790ACS6-3#TRPBF LTQA 6-Lead Plastic TSOT-23 0°C to 70°C LT1790AIS6-3#PBF LT1790AIS6-3#TRPBF LTQA 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790BCS6-3#PBF LT1790BCS6-3#TRPBF LTQA 6-Lead Plastic TSOT-23 0°C to 70°C LT1790BIS6-3#PBF LT1790BIS6-3#TRPBF LTQA 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790ACS6-3.3#PBF LT1790ACS6-3.3#TRPBF LTXW 6-Lead Plastic TSOT-23 0°C to 70°C LT1790AIS6-3.3#PBF LT1790AIS6-3.3#TRPBF LTXW 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790BCS6-3.3#PBF LT1790BCS6-3.3#TRPBF LTXW 6-Lead Plastic TSOT-23 0°C to 70°C LT1790BIS6-3.3#PBF LT1790BIS6-3.3#TRPBF LTXW 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790ACS6-4.096#PBF LT1790ACS6-4.096#TRPBF LTQB 6-Lead Plastic TSOT-23 0°C to 70°C LT1790AIS6-4.096#PBF LT1790AIS6-4.096#TRPBF LTQB 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790BCS6-4.096#PBF LT1790BCS6-4.096#TRPBF LTQB 6-Lead Plastic TSOT-23 0°C to 70°C LT1790BIS6-4.096#PBF LT1790BIS6-4.096#TRPBF LTQB 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790ACS6-5#PBF LT1790ACS6-5#TRPBF LTQC 6-Lead Plastic TSOT-23 0°C to 70°C LT1790AIS6-5#PBF LT1790AIS6-5#TRPBF LTQC 6-Lead Plastic TSOT-23 –40°C to 85°C LT1790BCS6-5#PBF LT1790BCS6-5#TRPBF LTQC 6-Lead Plastic TSOT-23 0°C to 70°C LT1790BIS6-5#PBF LT1790BIS6-5#TRPBF LTQC 6-Lead Plastic TSOT-23 –40°C to 85°C 1790fc 2 For more information www.linear.com/LT1790 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Available Options 1.25V Electrical Characteristics 2.048V Electrical Characteristics 2.5V Electrical Characteristics 3V Electrical Characteristics 3.3V Electrical Characteristics 4.096V Electrical Characteristics 5V Electrical Characteristics 1.25V Typical Performance Characteristics 2.048V Typical Performance Characteristics 2.5V Typical Performance Characteristics 5V Typical Performance Characteristics Applications Information Simplified Schematic Package Description Revision History Typical Application Related Parts
