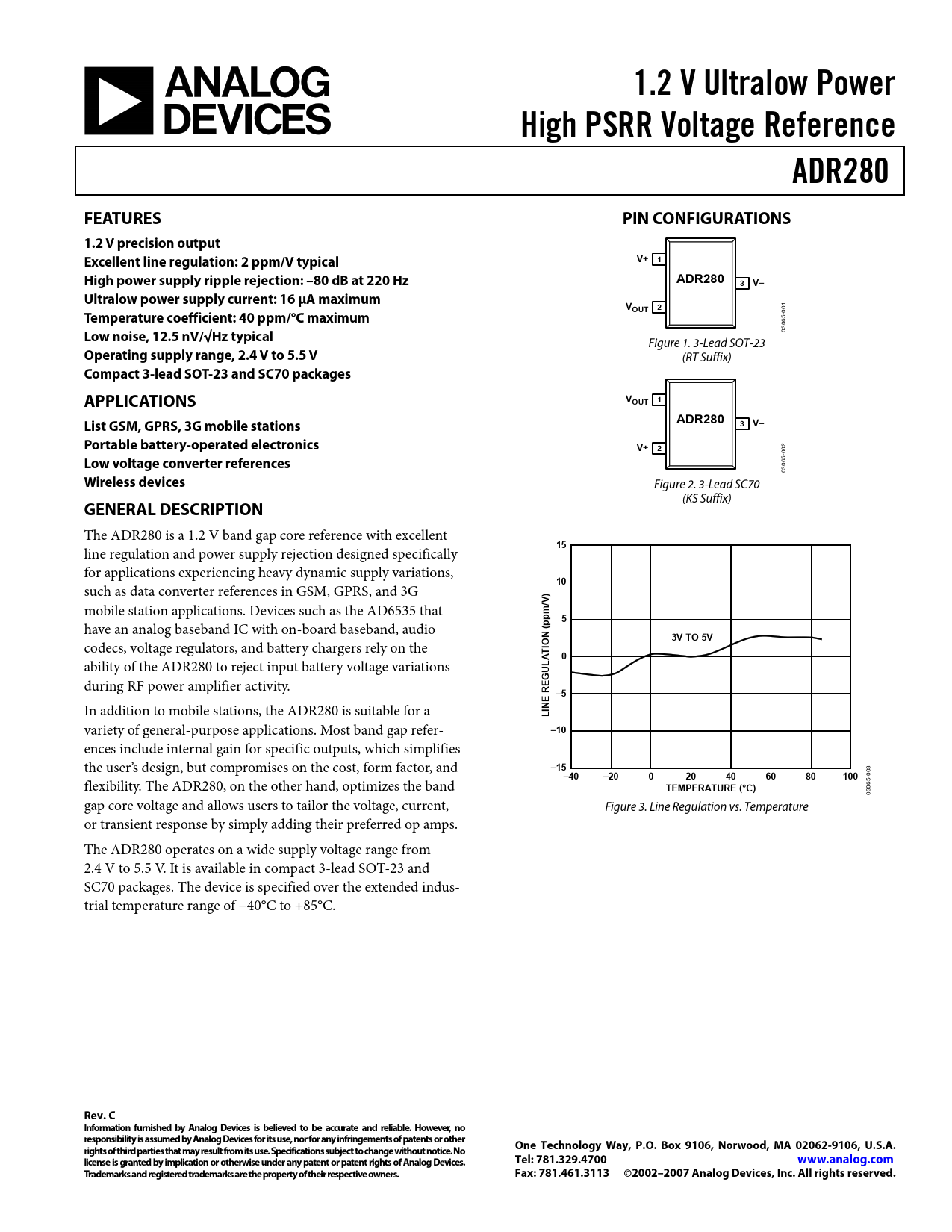

1.2 V Ultralow Power High PSRR Voltage Reference ADR280 FEATURES PIN CONFIGURATIONS 1.2 V precision output Excellent line regulation: 2 ppm/V typical V+ 1 High power supply ripple rejection: –80 dB at 220 Hz ADR280 3 V– Ultralow power supply current: 16 μA maximum VOUT 2
01
Temperature coefficient: 40 ppm/°C maximum
-0 065 03
Low noise, 12.5 nV/√Hz typical
Figure 1. 3-Lead SOT-23
Operating supply range, 2.4 V to 5.5 V
(RT Suffix)
Compact 3-lead SOT-23 and SC70 packages APPLICATIONS VOUT 1 ADR280 List GSM, GPRS, 3G mobile stations 3 V– Portable battery-operated electronics V+ 2
02 -0
Low voltage converter references
065 03
Wireless devices
Figure 2. 3-Lead SC70 (KS Suffix)
GENERAL DESCRIPTION
The ADR280 is a 1.2 V band gap core reference with excellent
15
line regulation and power supply rejection designed specifically for applications experiencing heavy dynamic supply variations,
10
such as data converter references in GSM, GPRS, and 3G
) /V
mobile station applications. Devices such as the AD6535 that
m p 5 p
have an analog baseband IC with on-board baseband, audio
N ( 3V TO 5V
codecs, voltage regulators, and battery chargers rely on the
IO T A 0
ability of the ADR280 to reject input battery voltage variations
UL G
during RF power amplifier activity.
RE –5
In addition to mobile stations, the ADR280 is suitable for a
INE L
variety of general-purpose applications. Most band gap refer-
–10
ences include internal gain for specific outputs, which simplifies the user’s design, but compromises on the cost, form factor, and
–15
03
–40 –20 0 20 40 60 80 100
0 5- flexibility. The ADR280, on the other hand, optimizes the band
TEMPERATURE (°C)
06 03 gap core voltage and allows users to tailor the voltage, current, Figure 3. Line Regulation vs. Temperature or transient response by simply adding their preferred op amps. The ADR280 operates on a wide supply voltage range from 2.4 V to 5.5 V. It is available in compact 3-lead SOT-23 and SC70 packages. The device is specified over the extended indus- trial temperature range of −40°C to +85°C.
