LTC6655

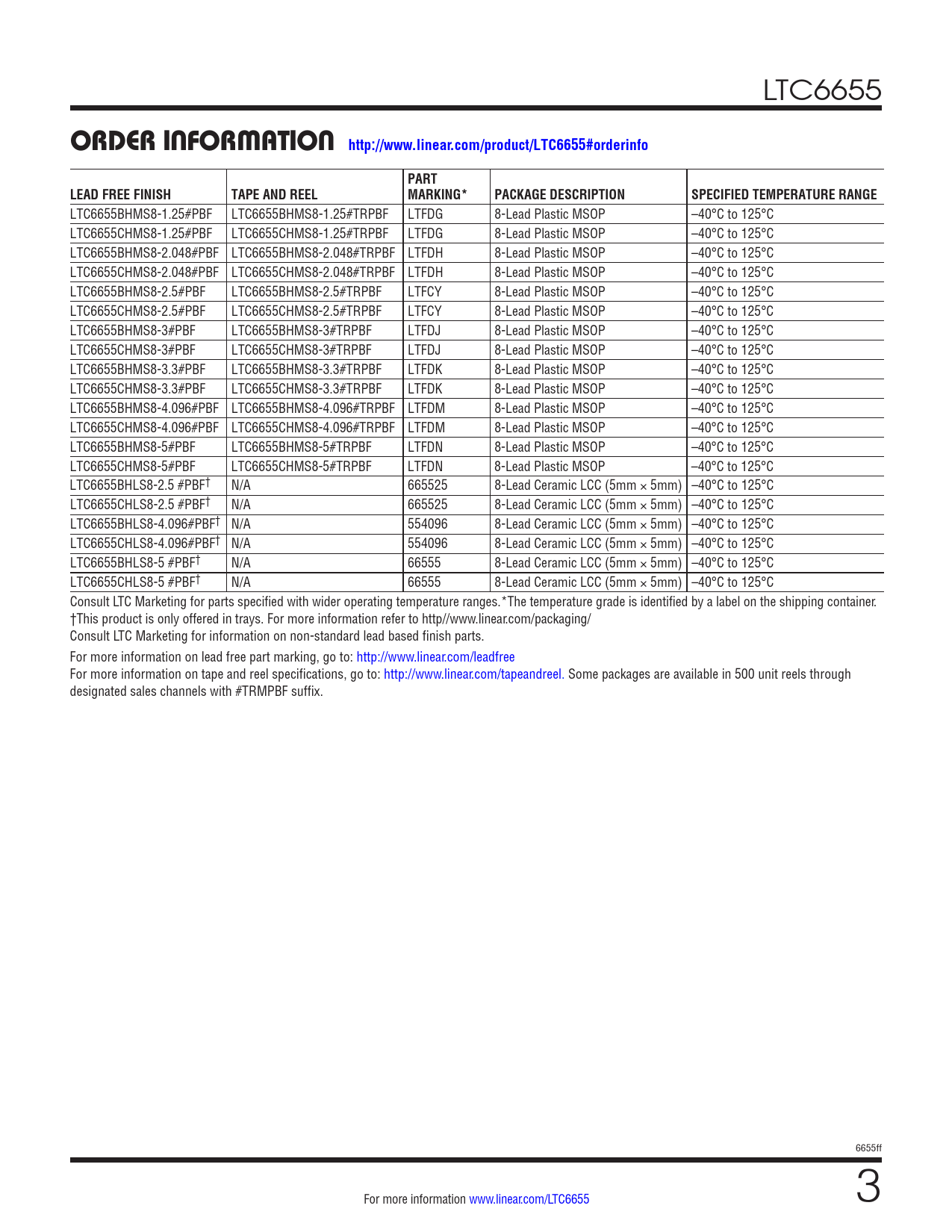

orDer inForMaTion http://www.linear.com/product/LTC6655#orderinfo PART LEAD FREE FINISH TAPE AND REEL MARKING* PACKAGE DESCRIPTION SPECIFIED TEMPERATURE RANGE
LTC6655BHMS8-1.25#PBF LTC6655BHMS8-1.25#TRPBF LTFDG 8-Lead Plastic MSOP –40°C to 125°C LTC6655CHMS8-1.25#PBF LTC6655CHMS8-1.25#TRPBF LTFDG 8-Lead Plastic MSOP –40°C to 125°C LTC6655BHMS8-2.048#PBF LTC6655BHMS8-2.048#TRPBF LTFDH 8-Lead Plastic MSOP –40°C to 125°C LTC6655CHMS8-2.048#PBF LTC6655CHMS8-2.048#TRPBF LTFDH 8-Lead Plastic MSOP –40°C to 125°C LTC6655BHMS8-2.5#PBF LTC6655BHMS8-2.5#TRPBF LTFCY 8-Lead Plastic MSOP –40°C to 125°C LTC6655CHMS8-2.5#PBF LTC6655CHMS8-2.5#TRPBF LTFCY 8-Lead Plastic MSOP –40°C to 125°C LTC6655BHMS8-3#PBF LTC6655BHMS8-3#TRPBF LTFDJ 8-Lead Plastic MSOP –40°C to 125°C LTC6655CHMS8-3#PBF LTC6655CHMS8-3#TRPBF LTFDJ 8-Lead Plastic MSOP –40°C to 125°C LTC6655BHMS8-3.3#PBF LTC6655BHMS8-3.3#TRPBF LTFDK 8-Lead Plastic MSOP –40°C to 125°C LTC6655CHMS8-3.3#PBF LTC6655CHMS8-3.3#TRPBF LTFDK 8-Lead Plastic MSOP –40°C to 125°C LTC6655BHMS8-4.096#PBF LTC6655BHMS8-4.096#TRPBF LTFDM 8-Lead Plastic MSOP –40°C to 125°C LTC6655CHMS8-4.096#PBF LTC6655CHMS8-4.096#TRPBF LTFDM 8-Lead Plastic MSOP –40°C to 125°C LTC6655BHMS8-5#PBF LTC6655BHMS8-5#TRPBF LTFDN 8-Lead Plastic MSOP –40°C to 125°C LTC6655CHMS8-5#PBF LTC6655CHMS8-5#TRPBF LTFDN 8-Lead Plastic MSOP –40°C to 125°C LTC6655BHLS8-2.5 #PBF† N/A 665525 8-Lead Ceramic LCC (5mm × 5mm) –40°C to 125°C LTC6655CHLS8-2.5 #PBF† N/A 665525 8-Lead Ceramic LCC (5mm × 5mm) –40°C to 125°C LTC6655BHLS8-4.096#PBF† N/A 554096 8-Lead Ceramic LCC (5mm × 5mm) –40°C to 125°C LTC6655CHLS8-4.096#PBF† N/A 554096 8-Lead Ceramic LCC (5mm × 5mm) –40°C to 125°C LTC6655BHLS8-5 #PBF† N/A 66555 8-Lead Ceramic LCC (5mm × 5mm) –40°C to 125°C LTC6655CHLS8-5 #PBF† N/A 66555 8-Lead Ceramic LCC (5mm × 5mm) –40°C to 125°C Consult LTC Marketing for parts specified with wider operating temperature ranges.*The temperature grade is identified by a label on the shipping container. †This product is only offered in trays. For more information refer to http//www.linear.com/packaging/ Consult LTC Marketing for information on non-standard lead based finish parts. For more information on lead free part marking, go to: http://www.linear.com/leadfree For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 6655ff For more information www.linear.com/LTC6655 3 Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information Available Options Electrical Characteristics Pin Functions Block Diagram Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
