Datasheet ADR3512 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | Micropower, High Accuracy Voltage Reference |
| Páginas / Página | 16 / 4 — ADR3512. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL … |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 819 Kb |
| Idioma del documento | Inglés |

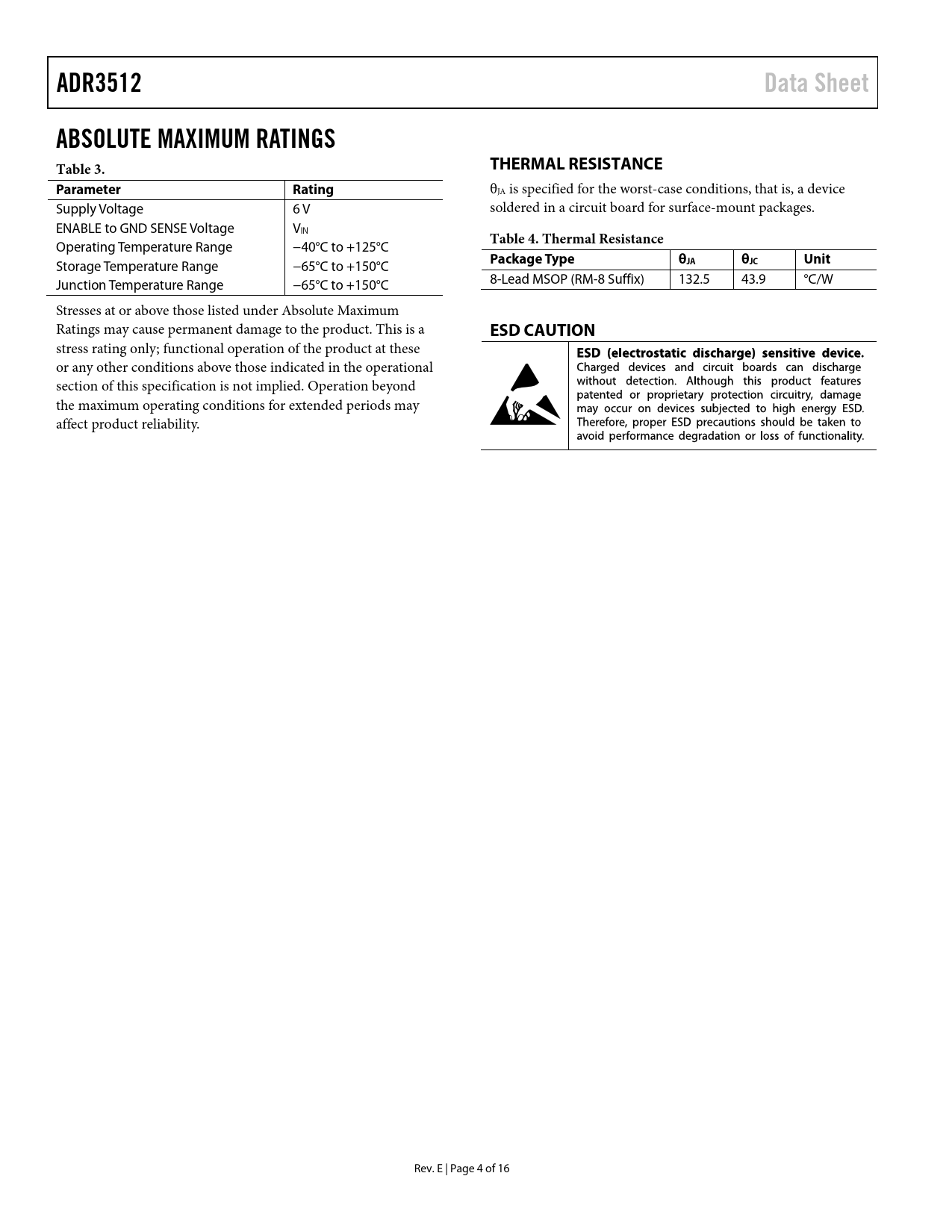

ADR3512. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE. Parameter. Rating. Table 4. Thermal Resistance
Línea de modelo para esta hoja de datos
Versión de texto del documento
ADR3512 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 6 V soldered in a circuit board for surface-mount packages. ENABLE to GND SENSE Voltage VIN Operating Temperature Range −40°C to +125°C
Table 4. Thermal Resistance
Storage Temperature Range −65°C to +150°C
Package Type θJA θJC Unit
Junction Temperature Range −65°C to +150°C 8-Lead MSOP (RM-8 Suffix) 132.5 43.9 °C/W Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
ESD CAUTION
stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. E | Page 4 of 16 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TERMINOLOGY THEORY OF OPERATION LONG-TERM OUTPUT VOLTAGE DRIFT POWER DISSIPATION APPLICATIONS INFORMATION BASIC VOLTAGE REFERENCE CONNECTION INPUT AND OUTPUT CAPACITORS 4-WIRE KELVIN CONNECTIONS VIN SLEW RATE CONSIDERATIONS SHUTDOWN/ENABLE FEATURE SAMPLE APPLICATIONS Negative Reference Bipolar Output Reference Boosted Output Current Reference OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
