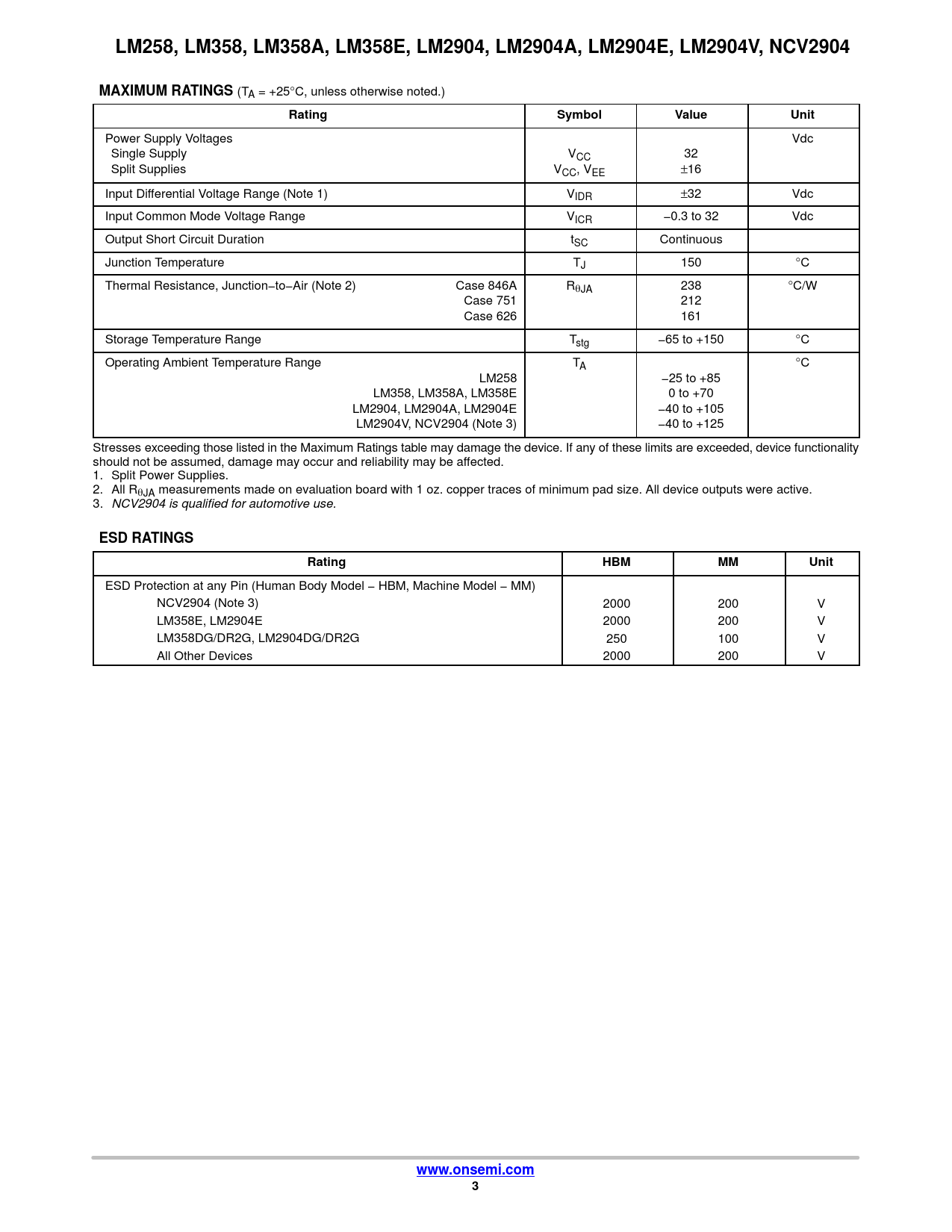

LM258, LM358, LM358A, LM358E, LM2904, LM2904A, LM2904E, LM2904V, NCV2904 MAXIMUM RATINGS
(TA = +25°C, unless otherwise noted.)
Rating Symbol Value Unit
Power Supply Voltages Vdc Single Supply VCC 32 Split Supplies VCC, VEE ±16 Input Differential Voltage Range (Note 1) VIDR ±32 Vdc Input Common Mode Voltage Range VICR −0.3 to 32 Vdc Output Short Circuit Duration tSC Continuous Junction Temperature TJ 150 °C Thermal Resistance, Junction−to−Air (Note 2) Case 846A RJA 238 °C/W Case 751 212 Case 626 161 Storage Temperature Range Tstg −65 to +150 °C Operating Ambient Temperature Range TA °C LM258 −25 to +85 LM358, LM358A, LM358E 0 to +70 LM2904, LM2904A, LM2904E −40 to +105 LM2904V, NCV2904 (Note 3) −40 to +125 Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. Split Power Supplies. 2. All RJA measurements made on evaluation board with 1 oz. copper traces of minimum pad size. All device outputs were active. 3. NCV2904 is qualified for automotive use.
ESD RATINGS Rating HBM MM Unit
ESD Protection at any Pin (Human Body Model − HBM, Machine Model − MM) NCV2904 (Note 3) 2000 200 V LM358E, LM2904E 2000 200 V LM358DG/DR2G, LM2904DG/DR2G 250 100 V All Other Devices 2000 200 V
www.onsemi.com 3
LM258, LM358, LM358A, LM358E, LM2904, LM2904A, LM2904E, LM2904V, NCV2904 MAXIMUM RATINGS
(TA = +25°C, unless otherwise noted.)
Rating Symbol Value Unit
Power Supply Voltages Vdc Single Supply VCC 32 Split Supplies VCC, VEE ±16 Input Differential Voltage Range (Note 1) VIDR ±32 Vdc Input Common Mode Voltage Range VICR −0.3 to 32 Vdc Output Short Circuit Duration tSC Continuous Junction Temperature TJ 150 °C Thermal Resistance, Junction−to−Air (Note 2) Case 846A RJA 238 °C/W Case 751 212 Case 626 161 Storage Temperature Range Tstg −65 to +150 °C Operating Ambient Temperature Range TA °C LM258 −25 to +85 LM358, LM358A, LM358E 0 to +70 LM2904, LM2904A, LM2904E −40 to +105 LM2904V, NCV2904 (Note 3) −40 to +125 Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may occur and reliability may be affected. 1. Split Power Supplies. 2. All RJA measurements made on evaluation board with 1 oz. copper traces of minimum pad size. All device outputs were active. 3. NCV2904 is qualified for automotive use.
ESD RATINGS Rating HBM MM Unit
ESD Protection at any Pin (Human Body Model − HBM, Machine Model − MM) NCV2904 (Note 3) 2000 200 V LM358E, LM2904E 2000 200 V LM358DG/DR2G, LM2904DG/DR2G 250 100 V All Other Devices 2000 200 V
www.onsemi.com 3
