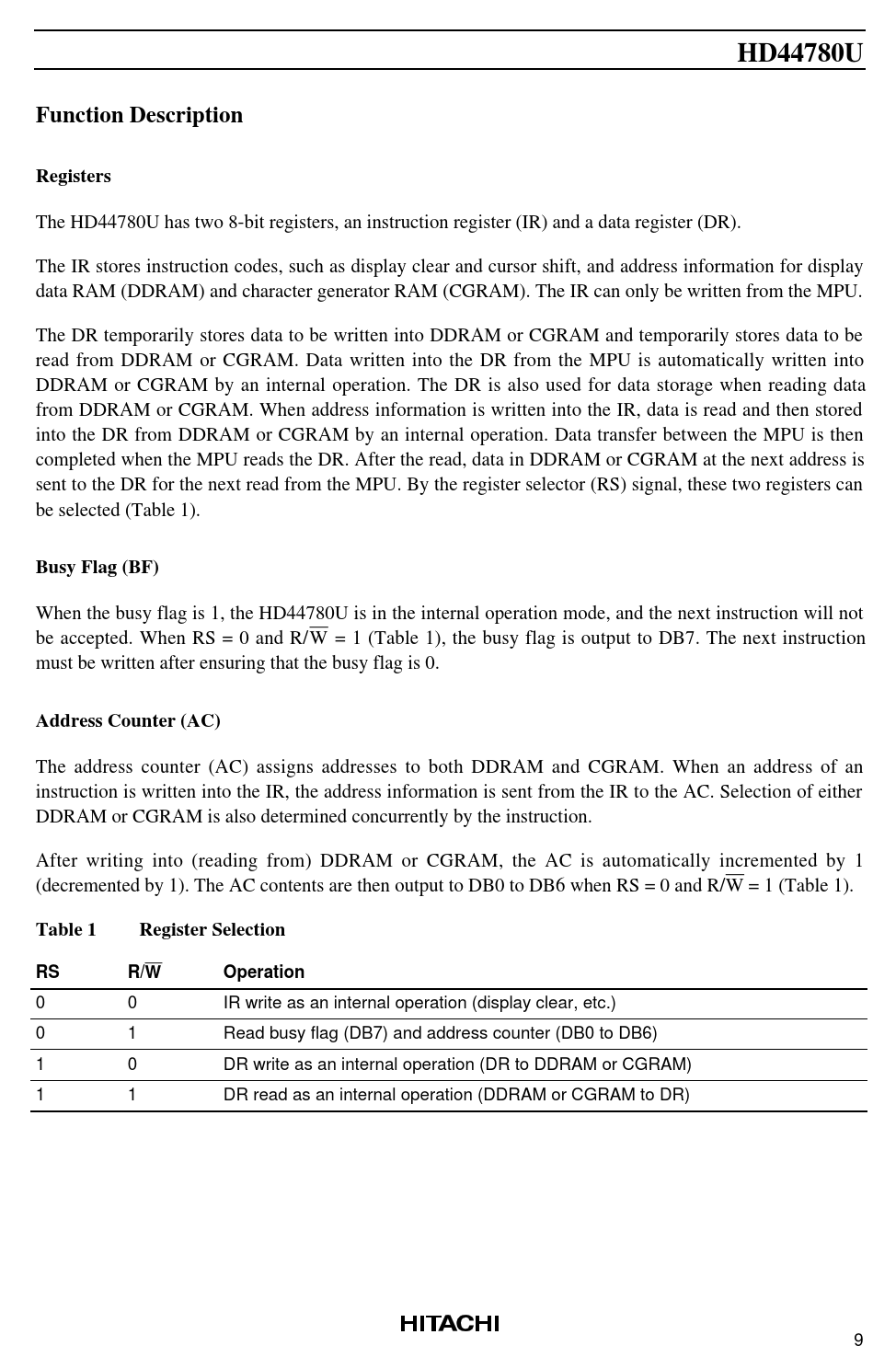

HD44780U Function Description Registers
The HD44780U has two 8-bit registers, an instruction register (IR) and a data register (DR). The IR stores instruction codes, such as display clear and cursor shift, and address information for display data RAM (DDRAM) and character generator RAM (CGRAM). The IR can only be written from the MPU. The DR temporarily stores data to be written into DDRAM or CGRAM and temporarily stores data to be read from DDRAM or CGRAM. Data written into the DR from the MPU is automatically written into DDRAM or CGRAM by an internal operation. The DR is also used for data storage when reading data from DDRAM or CGRAM. When address information is written into the IR, data is read and then stored into the DR from DDRAM or CGRAM by an internal operation. Data transfer between the MPU is then completed when the MPU reads the DR. After the read, data in DDRAM or CGRAM at the next address is sent to the DR for the next read from the MPU. By the register selector (RS) signal, these two registers can be selected (Table 1).
Busy Flag (BF)
When the busy flag is 1, the HD44780U is in the internal operation mode, and the next instruction will not be accepted. When RS = 0 and R/W = 1 (Table 1), the busy flag is output to DB7. The next instruction must be written after ensuring that the busy flag is 0.
Address Counter (AC)
The address counter (AC) assigns addresses to both DDRAM and CGRAM. When an address of an instruction is written into the IR, the address information is sent from the IR to the AC. Selection of either DDRAM or CGRAM is also determined concurrently by the instruction. After writing into (reading from) DDRAM or CGRAM, the AC is automatically incremented by 1 (decremented by 1). The AC contents are then output to DB0 to DB6 when RS = 0 and R/W = 1 (Table 1).
Table 1 Register Selection RS R/W Operation
0 0 IR write as an internal operation (display clear, etc.) 0 1 Read busy flag (DB7) and address counter (DB0 to DB6) 1 0 DR write as an internal operation (DR to DDRAM or CGRAM) 1 1 DR read as an internal operation (DDRAM or CGRAM to DR) 9 Document Outline Description Features Ordering Information HD44780U Block Diagram HD44780U Pin Arrangement (FP-80B) HD44780U Pin Arrangement (TFP-80F) HD44780U Pad Arrangement HD44780U Pad Location Coordinates Pin Functions Function Description Interfacing to the MPU Reset Function Instructions Instruction Description Interfacing the HD44780U Power Supply for Liquid Crystal Display Drive Relationship between Oscillation Frequency and Liquid Crystal Display Frame Frequency Instruction and Display Correspondence Initializing by Instruction Absolute Maximum Ratings DC Characteristics AC Characteristics Bus Timing Characteristics Interface Timing Characteristics with External Driver Power Supply Conditions Using Internal Reset Circuit DC Characteristics AC Characteristics Bus Timing Characteristics Interface Timing Characteristics with External Driver Power Supply Conditions Using Internal Reset Circuit Electrical Characteristics Notes Load Circuits Timing Characteristics
