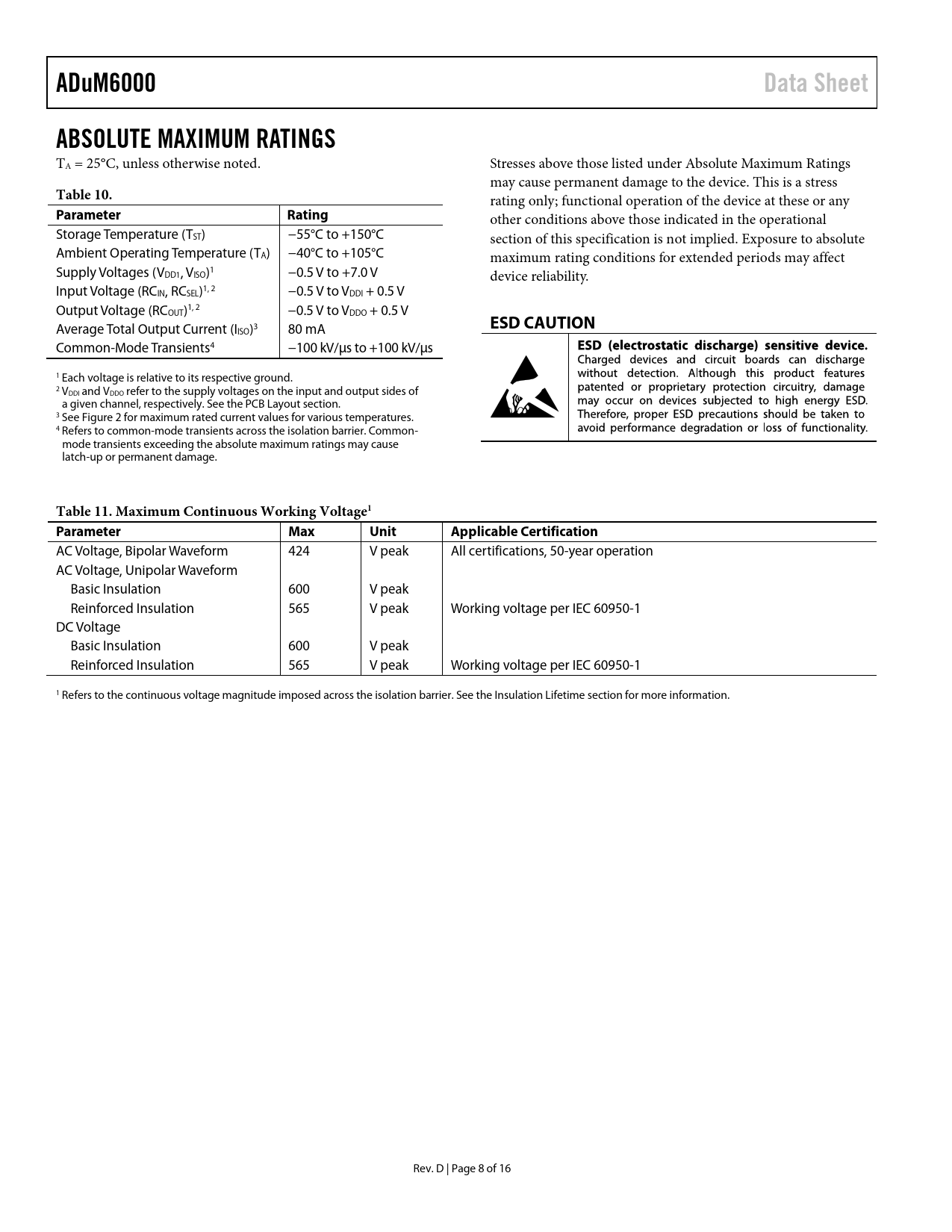

ADuM6000 Data Sheet ABSOLUTE MAXIMUM RATINGS
TA = 25°C, unless otherwise noted. Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress
Table 10.
rating only; functional operation of the device at these or any
Parameter Rating
other conditions above those indicated in the operational Storage Temperature (TST) −55°C to +150°C section of this specification is not implied. Exposure to absolute Ambient Operating Temperature (TA) −40°C to +105°C maximum rating conditions for extended periods may affect Supply Voltages (VDD1, VISO)1 −0.5 V to +7.0 V device reliability. Input Voltage (RCIN, RCSEL)1, 2 −0.5 V to VDDI + 0.5 V Output Voltage (RCOUT)1, 2 −0.5 V to VDDO + 0.5 V Average Total Output Current (I
ESD CAUTION
ISO)3 80 mA Common-Mode Transients4 −100 kV/µs to +100 kV/µs 1 Each voltage is relative to its respective ground. 2 VDDI and VDDO refer to the supply voltages on the input and output sides of a given channel, respectively. See the PCB Layout section. 3 See Figure 2 for maximum rated current values for various temperatures. 4 Refers to common-mode transients across the isolation barrier. Common- mode transients exceeding the absolute maximum ratings may cause latch-up or permanent damage.
Table 11. Maximum Continuous Working Voltage1 Parameter Max Unit Applicable Certification
AC Voltage, Bipolar Waveform 424 V peak All certifications, 50-year operation AC Voltage, Unipolar Waveform Basic Insulation 600 V peak Reinforced Insulation 565 V peak Working voltage per IEC 60950-1 DC Voltage Basic Insulation 600 V peak Reinforced Insulation 565 V peak Working voltage per IEC 60950-1 1 Refers to the continuous voltage magnitude imposed across the isolation barrier. See the Insulation Lifetime section for more information. Rev. D | Page 8 of 16 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Electrical Characteristics—5 V Primary Input Supply/5 V Secondary Isolated Supply Electrical Characteristics—3.3 V Primary Input Supply/3.3 V Secondary Isolated Supply Electrical Characteristics—5 V Primary Input Supply/3.3 V Secondary Isolated Supply Package Characteristics Regulatory Information Insulation and Safety-Related Specifications DIN V VDE V 0884-10 (VDE V 0884-10) and IEC 60747-5-2 (VDE 0884 Part 2):2003-01 Insulation Characteristics Thermal Derating Curve Recommended Operating Conditions Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Applications Information PCB Layout Start-Up Behavior EMI Considerations Thermal Analysis Current Limit and Thermal Overload Protection Power Considerations Increasing Available Power Insulation Lifetime Outline Dimensions Ordering Guide
