Datasheet SMIH (Songle Relay) - 2
| Fabricante | Songle Relay |
| Descripción | Subminature High Power Relay 16A |
| Páginas / Página | 2 / 2 — SMIH. Series. SUBMINATURE. HIGH. POWER. RELAY. 16A. Safety. Approval. … |
| Formato / tamaño de archivo | PDF / 3.7 Mb |
| Idioma del documento | Inglés |
SMIH. Series. SUBMINATURE. HIGH. POWER. RELAY. 16A. Safety. Approval. Ratings. R50056114. C. US. E167996. 3A. 250VAC. inductive. TV-5. 120VAC. inductive. 16A
Línea de modelo para esta hoja de datos
- SMIH-05VDC-FD-A SMIH-05VDC-FD-B SMIH-05VDC-FD-C SMIH-05VDC-FL-A SMIH-05VDC-FL-B SMIH-05VDC-FL-C SMIH-05VDC-SD-A SMIH-05VDC-SD-B SMIH-05VDC-SD-C SMIH-05VDC-SL-A SMIH-05VDC-SL-B SMIH-05VDC-SL-C SMIH-06VDC-FD-A SMIH-06VDC-FD-B SMIH-06VDC-FD-C SMIH-06VDC-FL-A SMIH-06VDC-FL-B SMIH-06VDC-FL-C SMIH-06VDC-SD-A SMIH-06VDC-SD-B SMIH-06VDC-SD-C SMIH-06VDC-SL-A SMIH-06VDC-SL-B SMIH-06VDC-SL-C SMIH-09VDC-FD-A SMIH-09VDC-FD-B SMIH-09VDC-FD-C SMIH-09VDC-FL-A SMIH-09VDC-FL-B SMIH-09VDC-FL-C SMIH-09VDC-SD-A SMIH-09VDC-SD-B SMIH-09VDC-SD-C SMIH-09VDC-SL-A SMIH-09VDC-SL-B SMIH-09VDC-SL-C SMIH-12VDC-FD-A SMIH-12VDC-FD-B SMIH-12VDC-FD-C SMIH-12VDC-FL-A SMIH-12VDC-FL-B SMIH-12VDC-FL-C SMIH-12VDC-SD-A SMIH-12VDC-SD-B SMIH-12VDC-SD-C SMIH-12VDC-SL-A SMIH-12VDC-SL-B SMIH-12VDC-SL-C SMIH-18VDC-FD-A SMIH-18VDC-FD-B SMIH-18VDC-FD-C SMIH-18VDC-FL-A SMIH-18VDC-FL-B SMIH-18VDC-FL-C SMIH-18VDC-SD-A SMIH-18VDC-SD-B SMIH-18VDC-SD-C SMIH-18VDC-SL-A SMIH-18VDC-SL-B SMIH-18VDC-SL-C SMIH-24VDC-FD-A SMIH-24VDC-FD-B SMIH-24VDC-FD-C SMIH-24VDC-FL-A SMIH-24VDC-FL-B SMIH-24VDC-FL-C SMIH-24VDC-SD-A SMIH-24VDC-SD-B SMIH-24VDC-SD-C SMIH-24VDC-SL-A SMIH-24VDC-SL-B SMIH-24VDC-SL-C SMIH-36VDC-FD-A SMIH-36VDC-FD-B SMIH-36VDC-FD-C SMIH-36VDC-FL-A SMIH-36VDC-FL-B SMIH-36VDC-FL-C SMIH-36VDC-SD-A SMIH-36VDC-SD-B SMIH-36VDC-SD-C SMIH-36VDC-SL-A SMIH-36VDC-SL-B SMIH-36VDC-SL-C SMIH-48VDC-FD-A SMIH-48VDC-FD-B SMIH-48VDC-FD-C SMIH-48VDC-FL-A SMIH-48VDC-FL-B SMIH-48VDC-FL-C SMIH-48VDC-SD-A SMIH-48VDC-SD-B SMIH-48VDC-SD-C SMIH-48VDC-SL-A SMIH-48VDC-SL-B SMIH-48VDC-SL-C
Versión de texto del documento

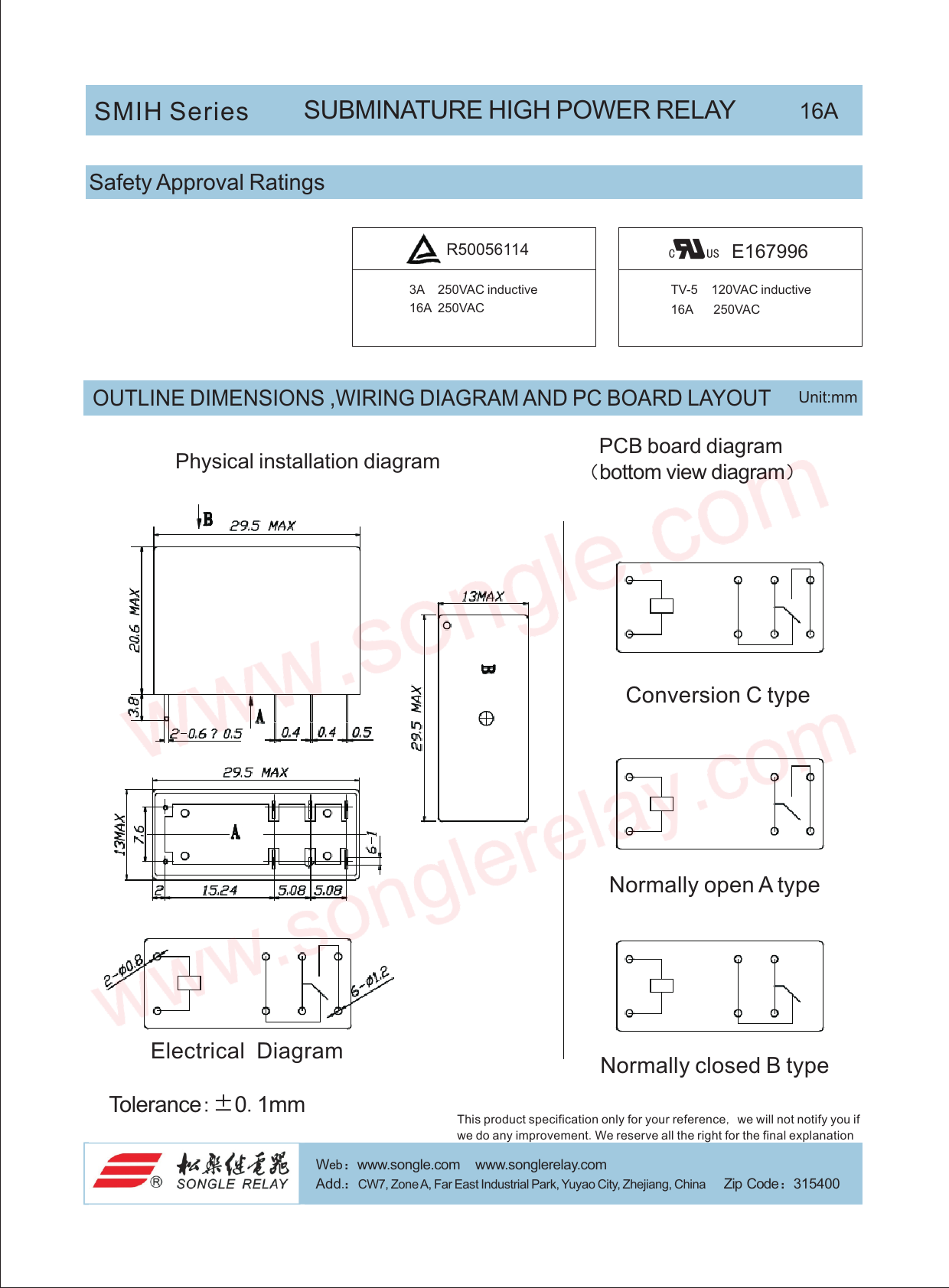

SMIH Series SUBMINATURE HIGH POWER RELAY 16A Safety Approval Ratings R50056114 C US E167996 3A 250VAC inductive TV-5 120VAC inductive 16A 250VAC 16A 250VAC OUTLINE DIMENSIONS ,WIRING DIAGRAM AND PC BOARD LAYOUT Unit:mm PCB board diagram Physical installation diagram （bottom view diagram） Conversion C type Normally open A type Electrical Diagram Normally closed B type Tolerance:±0.1mm This product specification only for your reference, we will not notify you if we do any improvement.We reserve all the right for the final explanation Web：www.songle.com www.songlerelay.com Email:sale@songle.com Web：www.songle.com www.songlerelay.com Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China i Z p Code：315400 Add.：CW7, Zone A, Far East Industrial Park, Yuyao City, Zhejiang, China Zip Code：315400 Tel.： +86 574 62717777 62762658 62721968 a F x：+86 574 62721978 Document Outline 页 1 页 2
