Datasheet ATmega163, ATmega163L - Summary (Atmel) - 10
| Fabricante | Atmel |
| Descripción | 8-bit AVR Microcontroller with 16K Bytes In-System Programmable Flash. Not Recommend for New Designs. Use ATmega16 |
| Páginas / Página | 18 / 10 — Instruction Set Summary (Continued). ATmega163(L) |
| Formato / tamaño de archivo | PDF / 324 Kb |
| Idioma del documento | Inglés |

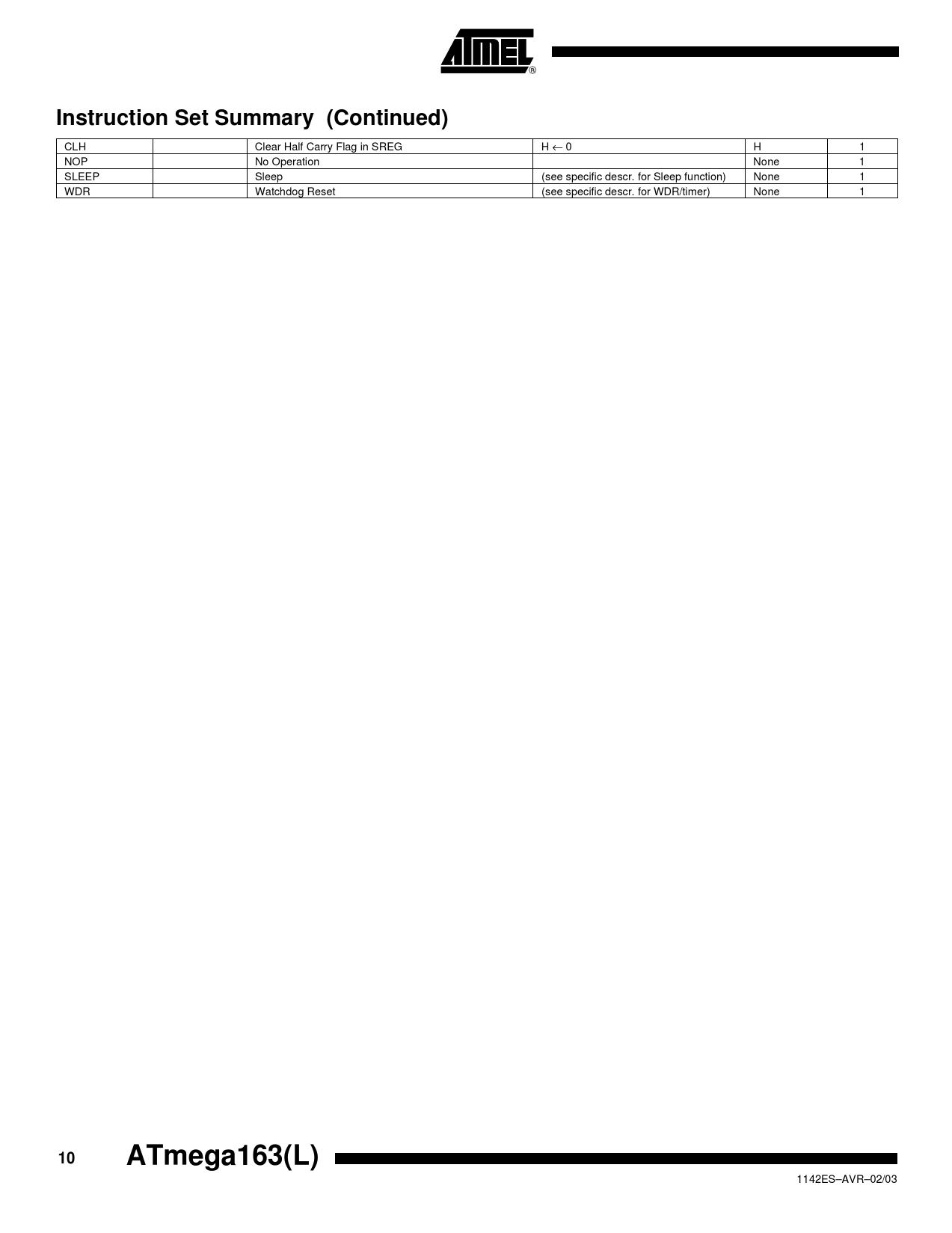

Instruction Set Summary (Continued). ATmega163(L)
Línea de modelo para esta hoja de datos
Versión de texto del documento
Instruction Set Summary (Continued)
CLH Clear Half Carry Flag in SREG H ← 0 H 1 NOP No Operation None 1 SLEEP Sleep (see specific descr. for Sleep function) None 1 WDR Watchdog Reset (see specific descr. for WDR/timer) None 1
10 ATmega163(L)
