Datasheet ATmega16M1, ATmega32M1, ATmega64M1 - Summary (Atmel) - 6
| Fabricante | Atmel |
| Descripción | 8-bit AVR Microcontroller |
| Páginas / Página | 18 / 6 — QFN32 pin. Mnemonic Type. Name, function, and alternate function. number |
| Formato / tamaño de archivo | PDF / 313 Kb |
| Idioma del documento | Inglés |
QFN32 pin. Mnemonic Type. Name, function, and alternate function. number
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 8 link to page 8 link to page 8

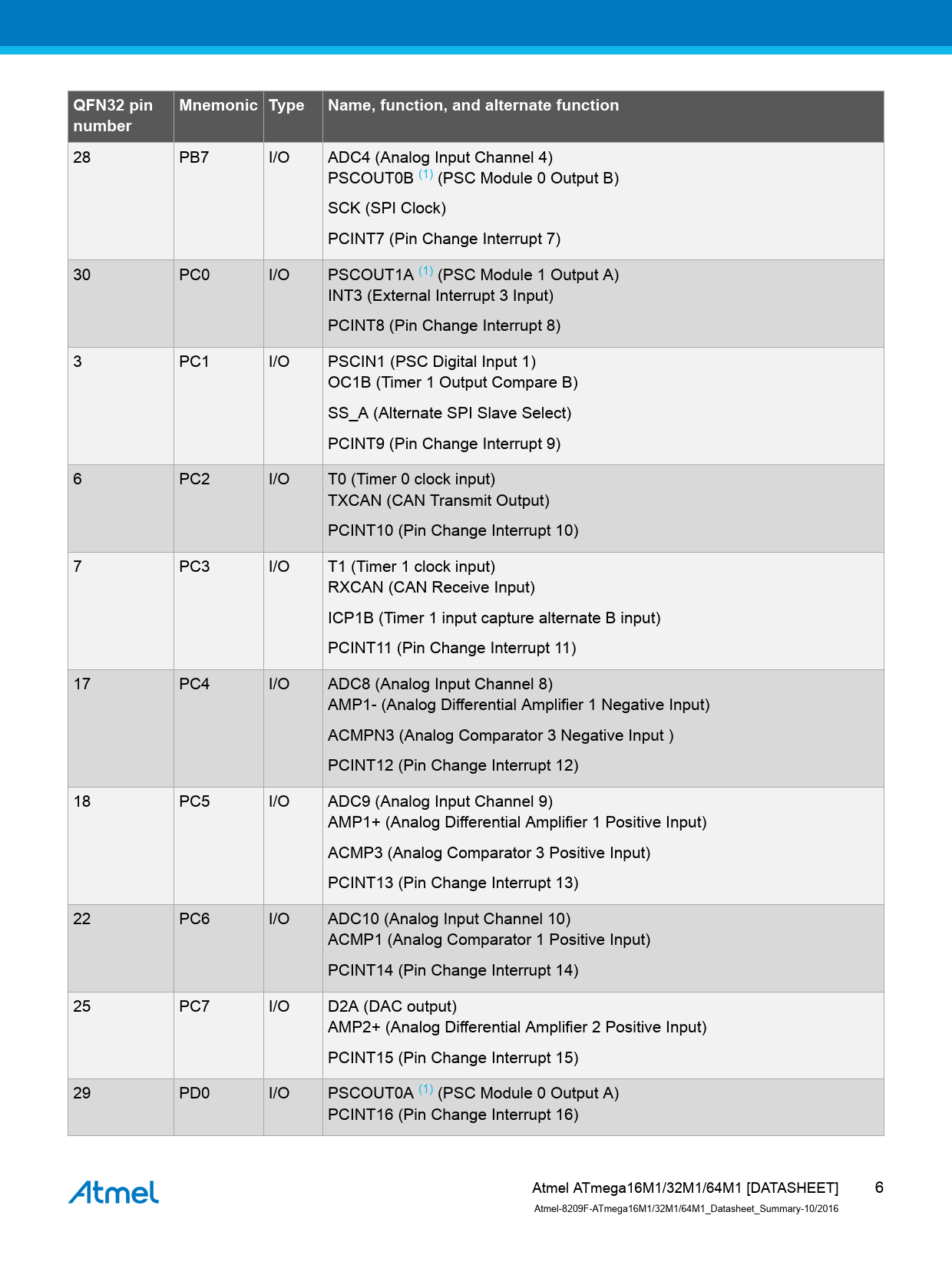

QFN32 pin Mnemonic Type Name, function, and alternate function number
28 PB7 I/O ADC4 (Analog Input Channel 4) PSCOUT0B (1) (PSC Module 0 Output B) SCK (SPI Clock) PCINT7 (Pin Change Interrupt 7) 30 PC0 I/O PSCOUT1A (1) (PSC Module 1 Output A) INT3 (External Interrupt 3 Input) PCINT8 (Pin Change Interrupt 8) 3 PC1 I/O PSCIN1 (PSC Digital Input 1) OC1B (Timer 1 Output Compare B) SS_A (Alternate SPI Slave Select) PCINT9 (Pin Change Interrupt 9) 6 PC2 I/O T0 (Timer 0 clock input) TXCAN (CAN Transmit Output) PCINT10 (Pin Change Interrupt 10) 7 PC3 I/O T1 (Timer 1 clock input) RXCAN (CAN Receive Input) ICP1B (Timer 1 input capture alternate B input) PCINT11 (Pin Change Interrupt 11) 17 PC4 I/O ADC8 (Analog Input Channel 8) AMP1- (Analog Differential Amplifier 1 Negative Input) ACMPN3 (Analog Comparator 3 Negative Input ) PCINT12 (Pin Change Interrupt 12) 18 PC5 I/O ADC9 (Analog Input Channel 9) AMP1+ (Analog Differential Amplifier 1 Positive Input) ACMP3 (Analog Comparator 3 Positive Input) PCINT13 (Pin Change Interrupt 13) 22 PC6 I/O ADC10 (Analog Input Channel 10) ACMP1 (Analog Comparator 1 Positive Input) PCINT14 (Pin Change Interrupt 14) 25 PC7 I/O D2A (DAC output) AMP2+ (Analog Differential Amplifier 2 Positive Input) PCINT15 (Pin Change Interrupt 15) 29 PD0 I/O PSCOUT0A (1) (PSC Module 0 Output A) PCINT16 (Pin Change Interrupt 16) Atmel ATmega16M1/32M1/64M1 [DATASHEET] 6 Atmel-8209F-ATmega16M1/32M1/64M1_Datasheet_Summary-10/2016 Document Outline Introduction Features Table of Contents 1. Pin configurations 1.1. Pin descriptions 2. Ordering Information 2.1. ATmega16M1 2.2. ATmega32M1 2.3. ATmega64M1 3. Overview 3.1. Block diagram 3.2. Pin descriptions 3.2.1. VCC 3.2.2. GND 3.2.3. Port B (PB7..PB0) 3.2.4. Port C (PC7..PC0) 3.2.5. Port D (PD7..PD0) 3.2.6. Port E (PE2..0) RESET/ XTAL1/XTAL2 3.2.7. AVCC 3.2.8. AREF 4. Resources 5. About code examples 6. Data retention 7. Packaging Information 7.1. 32-pin 32A 7.2. PV 32 QFN
