Datasheet ATtiny2313A, ATtiny4313 (Atmel) - 4

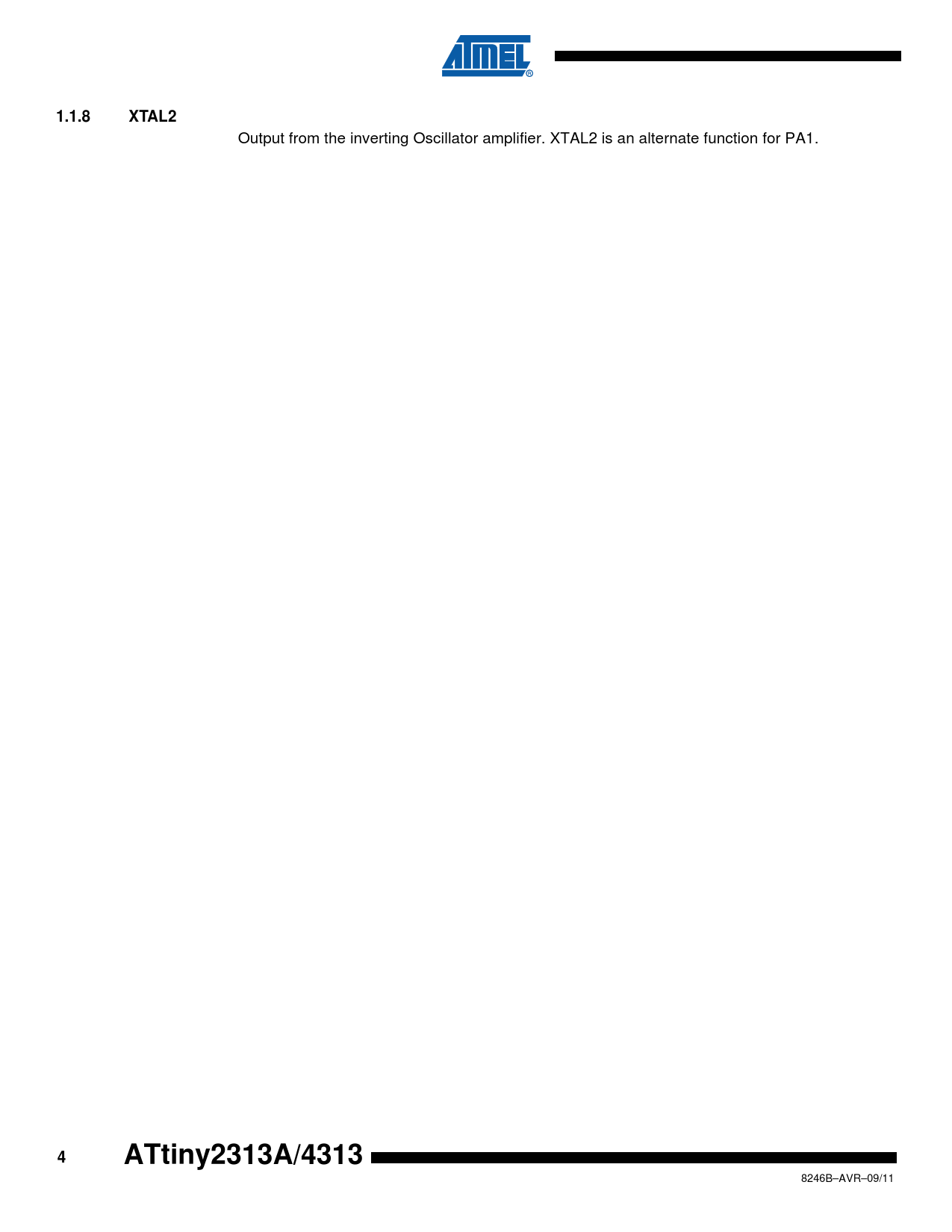

1.1.8 XTAL2
Output from the inverting Oscillator amplifier. XTAL2 is an alternate function for PA1.
4 ATtiny2313A/4313
