Datasheet LTC3873 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | No RSENSE Constant Frequency Current Mode Boost/Flyback/SEPIC DC/DC Controller |
| Páginas / Página | 18 / 5 — TYPICAL PERFORMANCE CHARACTERISTICS. Maximum Sense Threshold. Frequency … |
| Formato / tamaño de archivo | PDF / 267 Kb |
| Idioma del documento | Inglés |

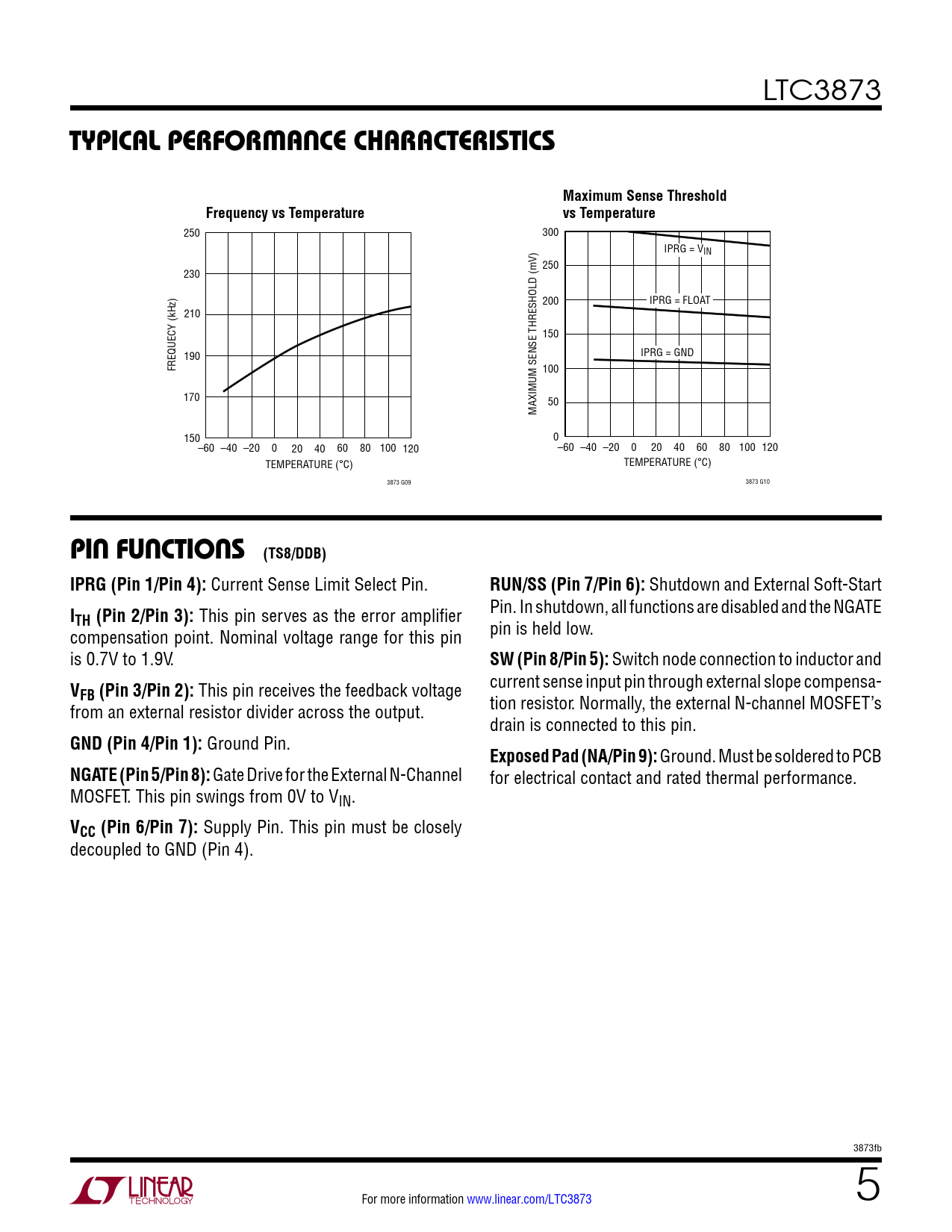

TYPICAL PERFORMANCE CHARACTERISTICS. Maximum Sense Threshold. Frequency vs Temperature. vs Temperature
Línea de modelo para esta hoja de datos
Versión de texto del documento
LTC3873
TYPICAL PERFORMANCE CHARACTERISTICS Maximum Sense Threshold Frequency vs Temperature vs Temperature
250 300 IPRG = VIN 250 230 200 IPRG = FLOAT 210 150 190 IPRG = GND FREQUECY (kHz) 100 170 50 MAXIMUM SENSE THRESHOLD (mV) 150 0 –60 –40 –20 0 20 40 60 80 100 120 –60 –40 –20 0 20 40 60 80 100 120 TEMPERATURE (°C) TEMPERATURE (°C) 3873 G09 3873 G10
PIN FUNCTIONS (TS8/DDB) IPRG (Pin 1/Pin 4):
Current Sense Limit Select Pin.
RUN/SS (Pin 7/Pin 6):
Shutdown and External Soft-Start
I
Pin. In shutdown, all functions are disabled and the NGATE
TH (Pin 2/Pin 3):
This pin serves as the error amplifier compensation point. Nominal voltage range for this pin pin is held low. is 0.7V to 1.9V.
SW (Pin 8/Pin 5):
Switch node connection to inductor and
V
current sense input pin through external slope compensa-
FB (Pin 3/Pin 2):
This pin receives the feedback voltage from an external resistor divider across the output. tion resistor. Normally, the external N-channel MOSFET’s drain is connected to this pin.
GND (Pin 4/Pin 1):
Ground Pin.
Exposed Pad (NA/Pin 9):
Ground. Must be soldered to PCB
NGATE (Pin 5/Pin 8):
Gate Drive for the External N-Channel for electrical contact and rated thermal performance. MOSFET. This pin swings from 0V to VIN.
VCC (Pin 6/Pin 7):
Supply Pin. This pin must be closely decoupled to GND (Pin 4). 3873fb For more information www.linear.com/LTC3873 5
