FEATURES. DESCRIPTION. 3V to 40V Input Voltage Range. 2.5A, 60V Integrated NPN Power Switch. Boundary Mode Operation

Datasheet LT3575 Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

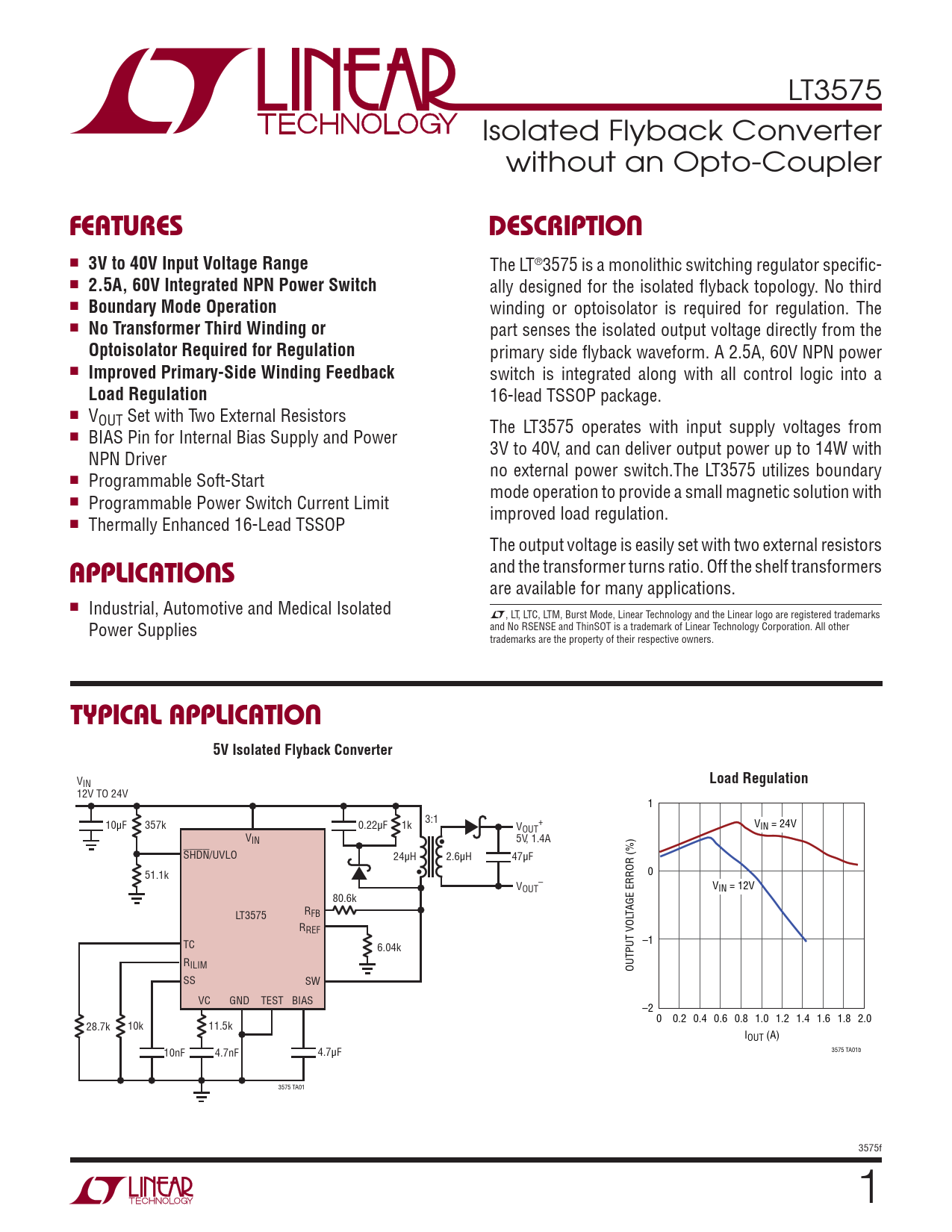

LT3575 Isolated Flyback Converter without an Opto-Coupler
FEATURES DESCRIPTION
n
3V to 40V Input Voltage Range
The LT®3575 is a monolithic switching regulator specifi c- n
2.5A, 60V Integrated NPN Power Switch
ally designed for the isolated fl yback topology. No third n
Boundary Mode Operation
winding or optoisolator is required for regulation. The n
No Transformer Third Winding or
part senses the isolated output voltage directly from the
Optoisolator Required for Regulation
primary side fl yback waveform. A 2.5A, 60V NPN power n
Improved Primary-Side Winding Feedback
switch is integrated along with all control logic into a
Load Regulation
16-lead TSSOP package. n VOUT Set with Two External Resistors The LT3575 operates with input supply voltages from n BIAS Pin for Internal Bias Supply and Power 3V to 40V, and can deliver output power up to 14W with NPN Driver no external power switch.The LT3575 utilizes boundary n Programmable Soft-Start mode operation to provide a small magnetic solution with n Programmable Power Switch Current Limit improved load regulation. n Thermally Enhanced 16-Lead TSSOP The output voltage is easily set with two external resistors
APPLICATIONS
and the transformer turns ratio. Off the shelf transformers are available for many applications. n Industrial, Automotive and Medical Isolated L, LT, LTC, LTM, Burst Mode, Linear Technology and the Linear logo are registered trademarks Power Supplies and No RSENSE and ThinSOT is a trademark of Linear Technology Corporation. All other trademarks are the property of their respective owners.
TYPICAL APPLICATION 5V Isolated Flyback Converter
V
Load Regulation
IN 12V TO 24V 1 3:1 10μF 357k 0.22μF 1k V + V OUT IN = 24V VIN 5V, 1.4A SHDN/UVLO 24μH 2.6μH 47μF 51.1k 0 V – OUT VIN = 12V 80.6k RFB LT3575 TAGE ERROR (%) RREF TC –1 6.04k RILIM OUTPUT VOL SS SW VC GND TEST BIAS –2 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 28.7k 10k 11.5k IOUT (A) 10nF 4.7nF 4.7μF 3575 TA01b 3575 TA01 3575f 1
