Datasheet LT8309 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | Secondary-Side Synchronous Rectifier Driver |
| Páginas / Página | 14 / 2 — absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion … |
| Formato / tamaño de archivo | PDF / 232 Kb |
| Idioma del documento | Inglés |
absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion LEAD FREE FINISH. TAPE AND REEL. PART MARKING*
Línea de modelo para esta hoja de datos
Versión de texto del documento

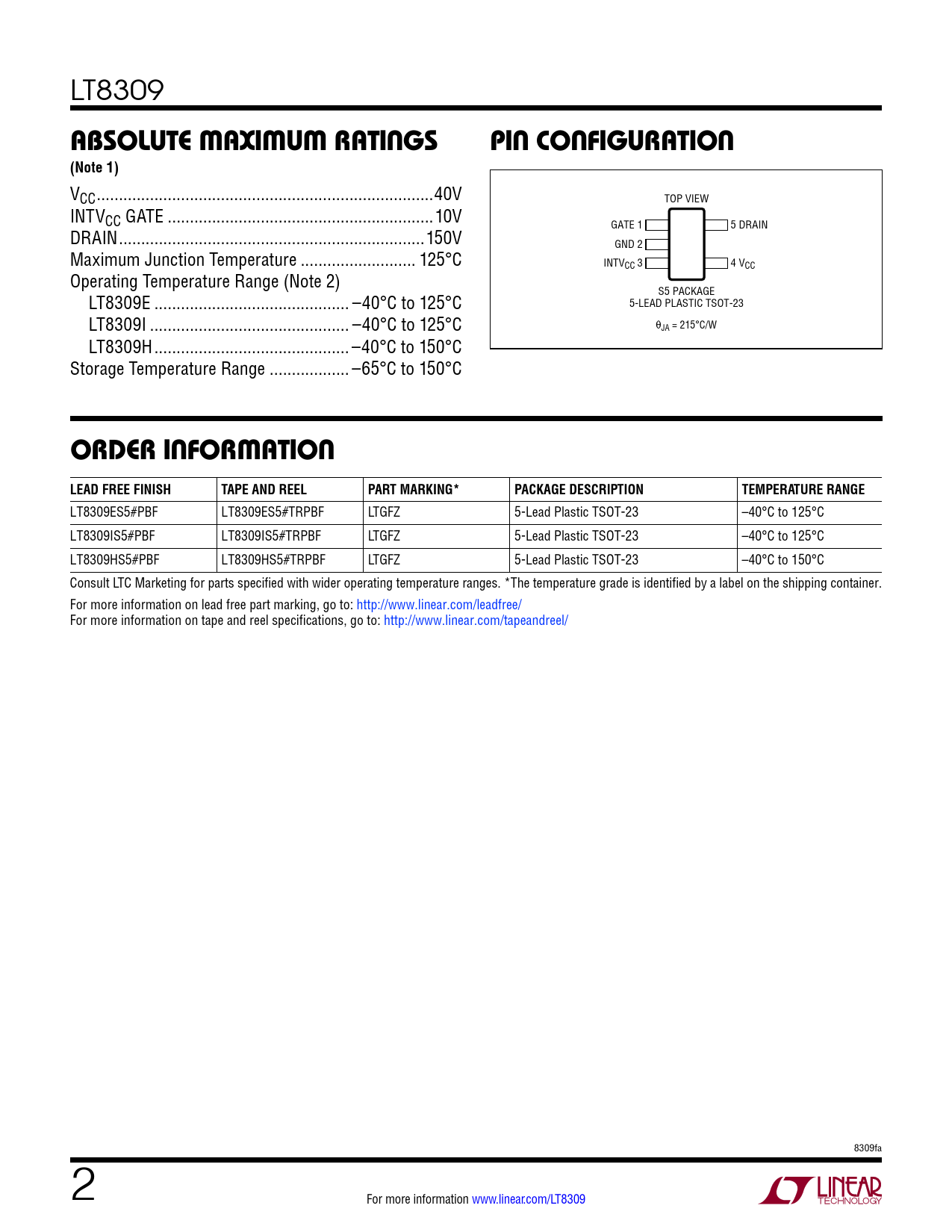

LT8309
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
VCC ..40V TOP VIEW INTVCC GATE ..10V GATE 1 5 DRAIN DRAIN ...150V GND 2 Maximum Junction Temperature .. 125°C INTVCC 3 4 VCC Operating Temperature Range (Note 2) S5 PACKAGE LT8309E .. –40°C to 125°C 5-LEAD PLASTIC TSOT-23 LT8309I ... –40°C to 125°C θJA = 215°C/W LT8309H .. –40°C to 150°C Storage Temperature Range .. –65°C to 150°C
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8309ES5#PBF LT8309ES5#TRPBF LTGFZ 5-Lead Plastic TSOT-23 –40°C to 125°C LT8309IS5#PBF LT8309IS5#TRPBF LTGFZ 5-Lead Plastic TSOT-23 –40°C to 125°C LT8309HS5#PBF LT8309HS5#TRPBF LTGFZ 5-Lead Plastic TSOT-23 –40°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 8309fa 2 For more information www.linear.com/LT8309
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
VCC ..40V TOP VIEW INTVCC GATE ..10V GATE 1 5 DRAIN DRAIN ...150V GND 2 Maximum Junction Temperature .. 125°C INTVCC 3 4 VCC Operating Temperature Range (Note 2) S5 PACKAGE LT8309E .. –40°C to 125°C 5-LEAD PLASTIC TSOT-23 LT8309I ... –40°C to 125°C θJA = 215°C/W LT8309H .. –40°C to 150°C Storage Temperature Range .. –65°C to 150°C
orDer inForMaTion LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8309ES5#PBF LT8309ES5#TRPBF LTGFZ 5-Lead Plastic TSOT-23 –40°C to 125°C LT8309IS5#PBF LT8309IS5#TRPBF LTGFZ 5-Lead Plastic TSOT-23 –40°C to 125°C LT8309HS5#PBF LT8309HS5#TRPBF LTGFZ 5-Lead Plastic TSOT-23 –40°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/ 8309fa 2 For more information www.linear.com/LT8309
