Datasheet LT8303 (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | 100VIN Micropower Isolated Flyback Converter with 150V/450mA Switch |
| Páginas / Página | 24 / 2 — absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion … |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |

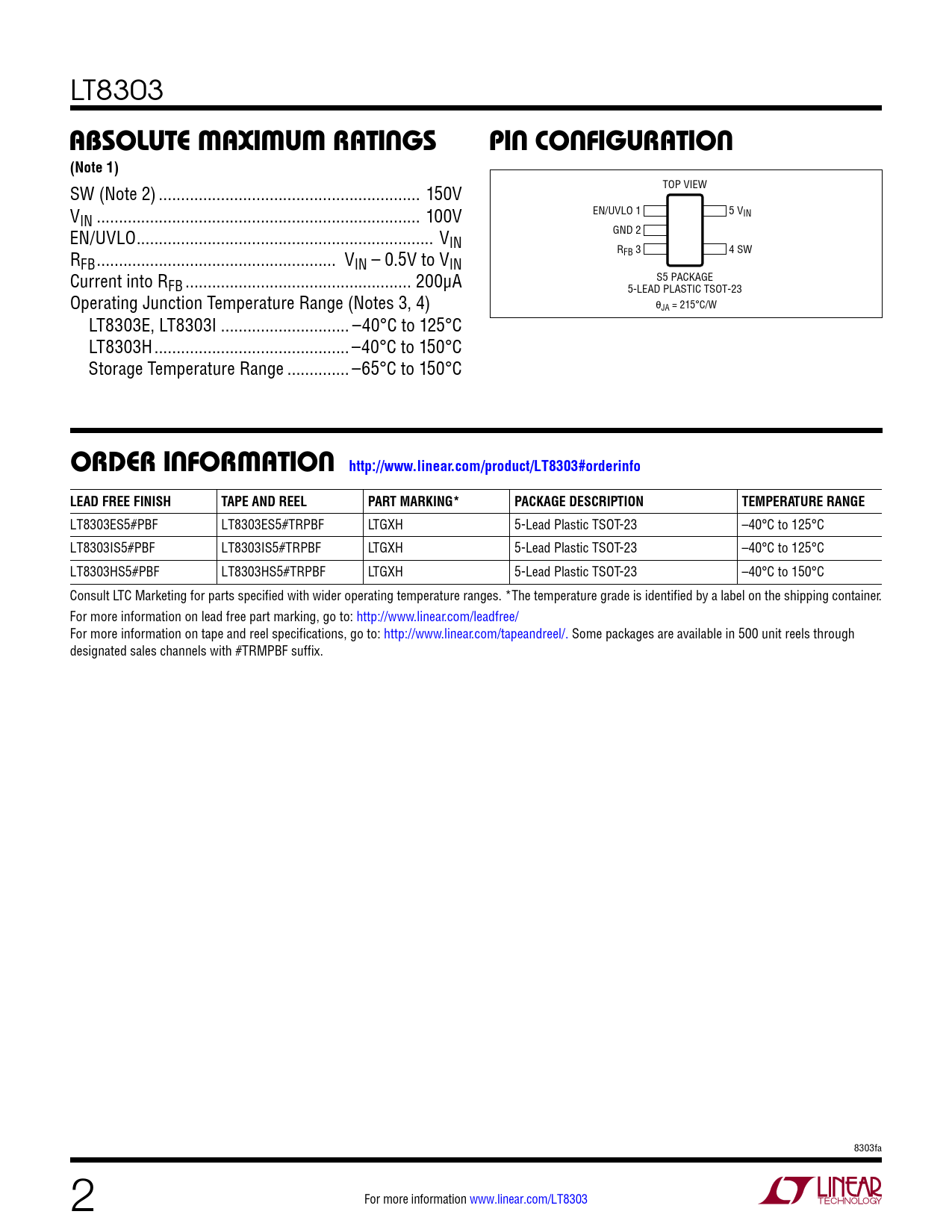

absoluTe MaxiMuM raTings. pin conFiguraTion. (Note 1). orDer inForMaTion http://www.linear.com/product/LT8303#orderinfo
Línea de modelo para esta hoja de datos
Versión de texto del documento
LT8303
absoluTe MaxiMuM raTings pin conFiguraTion (Note 1)
SW (Note 2) ... 150V TOP VIEW V EN/UVLO 1 5 V IN ... 100V IN EN/UVLO ... V GND 2 IN R RFB 3 4 SW FB .. VIN – 0.5V to VIN Current into RFB ... 200µA S5 PACKAGE 5-LEAD PLASTIC TSOT-23 Operating Junction Temperature Range (Notes 3, 4) θJA = 215°C/W LT8303E, LT8303I ... –40°C to 125°C LT8303H .. –40°C to 150°C Storage Temperature Range .. –65°C to 150°C
orDer inForMaTion http://www.linear.com/product/LT8303#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT8303ES5#PBF LT8303ES5#TRPBF LTGXH 5-Lead Plastic TSOT-23 –40°C to 125°C LT8303IS5#PBF LT8303IS5#TRPBF LTGXH 5-Lead Plastic TSOT-23 –40°C to 125°C LT8303HS5#PBF LT8303HS5#TRPBF LTGXH 5-Lead Plastic TSOT-23 –40°C to 150°C Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 8303fa 2 For more information www.linear.com/LT8303 Document Outline Features Applications Description Typical Application Absolute Maximum Ratings Pin Configuration Order Information Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Typical Application Related Parts
