Datasheet HMC361 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | GaAs HBT MMIC DIVIDE-BY-2, DC - 11 GHz |
| Páginas / Página | 6 / 1 — HMC361. GaAs HBT MMIC. DIVIDE-BY-2, DC - 11 GHz. Typical Applications. … |
| Formato / tamaño de archivo | PDF / 297 Kb |
| Idioma del documento | Inglés |
HMC361. GaAs HBT MMIC. DIVIDE-BY-2, DC - 11 GHz. Typical Applications. Features. Functional Diagram. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento

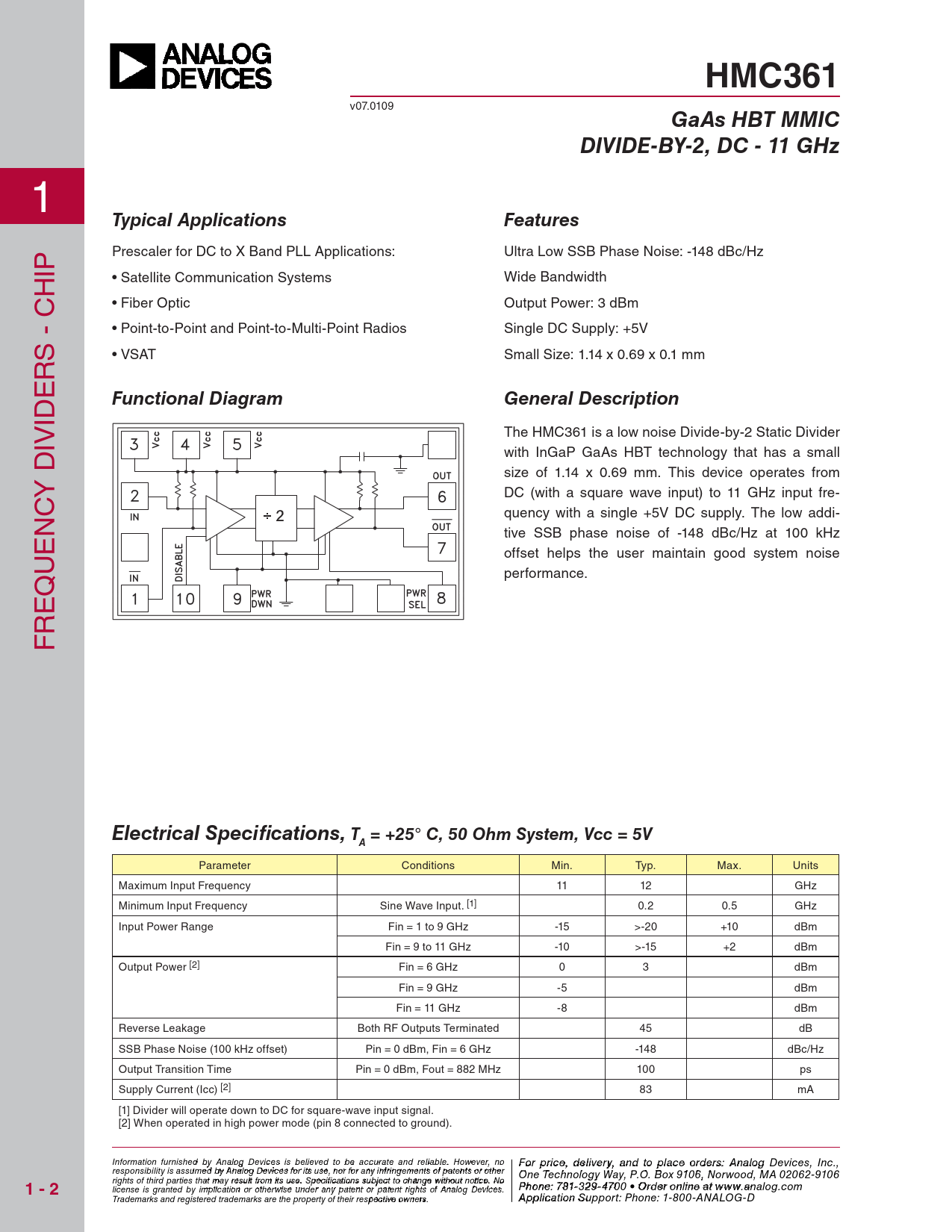

HMC361
v07.0109
GaAs HBT MMIC DIVIDE-BY-2, DC - 11 GHz
1
Typical Applications Features
Prescaler for DC to X Band PLL Applications: Ultra Low SSB Phase Noise: -148 dBc/Hz IP H • Satellite Communication Systems Wide Bandwidth • Fiber Optic Output Power: 3 dBm • Point-to-Point and Point-to-Multi-Point Radios Single DC Supply: +5V S - C • VSAT Small Size: 1.14 x 0.69 x 0.1 mm R E
Functional Diagram General Description
ID IV The HMC361 is a low noise Divide-by-2 Static Divider with InGaP GaAs HBT technology that has a small size of 1.14 x 0.69 mm. This device operates from Y D DC (with a square wave input) to 11 GHz input fre- quency with a single +5V DC supply. The low addi- NC tive SSB phase noise of -148 dBc/Hz at 100 kHz E offset helps the user maintain good system noise U performance. Q E R F
Electrical Specifi cations, T = +25° C, 50 Ohm System, Vcc = 5V A
Parameter Conditions Min. Typ. Max. Units Maximum Input Frequency 11 12 GHz Minimum Input Frequency Sine Wave Input. [1] 0.2 0.5 GHz Input Power Range Fin = 1 to 9 GHz -15 >-20 +10 dBm Fin = 9 to 11 GHz -10 >-15 +2 dBm Output Power [2] Fin = 6 GHz 0 3 dBm Fin = 9 GHz -5 dBm Fin = 11 GHz -8 dBm Reverse Leakage Both RF Outputs Terminated 45 dB SSB Phase Noise (100 kHz offset) Pin = 0 dBm, Fin = 6 GHz -148 dBc/Hz Output Transition Time Pin = 0 dBm, Fout = 882 MHz 100 ps Supply Current (Icc) [2] 83 mA [1] Divider will operate down to DC for square-wave input signal. [2] When operated in high power mode (pin 8 connected to ground). Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
1 - 2
20 Alpha Road, Chelmsford, MA 01824 Phone: 978 Phon - e 25 : 7 0 81--3 32 3 9 4 - 3 F 70 ax 0 • O : 978 rder on -li25 n 0 e a - t 33 ww 73 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On Trademarks and registered trademarks are the property of their respective owners. -line at www.h A it p tpite.co licatio m n Support: Phone: 1-800-ANALOG-D
