Datasheet HMC363 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | GaAs HBT MMIC DIVIDE-BY-8, DC - 12 GHz |
| Páginas / Página | 6 / 3 — HMC363. GaAs HBT MMIC. DIVIDE-BY-8, DC - 12 GHz. Output Voltage Waveform, … |
| Formato / tamaño de archivo | PDF / 313 Kb |
| Idioma del documento | Inglés |
HMC363. GaAs HBT MMIC. DIVIDE-BY-8, DC - 12 GHz. Output Voltage Waveform, Pin= 0 dBm, Fout= 882 MHz, T= 25 °C
Línea de modelo para esta hoja de datos
Versión de texto del documento

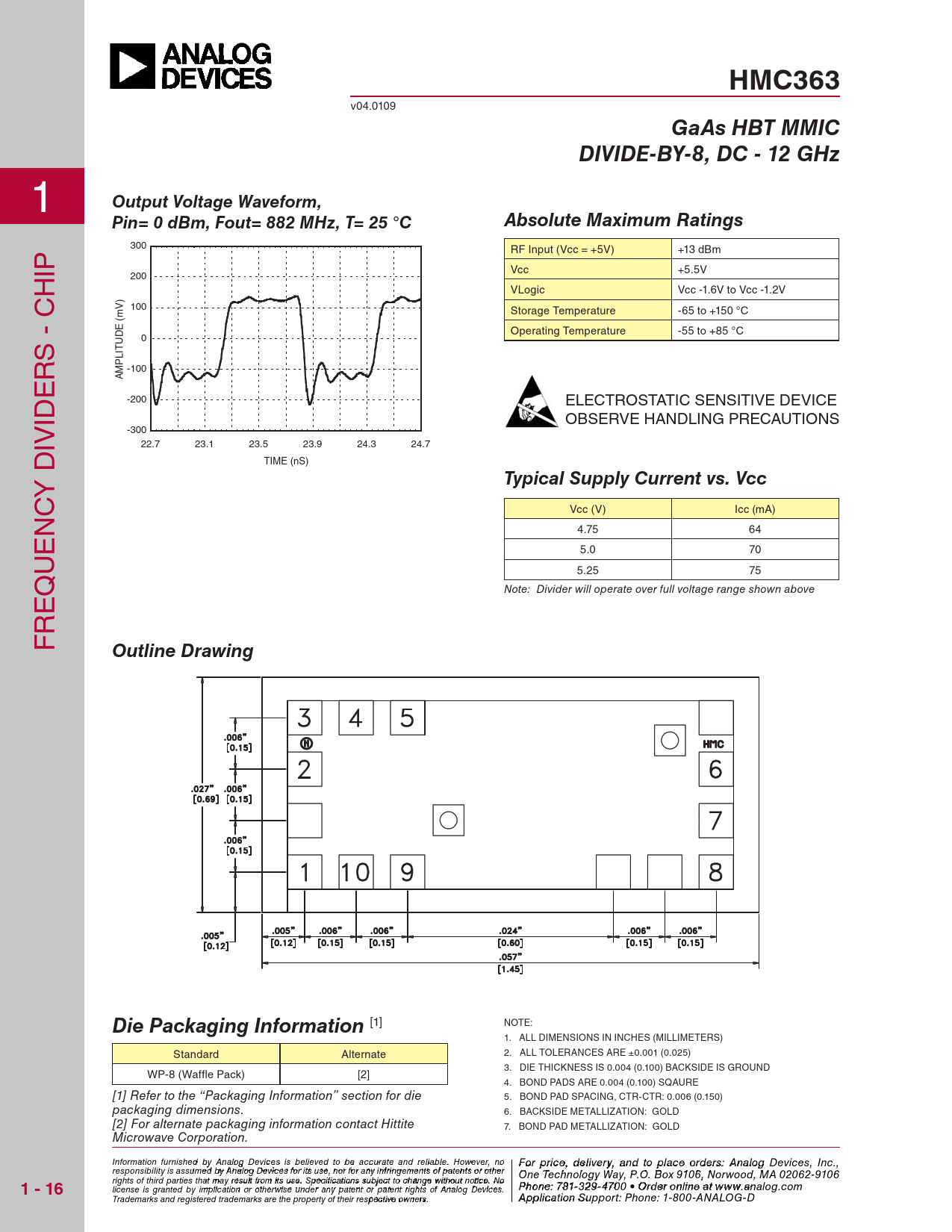

HMC363
v04.0109
GaAs HBT MMIC DIVIDE-BY-8, DC - 12 GHz
1
Output Voltage Waveform, Pin= 0 dBm, Fout= 882 MHz, T= 25 °C Absolute Maximum Ratings
300 RF Input (Vcc = +5V) +13 dBm IP Vcc +5.5V 200 H VLogic Vcc -1.6V to Vcc -1.2V 100 Storage Temperature -65 to +150 °C Operating Temperature -55 to +85 °C 0 S - C R -100 AMPLITUDE (mV) E -200 ELECTROSTATIC SENSITIVE DEVICE ID OBSERVE HANDLING PRECAUTIONS -300 IV 22.7 23.1 23.5 23.9 24.3 24.7 TIME (nS) Y D
Typical Supply Current vs. Vcc
Vcc (V) Icc (mA) NC 4.75 64 E 5.0 70 U 5.25 75 Q Note: Divider will operate over full voltage range shown above E R F
Outline Drawing
NOTE:
Die Packaging Information
[1] 1. ALL DIMENSIONS IN INCHES (MILLIMETERS) 2. ALL TOLERANCES ARE ±0.001 (0.025) Standard Alternate 3. DIE THICKNESS IS 0.004 (0.100) BACKSIDE IS GROUND WP-8 (Waffle Pack) [2] 4. BOND PADS ARE 0.004 (0.100) SQAURE [1] Refer to the “Packaging Information” section for die 5. BOND PAD SPACING, CTR-CTR: 0.006 (0.150) packaging dimensions. 6. BACKSIDE METALLIZATION: GOLD [2] For alternate packaging information contact Hittite 7. BOND PAD METALLIZATION: GOLD Microwave Corporation. Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
1 - 16
20 Alpha Road, Chelmsford, MA 01824 Phone: 978 Phon - e 25 : 7 0 81--3 32 3 9 4 - 3 F 70 ax 0 • O : 978 rder on -li25 n 0 e a - t 33 ww 73 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On Trademarks and registered trademarks are the property of their respective owners. -line at www.h A it p tpite.co licatio m n Support: Phone: 1-800-ANALOG-D
