Datasheet HMC432, 432E (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | SMT 4 SMT GaAs HBT MMIC DIVIDE-BY-2, DC - 8 GHz |
| Páginas / Página | 6 / 4 — HMC432 / 432E. SMT GaAs HBT MMIC. DIVIDE-BY-2, DC - 8 GHz. Outline … |
| Formato / tamaño de archivo | PDF / 357 Kb |
| Idioma del documento | Inglés |

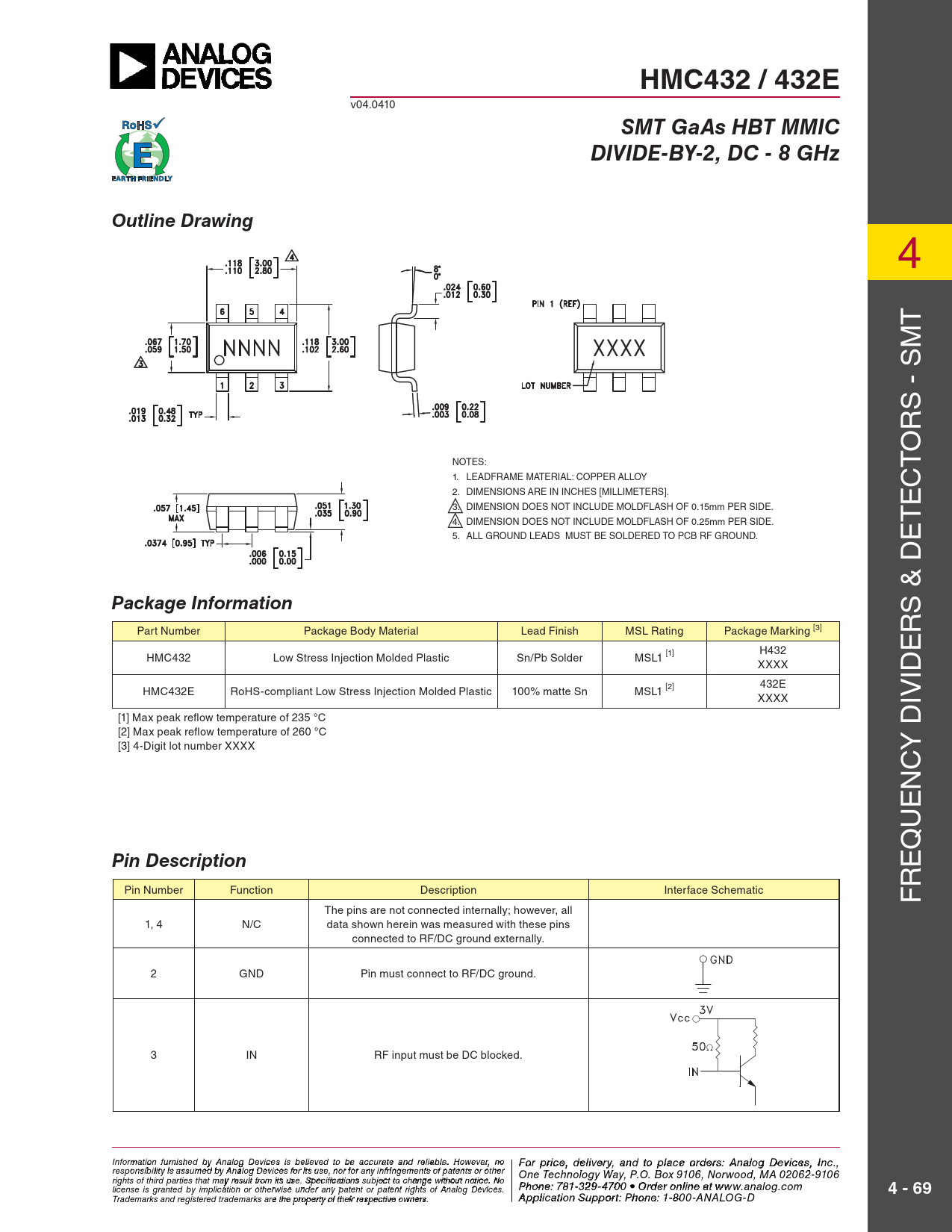

HMC432 / 432E. SMT GaAs HBT MMIC. DIVIDE-BY-2, DC - 8 GHz. Outline Drawing. Package Information. Pin Description. 4 - 69
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC432 / 432E
v04.0410
SMT GaAs HBT MMIC DIVIDE-BY-2, DC - 8 GHz Outline Drawing
4 T S - SM R O NOTES: T 1. LEADFRAME MATERIAL: COPPER ALLOY C 2. DIMENSIONS ARE IN INCHES [MILLIMETERS]. 3. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.15mm PER SIDE. E 4. DIMENSION DOES NOT INCLUDE MOLDFLASH OF 0.25mm PER SIDE. T 5. ALL GROUND LEADS MUST BE SOLDERED TO PCB RF GROUND. E & D
