HMC794LP3E
v01.0612

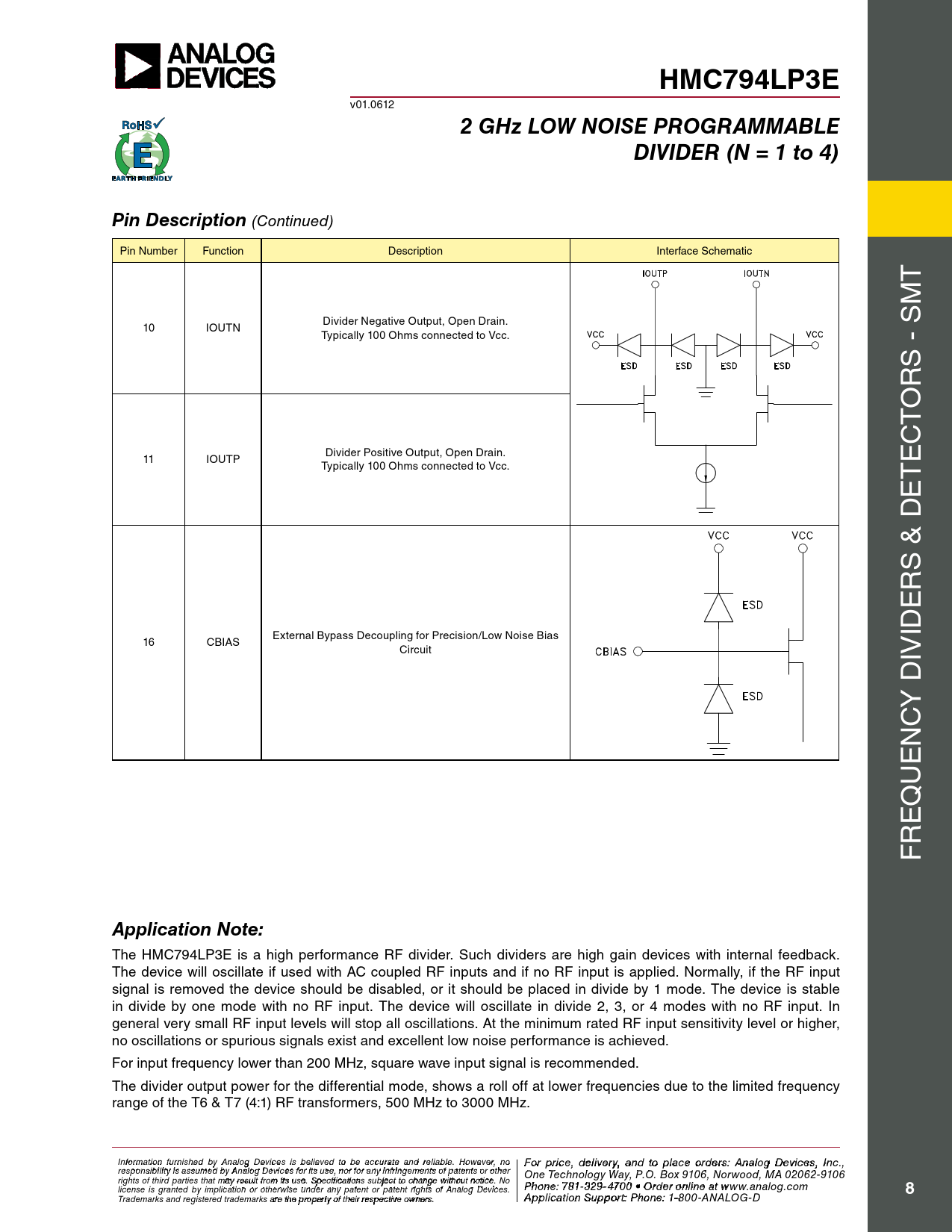

2 GHz LOW NOISE PROGRAMMABLE DIVIDER (N = 1 to 4) Pin Description
(Continued) Pin number Function Description interface schematic t M Divider negative output, open Drain. s 10 ioutn typically 100 ohms connected to vcc. s - r o t c Divider Positive output, open Drain. 11 ioutP e typically 100 ohms connected to vcc. t e s & D r e external Bypass Decoupling for Precision/Low noise Bias iD 16 cBiAs circuit iv y D c n e u q e r F
Application Note:
the HMc794LP3e is a high performance rF divider. such dividers are high gain devices with internal feedback. the device will oscil ate if used with Ac coupled rF inputs and if no rF input is applied. normal y, if the rF input signal is removed the device should be disabled, or it should be placed in divide by 1 mode. the device is stable in divide by one mode with no rF input. the device will oscil ate in divide 2, 3, or 4 modes with no rF input. in general very small rF input levels will stop all oscil ations. At the minimum rated rF input sensitivity level or higher, no oscil ations or spurious signals exist and excel ent low noise performance is achieved. For input frequency lower than 200 MHz, square wave input signal is recommended. the divider output power for the differential mode, shows a roll off at lower frequencies due to the limited frequency range of the t6 & t7 (4:1) rF transformers, 500 MHz to 3000 MHz. I F nf o or r p mati r o in cfe ur , d nish e e l d iv b e y r A y a nalo n g d t Devi o p ces i la s c bele o ieve rd d t e o rbs e : H acc iutrtatite e M and ic reli rao bl w e. a H v o e C wever o , nrp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Phoe n r O e: 7 n- 81-li 3 n 2 e a 9-4 t w 70 ww 0 • O . rdh e itt r o it nle i . n co e a m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com
8
Application Support: Phon Trademarks and registered trademarks are the property of their respective owners. e: 978-250-334 A 3 o pplic r a atio pp n S s u @ p h por ittti : Pte. ho c n o e m : 1-800-ANALOG-D
