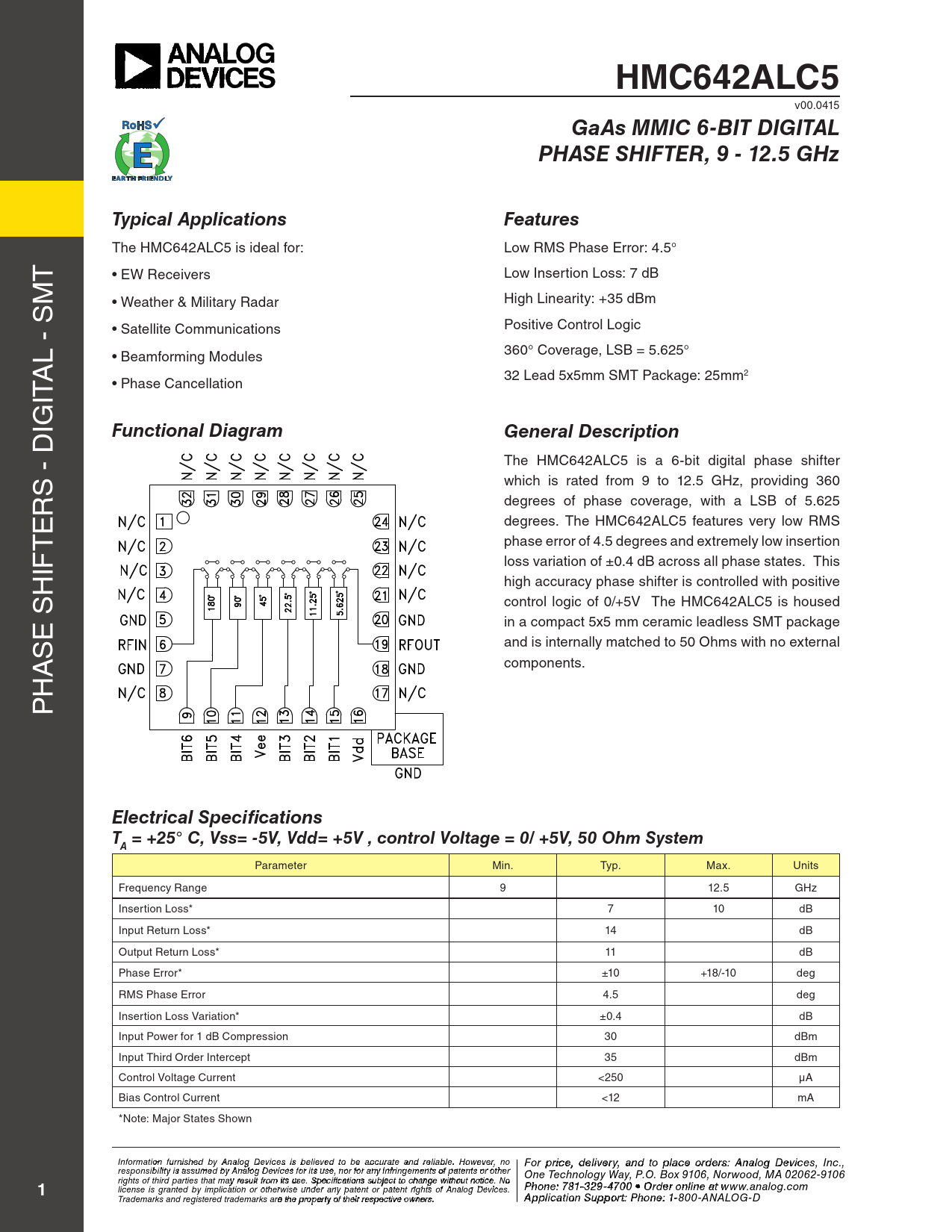

HMC642ALC5. GaAs MMIC 6-BIT DIGITAL. PHASE SHIFTER, 9 - 12.5 GHz. Typical Applications. Features. Functional Diagram
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC642ALC5
v00.0415
GaAs MMIC 6-BIT DIGITAL PHASE SHIFTER, 9 - 12.5 GHz Typical Applications Features
The HMC642ALC5 is ideal for: Low RMS Phase Error: 4.5° T • EW Receivers Low Insertion Loss: 7 dB M • Weather & Military Radar High Linearity: +35 dBm Positive Control Logic • Satel ite Communications L - S 360° Coverage, LSB = 5.625° • Beamforming Modules 32 Lead 5x5mm SMT Package: 25mm2 ITA • Phase Cancel ation IG
Functional Diagram General Description
The HMC642ALC5 is a 6-bit digital phase shifter S - D which is rated from 9 to 12.5 GHz, providing 360 R degrees of phase coverage, with a LSB of 5.625 E degrees. The HMC642ALC5 features very low RMS T phase error of 4.5 degrees and extremely low insertion IF loss variation of ±0.4 dB across all phase states. This H high accuracy phase shifter is control ed with positive control logic of 0/+5V The HMC642ALC5 is housed E S in a compact 5x5 mm ceramic leadless SMT package S and is internal y matched to 50 Ohms with no external A components. H P
Electrical Specifications T = +25° C, Vss= -5V, Vdd= +5V , control Voltage = 0/ +5V, 50 Ohm System A
Parameter Min. Typ. Max. Units Frequency Range 9 12.5 GHz Insertion Loss* 7 10 dB Input Return Loss* 14 dB Output Return Loss* 11 dB Phase Error* ±10 +18/-10 deg RMS Phase Error 4.5 deg Insertion Loss Variation* ±0.4 dB Input Power for 1 dB Compression 30 dBm Input Third Order Intercept 35 dBm Control Voltage Current <250 µA Bias Control Current <12 mA *Note: Major States Shown Informat F io o n r p furn risihcee d , d by e An lialvoe g rDy a evic n e d t s is o p belie lva e c d t e o o b rd e a e cc rursa: A te a n n a d lo reli g D able. e H v o ic weveers, I no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other nc., 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 • Fax: 978-250-3373 • O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Ph e o r O ne n : 7 -l 81 i-n 3 e a 29-4t w 70 ww 0 • O .h rd iettit r o e nli.c n om
1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. e at www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners.ne: 978-250-33A4 p 3 o plic r a atiopp n S su@ p h po irtttit : Pe. hocno e m : 1-800-ANALOG-D
