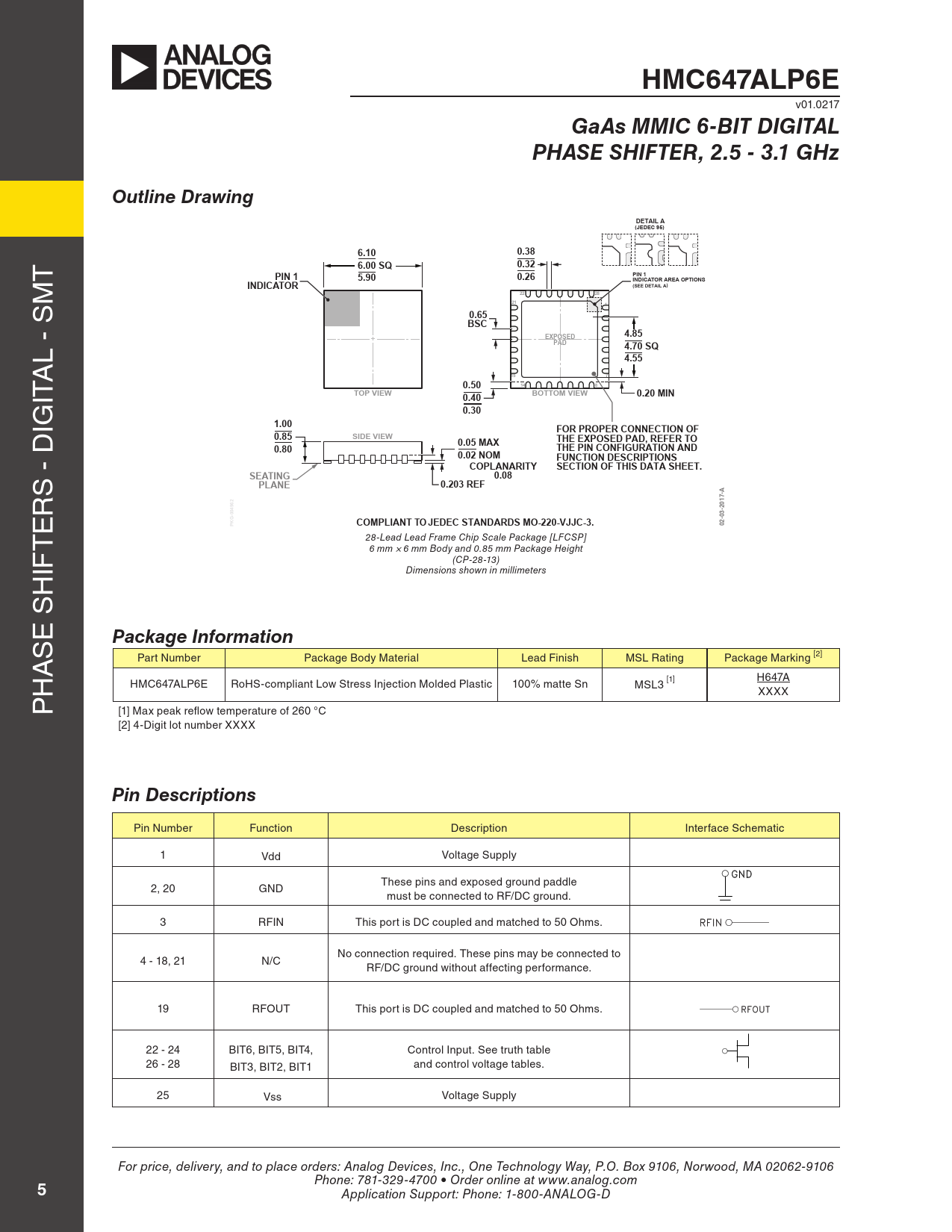

HMC647ALP6E. GaAs MMIC 6-BIT DIGITAL. PHASE SHIFTER, 2.5 - 3.1 GHz. 28-Lead Lead Frame Chip Scale Package [LFCSP]
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC647ALP6E
v01.0217
GaAs MMIC 6-BIT DIGITAL PHASE SHIFTER, 2.5 - 3.1 GHz 28-Lead Lead Frame Chip Scale Package [LFCSP] 6 x 6 mm Body and 0.85 Package Height Outline Drawing (CP-28-13) Dimensions shown in millimeters DETAIL A (JEDEC 95) 6.10 0.38
T
6.00 SQ 0.32 PIN 1 5.90 0.26 PIN 1
M
INDICATOR INDICATOR AREA OPTIONS (SEE DETAIL A) 22 28 21 1 0.65 BSC EXPOSED 4.85
L - S
PAD 4.70 SQ 4.55 15 7
ITA
14 8 0.50 TOP VIEW BOTTOM VIEW 0.40 0.20 MIN
IG
0.30 1.00 FOR PROPER CONNECTION OF 0.85 SIDE VIEW THE EXPOSED PAD, REFER TO 0.80 0.05 MAX THE PIN CONFIGURATION AND 0.02 NOM FUNCTION DESCRIPTIONS COPLANARITY SECTION OF THIS DATA SHEET.
S - D
SEATING 0.08 PLANE 0.203 REF
R E
PKG-004962 COMPLIANT TO JEDEC STANDARDS MO-220-VJJC-3. 02-03-2017-A
T 28-Lead Lead Frame Chip Scale Package [LFCSP] 6 mm × 6 mm Body and 0.85 mm Package Height IF (CP-28-13) H Dimensions shown in millimeters E S S
Package Information
A Part Number Package Body Material Lead Finish MSL Rating Package Marking [2] H HMC647ALP6E RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL3 [1] H647A P XXXX [1] Max peak reflow temperature of 260 °C [2] 4-Digit lot number XXXX
Pin Descriptions
Pin Number Function Description Interface Schematic 1 Vdd Voltage Supply These pins and exposed ground paddle 2, 20 GND must be connected to RF/DC ground. 3 RFIN This port is DC coupled and matched to 50 Ohms. No connection required. These pins may be connected to 4 - 18, 21 N/C RF/DC ground without affecting performance. 19 RFOUT This port is DC coupled and matched to 50 Ohms. 22 - 24 BIT6, BIT5, BIT4, Control Input. See truth table 26 - 28 BIT3, BIT2, BIT1 and control voltage tables. 25 Vss Voltage Supply For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
5
Application Support: Phone: 1-800-ANALOG-D
