Datasheet HMC1133LP5E (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | GaAs MMIC 6-BIT Digital Phase Shifter, 4.8 - 6.2 GHz |
| Páginas / Página | 6 / 1 — HMC1133LP5E. GaAs MMIC 6-BIT DIGITAL. PHASE SHIFTER, 4.8 - 6.2 GHz. … |
| Formato / tamaño de archivo | PDF / 557 Kb |
| Idioma del documento | Inglés |

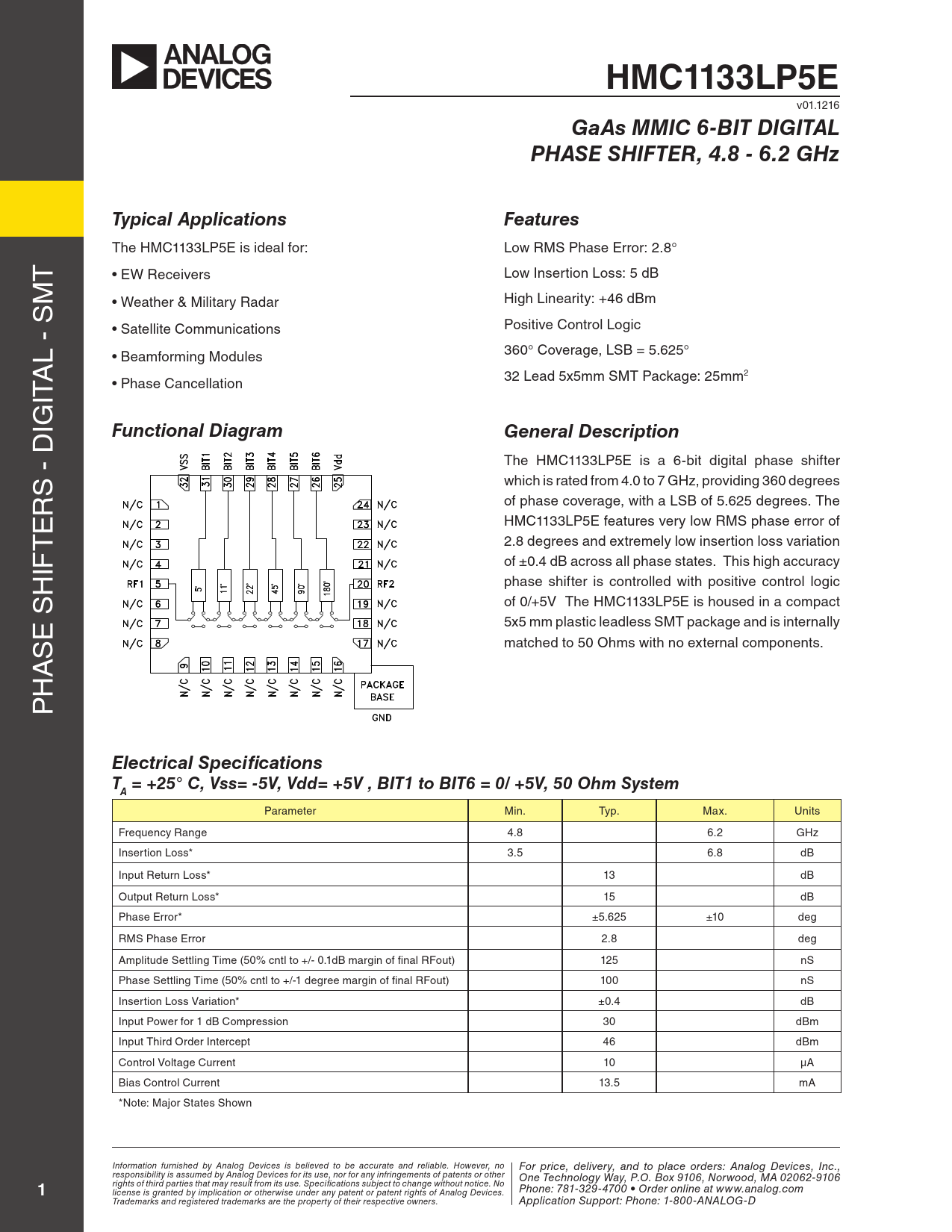

HMC1133LP5E. GaAs MMIC 6-BIT DIGITAL. PHASE SHIFTER, 4.8 - 6.2 GHz. Typical Applications. Features. Functional Diagram
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC1133LP5E
v01.1216
GaAs MMIC 6-BIT DIGITAL PHASE SHIFTER, 4.8 - 6.2 GHz Typical Applications Features
The HMC1133LP5E is ideal for: Low RMS Phase Error: 2.8° T • EW Receivers Low Insertion Loss: 5 dB M • Weather & Military Radar High Linearity: +46 dBm Positive Control Logic • Satellite Communications L - S 360° Coverage, LSB = 5.625° • Beamforming Modules 32 Lead 5x5mm SMT Package: 25mm2 ITA • Phase Cancel ation IG
Functional Diagram General Description
The HMC1133LP5E is a 6-bit digital phase shifter S - D which is rated from 4.0 to 7 GHz, providing 360 degrees R of phase coverage, with a LSB of 5.625 degrees. The E HMC1133LP5E features very low RMS phase error of T 2.8 degrees and extremely low insertion loss variation IF of ±0.4 dB across all phase states. This high accuracy H phase shifter is control ed with positive control logic of 0/+5V The HMC1133LP5E is housed in a compact E S 5x5 mm plastic leadless SMT package and is internal y S matched to 50 Ohms with no external components. A H P
Electrical Specifications T = +25° C, Vss= -5V, Vdd= +5V , BIT1 to BIT6 = 0/ +5V, 50 Ohm System A
Parameter Min. Typ. Max. Units Frequency Range 4.8 6.2 GHz Insertion Loss* 3.5 6.8 dB Input Return Loss* 13 dB Output Return Loss* 15 dB Phase Error* ±5.625 ±10 deg RMS Phase Error 2.8 deg Amplitude Settling Time (50% cntl to +/- 0.1dB margin of final RFout) 125 nS Phase Settling Time (50% cntl to +/-1 degree margin of final RFout) 100 nS Insertion Loss Variation* ±0.4 dB Input Power for 1 dB Compression 30 dBm Input Third Order Intercept 46 dBm Control Voltage Current 10 µA Bias Control Current 13.5 mA *Note: Major States Shown Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
