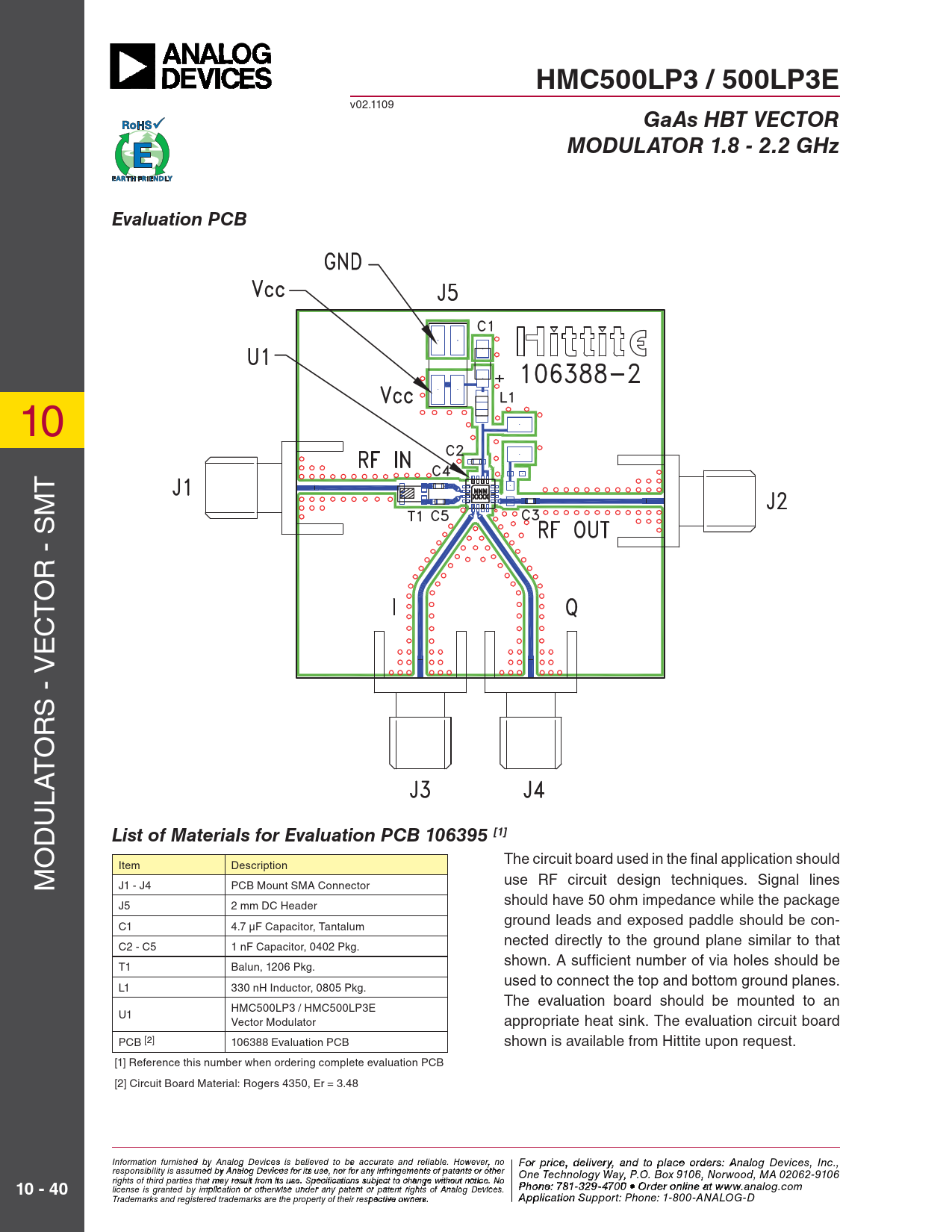

HMC500LP3 / 500LP3E v02.1109 GaAs HBT VECTORMODULATOR 1.8 - 2.2 GHzEvaluation PCB 10 T - SM R O T C E - V S R O T A L U List of Materials for Evaluation PCB 106395 [1] The circuit board used in the fi nal application should Item Description MOD use RF circuit design techniques. Signal lines J1 - J4 PCB Mount SMA Connector should have 50 ohm impedance while the package J5 2 mm DC Header ground leads and exposed paddle should be con- C1 4.7 μF Capacitor, Tantalum nected directly to the ground plane similar to that C2 - C5 1 nF Capacitor, 0402 Pkg. shown. A sufficient number of via holes should be T1 Balun, 1206 Pkg. used to connect the top and bottom ground planes. L1 330 nH Inductor, 0805 Pkg. The evaluation board should be mounted to an HMC500LP3 / HMC500LP3E U1 Vector Modulator appropriate heat sink. The evaluation circuit board PCB [2] 106388 Evaluation PCB shown is available from Hittite upon request. [1] Reference this number when ordering complete evaluation PCB [2] Circuit Board Material: Rogers 4350, Er = 3.48 Information furnishe F d obr pr y An i al c o e g ,D d evi e ce lis vie s r beyli, a eve n d t d to p o be acclac urat e o e an r d d releiars ble , p . Hole we a vesr, en c o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ontact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone rights of third parties that may result from its use. Specifications subject to change without notice. No : 9P7h8 o - n 25 e: 7 0- 81 3 - 3 2 4 9- 3 F 470 ax: 9 0 • Ord 7 e 8 r o -n25 lin 0- e a 3 t 373 10 - 40 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Order On Trademarks and registered trademarks are the property of their respective owners. -line at www.hi A tt p ipte lic .c ati o o m n Support: Phone: 1-800-ANALOG-D
