Datasheet AD8340 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | 700 MHz TO 1000 MHz RF Vector Modulator |
| Páginas / Página | 20 / 4 — AD8340. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 429 Kb |
| Idioma del documento | Inglés |

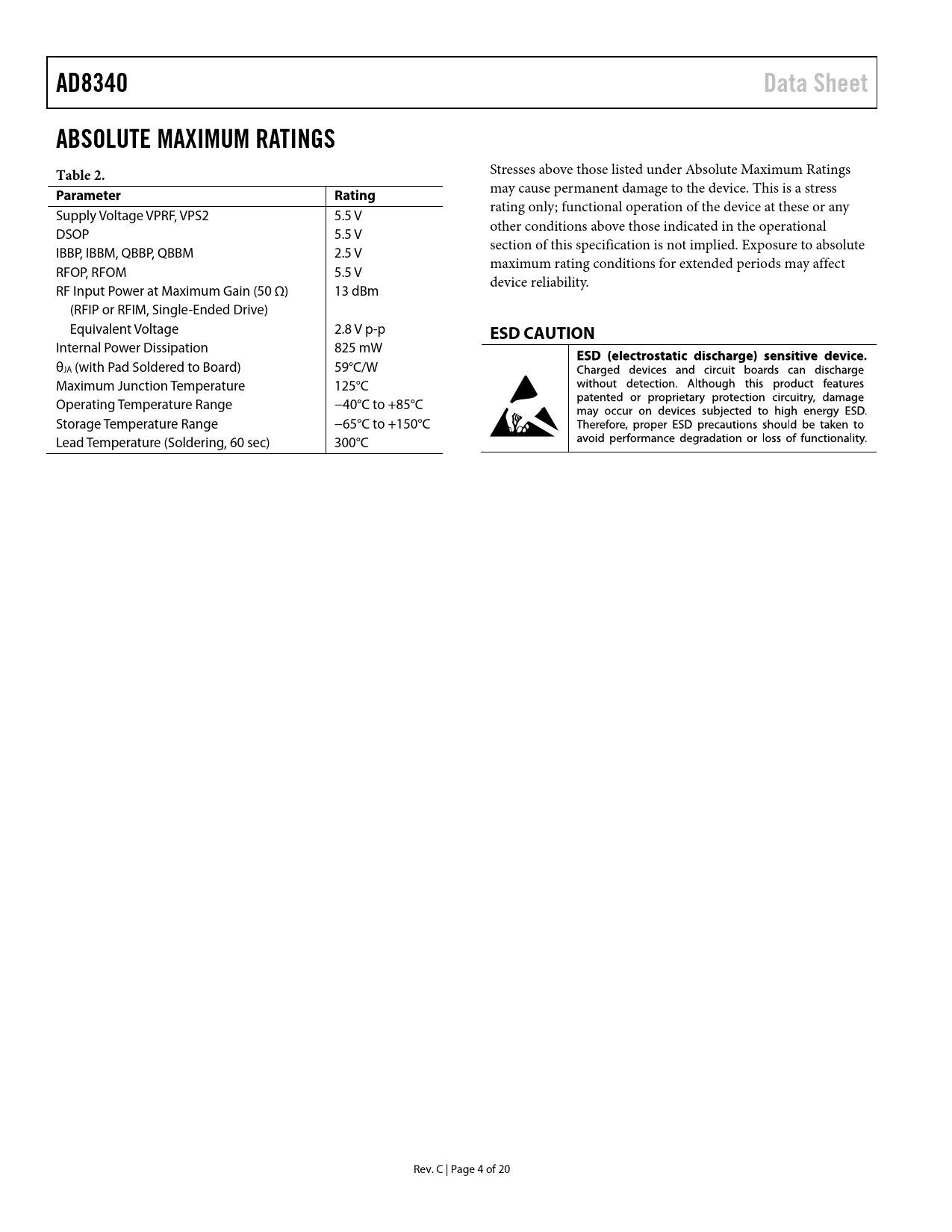

AD8340. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD8340 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage VPRF, VPS2 5.5 V rating only; functional operation of the device at these or any other conditions above those indicated in the operational DSOP 5.5 V section of this specification is not implied. Exposure to absolute IBBP, IBBM, QBBP, QBBM 2.5 V maximum rating conditions for extended periods may affect RFOP, RFOM 5.5 V device reliability. RF Input Power at Maximum Gain (50 Ω) 13 dBm (RFIP or RFIM, Single-Ended Drive) Equivalent Voltage 2.8 V p-p
ESD CAUTION
Internal Power Dissipation 825 mW θ JA (with Pad Soldered to Board) 59°C/W Maximum Junction Temperature 125°C Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 300°C Rev. C | Page 4 of 20 Document Outline Features Applications Functional Block Diagram General Description Table of Contents Revision History Specifications Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Theory of Operation RF Quadrature Generator I-Q Attenuators and Baseband Amplifiers Output Amplifier Noise and Distortion Gain and Phase Accuracy RF Frequency Range Applications Information Using the AD8340 RF Input and Matching RF Output and Matching Driving the I-Q Baseband Controls Interfacing to High Speed DACs CDMA2000 Application Evaluation Board Schematic and Artwork Outline Dimensions Ordering Guide
