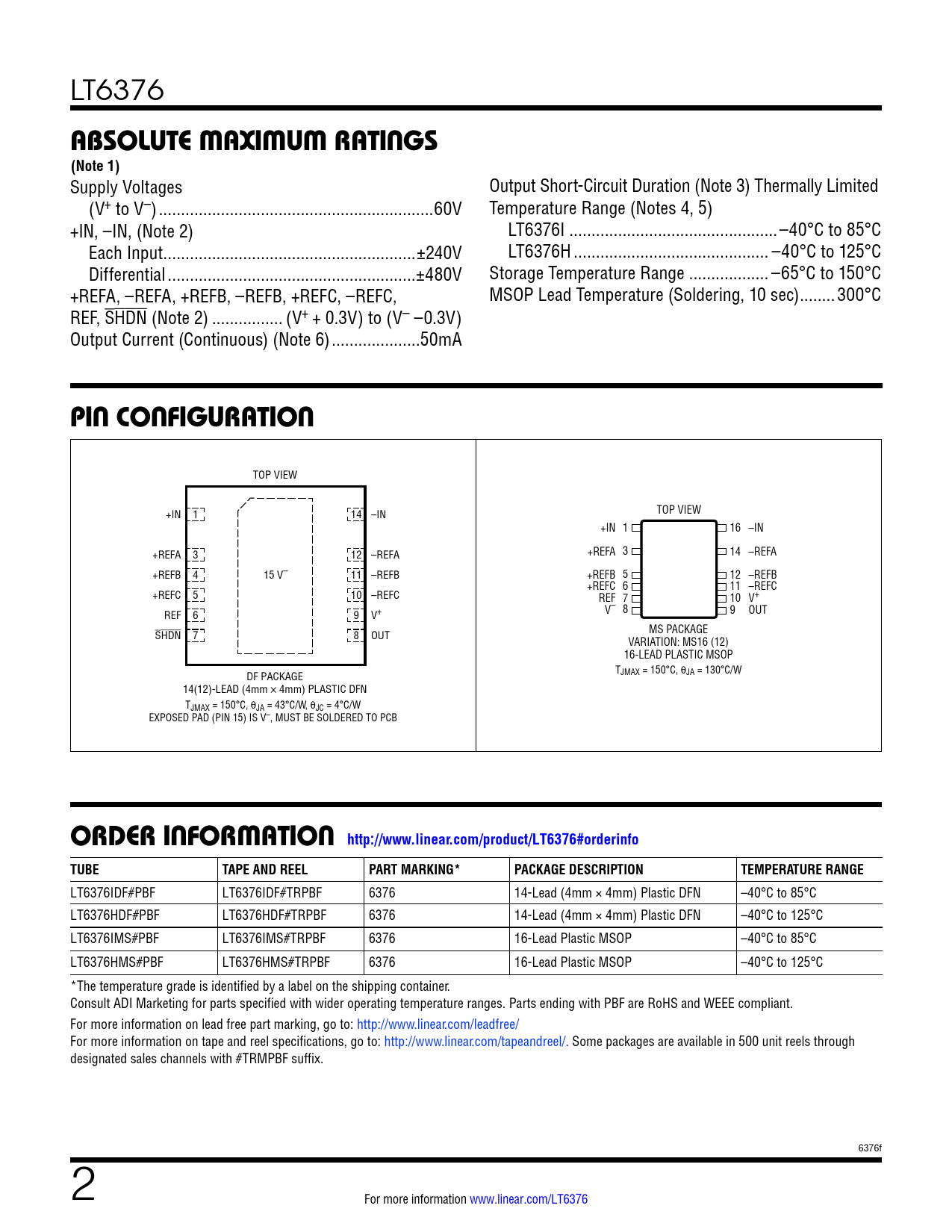

LT6376
ABSOLUTE MAXIMUM RATINGS (Note 1)
Supply Voltages Output Short-Circuit Duration (Note 3) Thermal y Limited (V+ to V–) ..60V Temperature Range (Notes 4, 5) +IN, –IN, (Note 2) LT6376I ...–40°C to 85°C Each Input ...±240V LT6376H .. –40°C to 125°C Differential ..±480V Storage Temperature Range .. –65°C to 150°C +REFA, –REFA, +REFB, –REFB, +REFC, –REFC, MSOP Lead Temperature (Soldering, 10 sec) ..300°C REF, SHDN (Note 2) .. (V+ + 0.3V) to (V– –0.3V) Output Current (Continuous) (Note 6) ..50mA
PIN CONFIGURATION
TOP VIEW +IN 1 14 –IN TOP VIEW +IN 1 16 –IN +REFA 3 12 –REFA +REFA 3 14 –REFA +REFB 4 15 V– 11 –REFB +REFB 5 12 –REFB +REFC 6 11 –REFC +REFC 5 10 –REFC REF 7 10 V+ REF 6 9 V+ V– 8 9 OUT SHDN 7 8 OUT MS PACKAGE VARIATION: MS16 (12) 16-LEAD PLASTIC MSOP T DF PACKAGE JMAX = 150°C, qJA = 130°C/W 14(12)-LEAD (4mm × 4mm) PLASTIC DFN TJMAX = 150°C, qJA = 43°C/W, qJC = 4°C/W EXPOSED PAD (PIN 15) IS V–, MUST BE SOLDERED TO PCB
ORDER INFORMATION http://www.linear.com/product/LT6376#orderinfo TUBE TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT6376IDF#PBF LT6376IDF#TRPBF 6376 14-Lead (4mm × 4mm) Plastic DFN –40°C to 85°C LT6376HDF#PBF LT6376HDF#TRPBF 6376 14-Lead (4mm × 4mm) Plastic DFN –40°C to 125°C LT6376IMS#PBF LT6376IMS#TRPBF 6376 16-Lead Plastic MSOP –40°C to 85°C LT6376HMS#PBF LT6376HMS#TRPBF 6376 16-Lead Plastic MSOP –40°C to 125°C *The temperature grade is identified by a label on the shipping container. Consult ADI Marketing for parts specified with wider operating temperature ranges. Parts ending with PBF are RoHS and WEEE compliant. For more information on lead free part marking, go to: http://www.linear.com/leadfree/ For more information on tape and reel specifications, go to: http://www.linear.com/tapeandreel/. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. 6376f 2 For more information www.linear.com/LT6376 Document Outline FEATURES DESCRIPTION APPLICATIONS TYPICAL APPLICATION ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION ORDER INFORMATION E LECTRICAL CHARACTERISTICS TYPICAL PERFORMANCE CHARACTERISTICS PIN FUNCTIONS BLOCK DIAGRAM APPLICATIONS INFORMATION TYPICAL APPLICATIONS PACKAGE DESCRIPTION TYPICAL APPLICATION RELATED PARTS
