Datasheet RH3083MK DICE/DWF (Analog Devices) - 2
| Fabricante | Analog Devices |
| Descripción | Adjustable 2.8A Single Resistor Low Dropout Regulator |
| Páginas / Página | 6 / 2 — table 1. Dice/DWF electrical test liMits TA = 25°C (Notes 2, 5, 8, 9, 11) … |
| Formato / tamaño de archivo | PDF / 249 Kb |
| Idioma del documento | Inglés |

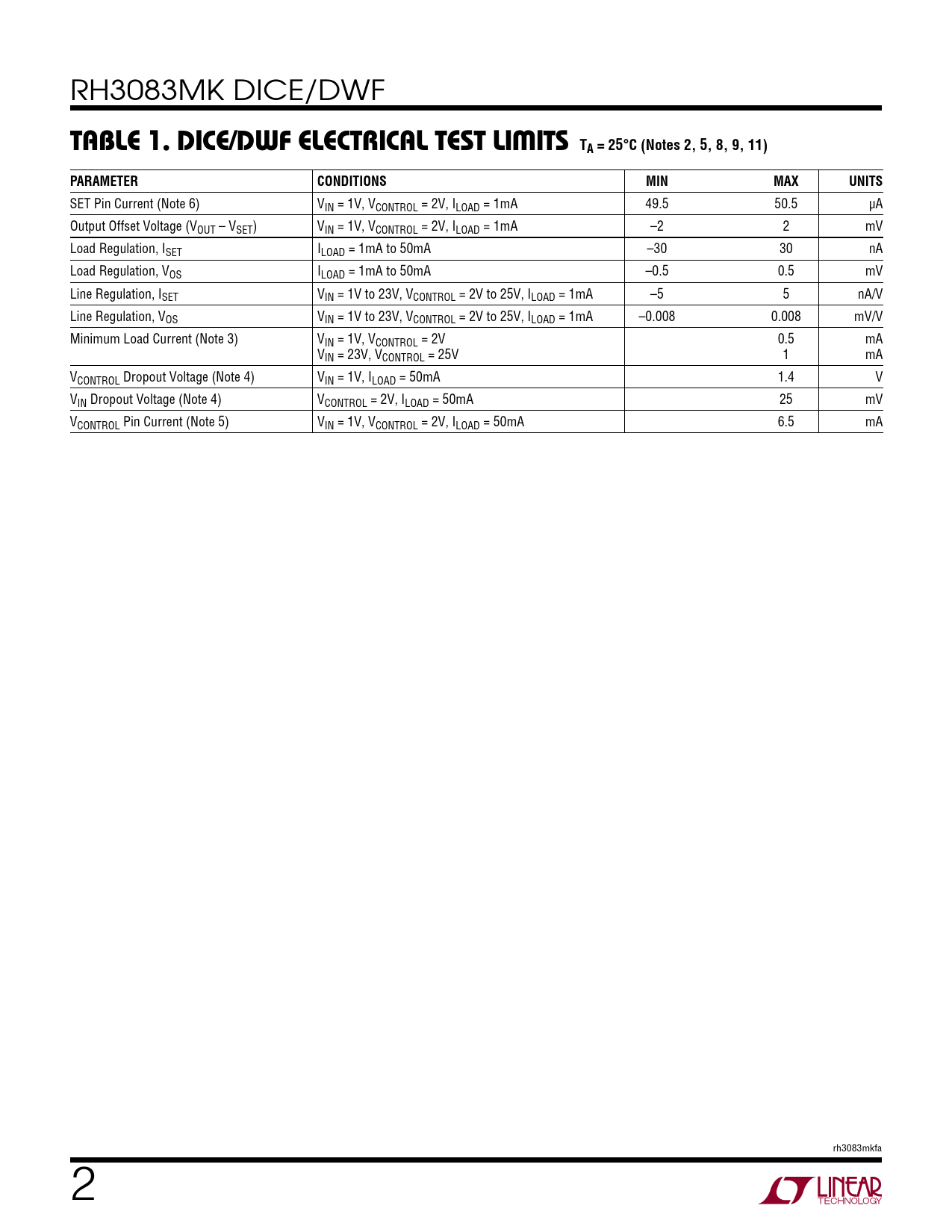

table 1. Dice/DWF electrical test liMits TA = 25°C (Notes 2, 5, 8, 9, 11) PARAMETER. CONDITIONS. MIN. MAX. UNITS
Línea de modelo para esta hoja de datos
Versión de texto del documento
RH3083MK DICE/DWF
table 1. Dice/DWF electrical test liMits TA = 25°C (Notes 2, 5, 8, 9, 11) PARAMETER CONDITIONS MIN MAX UNITS
SET Pin Current (Note 6) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA 49.5 50.5 µA Output Offset Voltage (VOUT – VSET) VIN = 1V, VCONTROL = 2V, ILOAD = 1mA –2 2 mV Load Regulation, ISET ILOAD = 1mA to 50mA –30 30 nA Load Regulation, VOS ILOAD = 1mA to 50mA –0.5 0.5 mV Line Regulation, ISET VIN = 1V to 23V, VCONTROL = 2V to 25V, ILOAD = 1mA –5 5 nA/V Line Regulation, VOS VIN = 1V to 23V, VCONTROL = 2V to 25V, ILOAD = 1mA –0.008 0.008 mV/V Minimum Load Current (Note 3) VIN = 1V, VCONTROL = 2V 0.5 mA VIN = 23V, VCONTROL = 25V 1 mA VCONTROL Dropout Voltage (Note 4) VIN = 1V, ILOAD = 50mA 1.4 V VIN Dropout Voltage (Note 4) VCONTROL = 2V, ILOAD = 50mA 25 mV VCONTROL Pin Current (Note 5) VIN = 1V, VCONTROL = 2V, ILOAD = 50mA 6.5 mA rh3083mkfa 2 Document Outline Features Description Dice Pinout Absolute Maximum Ratings Table 1. DICE/DWF Electrical Test Limits Table 2. Electrical Characteristics Table 3. Electrical Characteristics Table 4. Electrical Test Requirements Total Dose Bias Circuit Burn-In Circuit Typical Performance Characteristics Revision History
