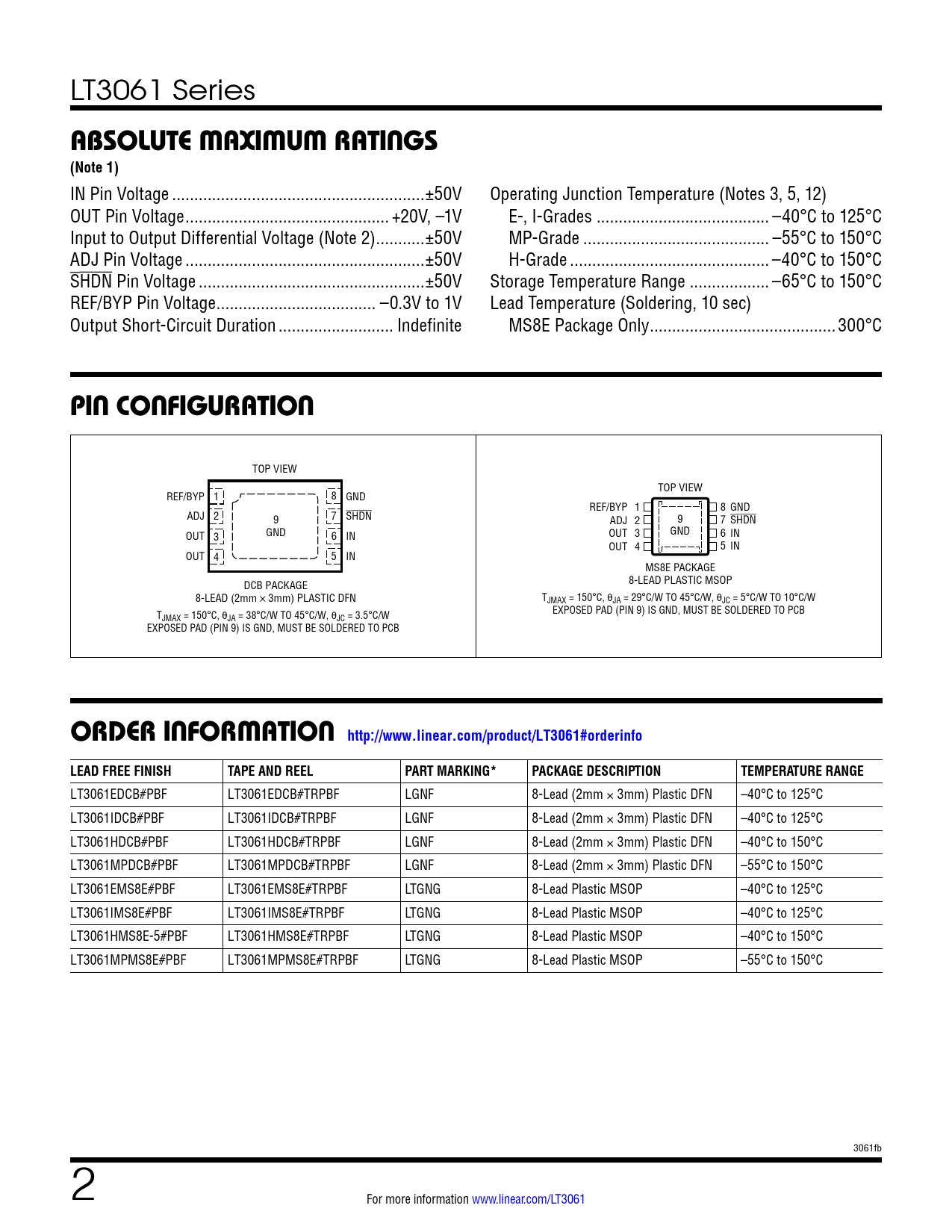

LT3061 Series
ABSOLUTE MAXIMUM RATINGS (Note 1)
IN Pin Voltage ...±50V Operating Junction Temperature (Notes 3, 5, 12) OUT Pin Voltage .. +20V, –1V E-, I-Grades ... –40°C to 125°C Input to Output Differential Voltage (Note 2) ...±50V MP-Grade .. –55°C to 150°C ADJ Pin Voltage ..±50V H-Grade ... –40°C to 150°C SHDN Pin Voltage ...±50V Storage Temperature Range .. –65°C to 150°C REF/BYP Pin Voltage .. –0.3V to 1V Lead Temperature (Soldering, 10 sec) Output Short-Circuit Duration .. Indefinite MS8E Package Only ..300°C
PIN CONFIGURATION
TOP VIEW TOP VIEW REF/BYP 1 8 GND REF/BYP 1 8 GND ADJ 2 7 SHDN 9 ADJ 2 9 7 SHDN OUT GND 3 6 IN OUT 3 GND 6 IN OUT 4 5 IN OUT 4 5 IN MS8E PACKAGE DCB PACKAGE 8-LEAD PLASTIC MSOP 8-LEAD (2mm × 3mm) PLASTIC DFN TJMAX = 150°C, θJA = 29°C/W TO 45°C/W, θJC = 5°C/W TO 10°C/W T EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB JMAX = 150°C, θJA = 38°C/W TO 45°C/W, θJC = 3.5°C/W EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION http://www.linear.com/product/LT3061#orderinfo LEAD FREE FINISH TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LT3061EDCB#PBF LT3061EDCB#TRPBF LGNF 8-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C LT3061IDCB#PBF LT3061IDCB#TRPBF LGNF 8-Lead (2mm × 3mm) Plastic DFN –40°C to 125°C LT3061HDCB#PBF LT3061HDCB#TRPBF LGNF 8-Lead (2mm × 3mm) Plastic DFN –40°C to 150°C LT3061MPDCB#PBF LT3061MPDCB#TRPBF LGNF 8-Lead (2mm × 3mm) Plastic DFN –55°C to 150°C LT3061EMS8E#PBF LT3061EMS8E#TRPBF LTGNG 8-Lead Plastic MSOP –40°C to 125°C LT3061IMS8E#PBF LT3061IMS8E#TRPBF LTGNG 8-Lead Plastic MSOP –40°C to 125°C LT3061HMS8E-5#PBF LT3061HMS8E#TRPBF LTGNG 8-Lead Plastic MSOP –40°C to 150°C LT3061MPMS8E#PBF LT3061MPMS8E#TRPBF LTGNG 8-Lead Plastic MSOP –55°C to 150°C 3061fb 2 For more information www.linear.com/LT3061
