Datasheet OP42 (Analog Devices) - 5

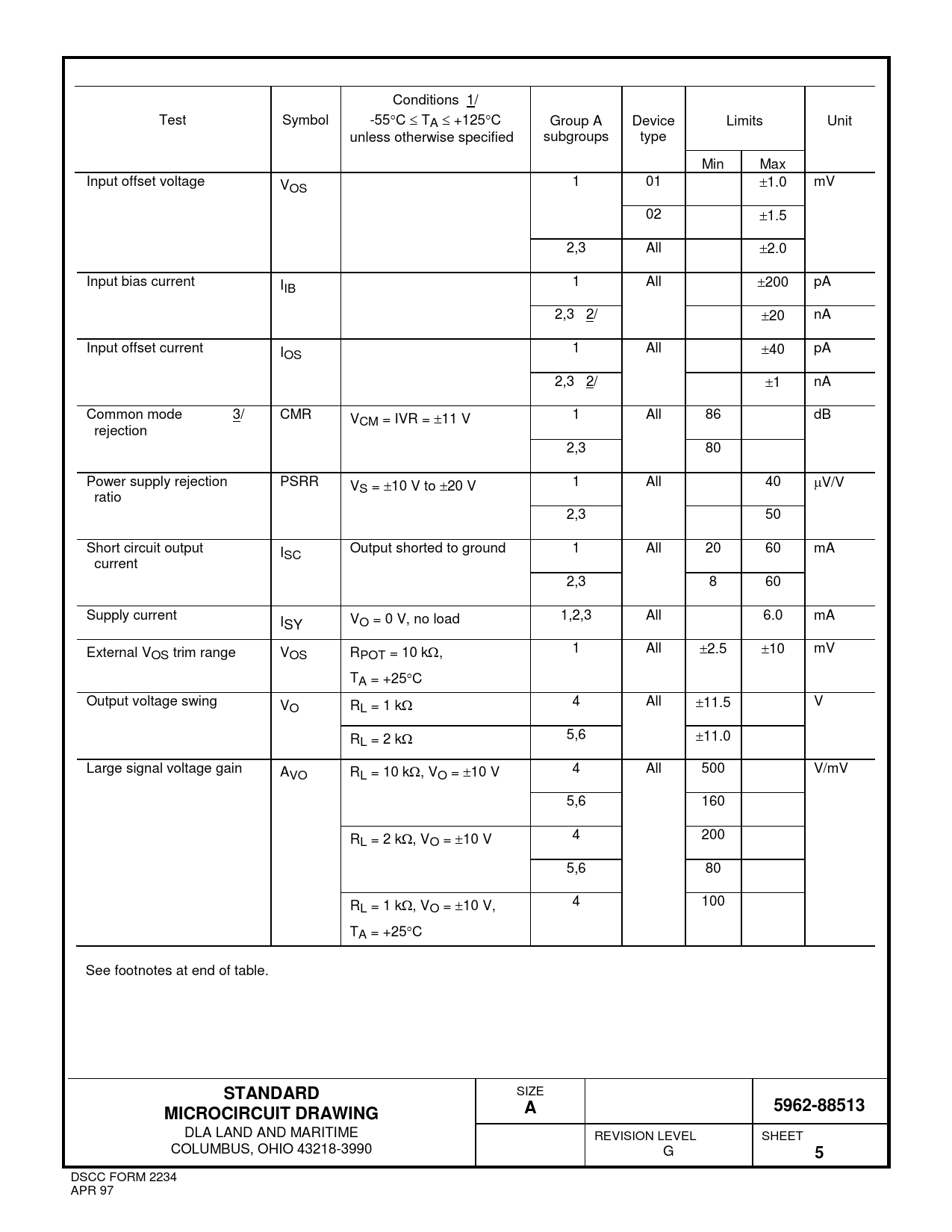

Conditions 1/ Test Symbol -55°C ≤ TA ≤ +125°C Group A Device Limits Unit unless otherwise specified subgroups type Min Max Input offset voltage VOS 1 01 ±1.0 mV 02 ±1.5 2,3 All ±2.0 Input bias current IIB 1 All ±200 pA 2,3 2/ ±20 nA Input offset current IOS 1 All ±40 pA 2,3 2/ ±1 nA Common mode 3/ CMR VCM = IVR = ±11 V 1 All 86 dB rejection 2,3 80 Power supply rejection PSRR VS = ±10 V to ±20 V 1 All 40 µV/V ratio 2,3 50 Short circuit output ISC Output shorted to ground 1 All 20 60 mA current 2,3 8 60 Supply current I SY VO = 0 V, no load 1,2,3 All 6.0 mA External V 1 All ±2.5 ±10 mV OS trim range VOS RPOT = 10 kΩ, TA = +25°C Output voltage swing VO RL = 1 kΩ 4 All ±11.5 V RL = 2 kΩ 5,6 ±11.0 Large signal voltage gain AVO RL = 10 kΩ, VO = ±10 V 4 All 500 V/mV 5,6 160 RL = 2 kΩ, VO = ±10 V 4 200 5,6 80 R 4 100 L = 1 kΩ, VO = ±10 V, TA = +25°C See footnotes at end of table.
STANDARD
SIZE
5962-88513 MICROCIRCUIT DRAWING A
DLA LAND AND MARITIME REVISION LEVEL SHEET COLUMBUS, OHIO 43218-3990 G
5
