Datasheet AD713 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | Precision, High Speed, BiFET Quad Op Amp |
| Páginas / Página | 12 / 8 — STANDARD. 5962-90633. MICROCIRCUIT DRAWING |
| Formato / tamaño de archivo | PDF / 123 Kb |
| Idioma del documento | Inglés |
STANDARD. 5962-90633. MICROCIRCUIT DRAWING
Línea de modelo para esta hoja de datos
Versión de texto del documento

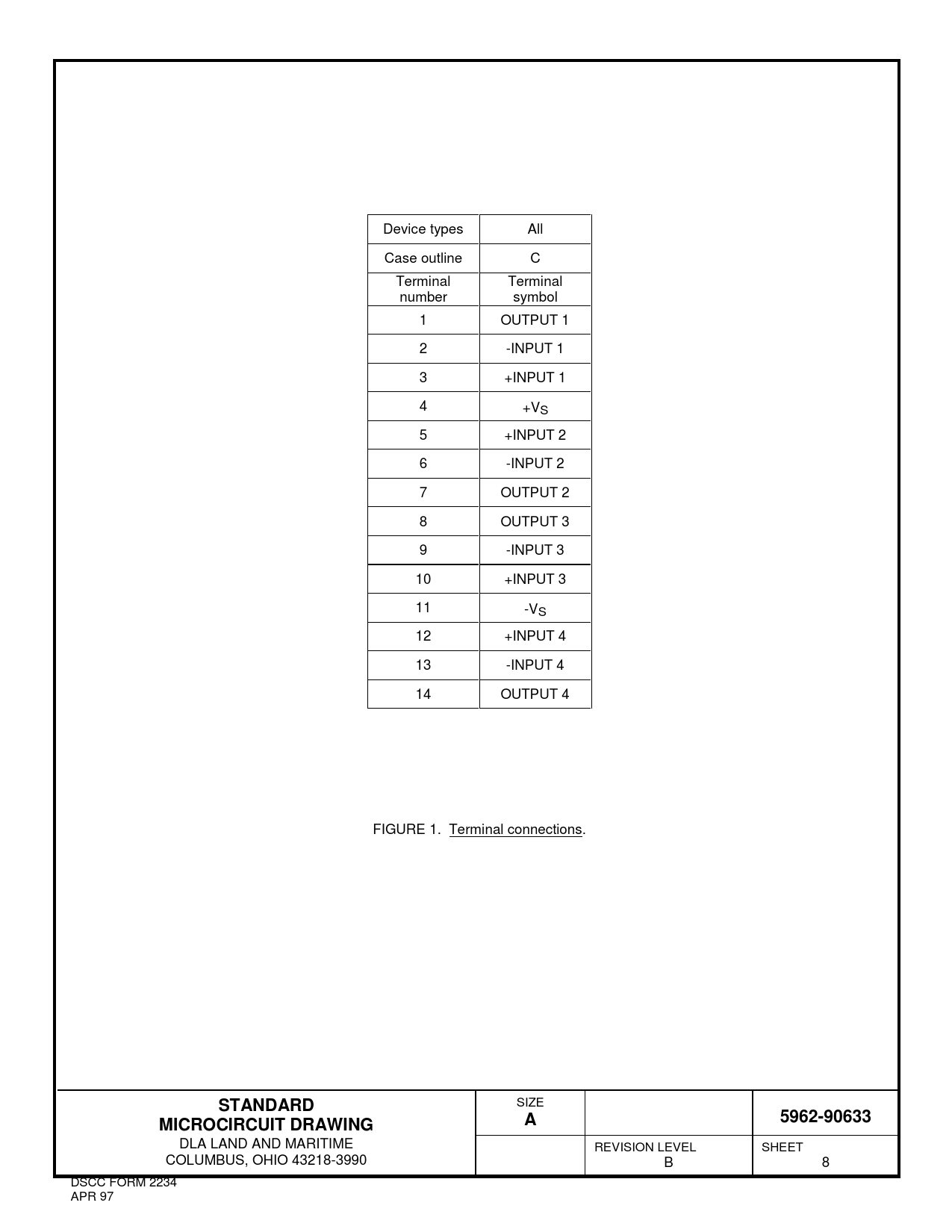

Device types All Case outline C Terminal Terminal number symbol 1 OUTPUT 1 2 -INPUT 1 3 +INPUT 1 4 +VS 5 +INPUT 2 6 -INPUT 2 7 OUTPUT 2 8 OUTPUT 3 9 -INPUT 3 10 +INPUT 3 11 -VS 12 +INPUT 4 13 -INPUT 4 14 OUTPUT 4 FIGURE 1. Terminal connections.
