Datasheet AD8001 (Analog Devices) - 7
| Fabricante | Analog Devices |
| Descripción | 800 MHz, 50 mW Current Feedback Amplifier |
| Páginas / Página | 11 / 7 — STANDARD. 5962-94593. MICROCIRCUIT DRAWING |
| Formato / tamaño de archivo | PDF / 124 Kb |
| Idioma del documento | Inglés |
STANDARD. 5962-94593. MICROCIRCUIT DRAWING
Línea de modelo para esta hoja de datos
Versión de texto del documento

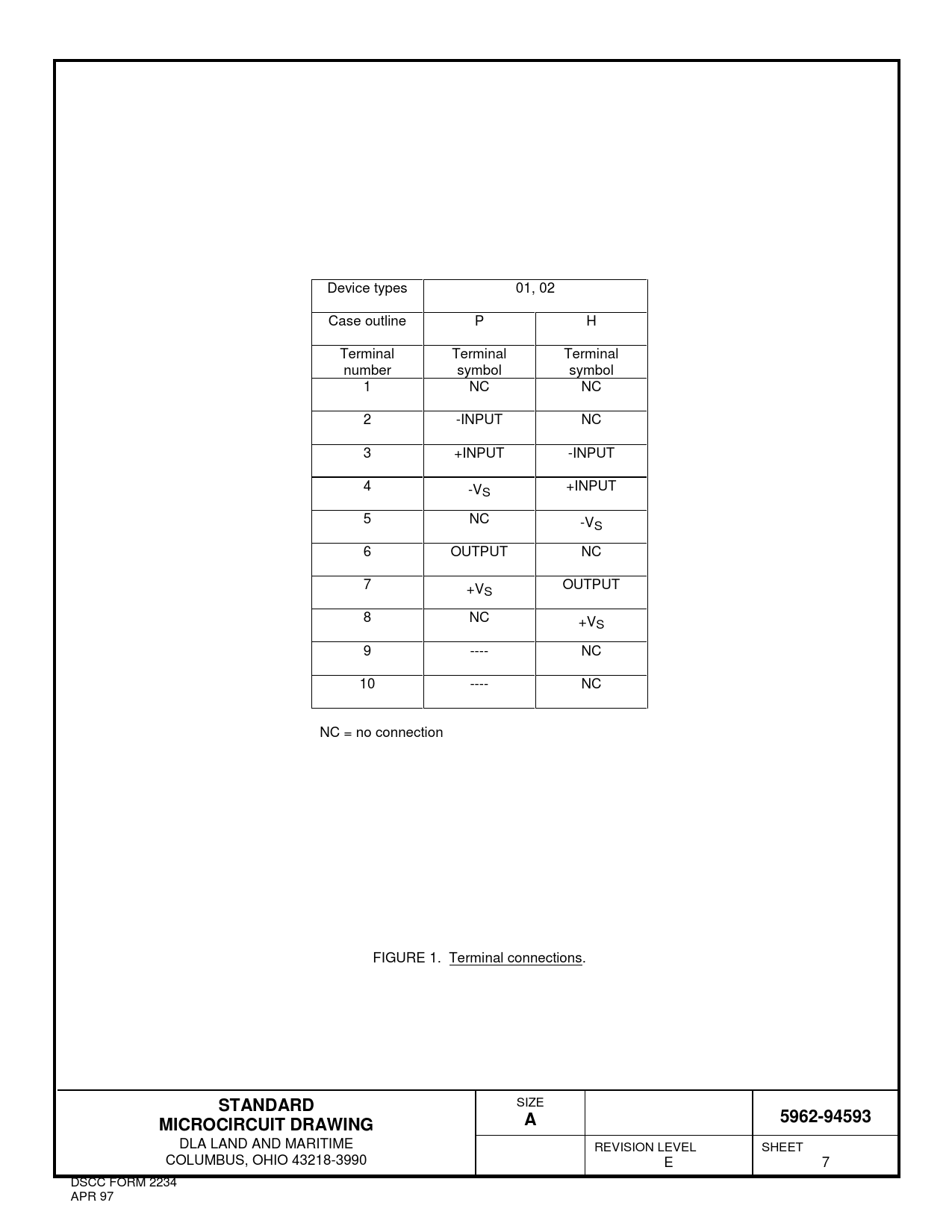

Device types 01, 02 Case outline P H Terminal Terminal Terminal number symbol symbol 1 NC NC 2 -INPUT NC 3 +INPUT -INPUT 4 -VS +INPUT 5 NC -VS 6 OUTPUT NC 7 +VS OUTPUT 8 NC +VS 9 ---- NC 10 ---- NC NC = no connection FIGURE 1. Terminal connections.
