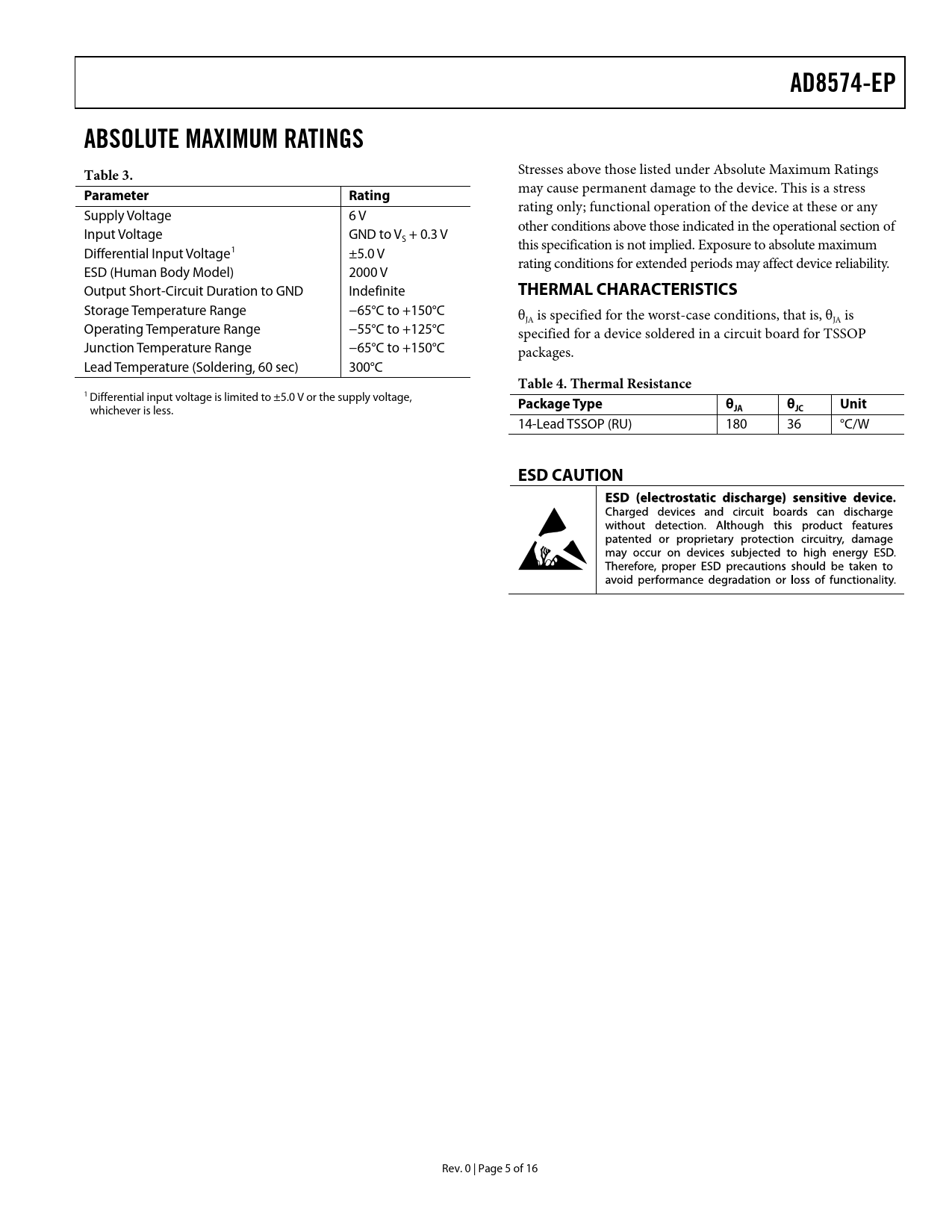

AD8574-EP ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any Supply Voltage 6 V other conditions above those indicated in the operational section of Input Voltage GND to V + 0.3 V S this specification is not implied. Exposure to absolute maximum Differential Input Voltage1 ±5.0 V rating conditions for extended periods may affect device reliability. ESD (Human Body Model) 2000 V Output Short-Circuit Duration to GND Indefinite
THERMAL CHARACTERISTICS
Storage Temperature Range −65°C to +150°C θJA is specified for the worst-case conditions, that is, θJA is Operating Temperature Range −55°C to +125°C specified for a device soldered in a circuit board for TSSOP Junction Temperature Range −65°C to +150°C packages. Lead Temperature (Soldering, 60 sec) 300°C
Table 4. Thermal Resistance
1 Differential input voltage is limited to ±5.0 V or the supply voltage, whichever is less.
Package Type θ θ Unit JA JC
14-Lead TSSOP (RU) 180 36 °C/W
ESD CAUTION
Rev. 0 | Page 5 of 16 Document Outline Features Applications General Description Pin Configurations Revision History Specifications 5 V Electrical Characteristics 2.7 V Electrical Characteristics Absolute Maximum Ratings Thermal Characteristics ESD Caution Typical Performance Characteristics Outline Dimensions Ordering Guide
