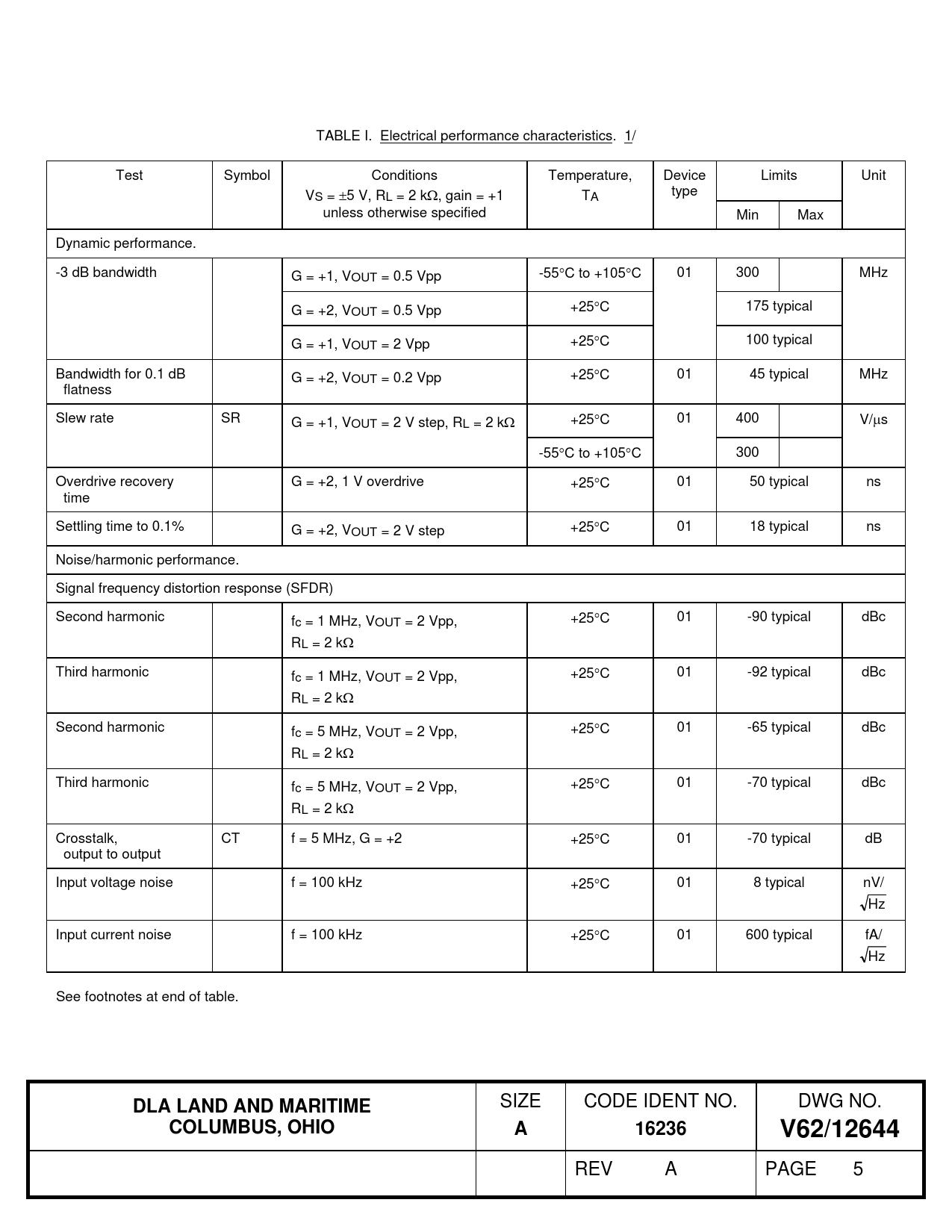

TABLE I. Electrical performance characteristics. 1/ Test Symbol Conditions Temperature, Device Limits Unit VS = 5 V, RL = 2 k, gain = +1 TA type unless otherwise specified Min Max Dynamic performance. -3 dB bandwidth G = +1, VOUT = 0.5 Vpp -55C to +105C 01 300 MHz G = +2, VOUT = 0.5 Vpp +25C 175 typical G = +1, VOUT = 2 Vpp +25C 100 typical Bandwidth for 0.1 dB G = +2, VOUT = 0.2 Vpp +25C 01 45 typical MHz flatness Slew rate SR G = +1, VOUT = 2 V step, RL = 2 k +25C 01 400 V/s -55C to +105C 300 Overdrive recovery G = +2, 1 V overdrive +25C 01 50 typical ns time Settling time to 0.1% G = +2, VOUT = 2 V step +25C 01 18 typical ns Noise/harmonic performance. Signal frequency distortion response (SFDR) Second harmonic fc = 1 MHz, VOUT = 2 Vpp, +25C 01 -90 typical dBc RL = 2 k Third harmonic fc = 1 MHz, VOUT = 2 Vpp, +25C 01 -92 typical dBc RL = 2 k Second harmonic fc = 5 MHz, VOUT = 2 Vpp, +25C 01 -65 typical dBc RL = 2 k Third harmonic fc = 5 MHz, VOUT = 2 Vpp, +25C 01 -70 typical dBc RL = 2 k Crosstalk, CT f = 5 MHz, G = +2 +25C 01 -70 typical dB output to output Input voltage noise f = 100 kHz +25C 01 8 typical nV/ Hz Input current noise f = 100 kHz +25C 01 600 typical fA/ Hz See footnotes at end of table. DLA LAND AND MARITIME SIZE CODE IDENT NO. DWG NO. COLUMBUS, OHIOA16236V62/12644 REV A PAGE 5
