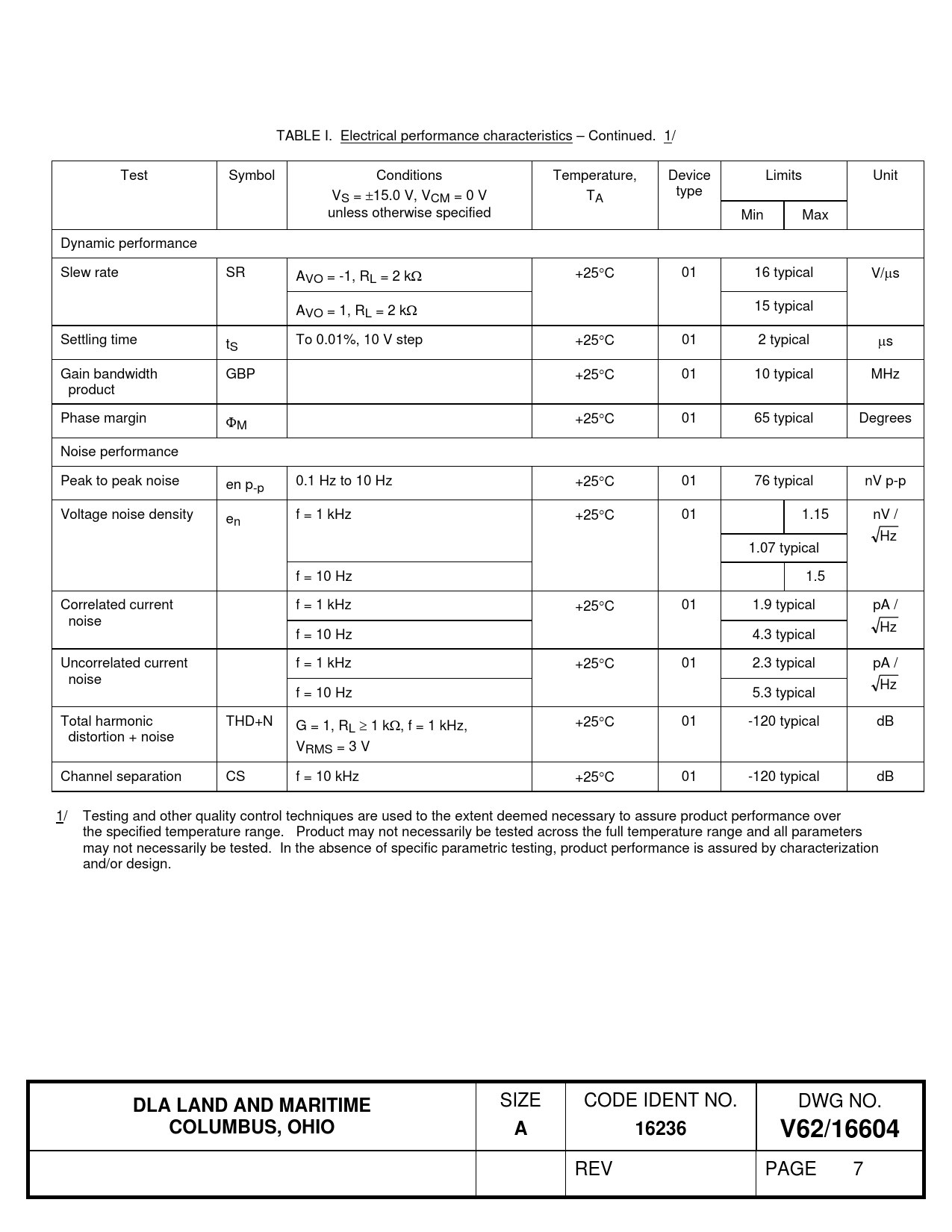

TABLE I. Electrical performance characteristics – Continued. 1/ Test Symbol Conditions Temperature, Device Limits Unit V type S = 15.0 V, VCM = 0 V TA unless otherwise specified Min Max Dynamic performance Slew rate SR AVO = -1, RL = 2 k +25C 01 16 typical V/s AVO = 1, RL = 2 k 15 typical Settling time tS To 0.01%, 10 V step +25C 01 2 typical s Gain bandwidth GBP +25C 01 10 typical MHz product Phase margin M +25C 01 65 typical Degrees Noise performance Peak to peak noise en p-p 0.1 Hz to 10 Hz +25C 01 76 typical nV p-p Voltage noise density en f = 1 kHz +25C 01 1.15 nV / Hz 1.07 typical f = 10 Hz 1.5 Correlated current f = 1 kHz +25C 01 1.9 typical pA / noise Hz f = 10 Hz 4.3 typical Uncorrelated current f = 1 kHz +25C 01 2.3 typical pA / noise Hz f = 10 Hz 5.3 typical Total harmonic THD+N G = 1, R +25C 01 -120 typical dB L  1 k, f = 1 kHz, distortion + noise VRMS = 3 V Channel separation CS f = 10 kHz +25C 01 -120 typical dB 1/ Testing and other quality control techniques are used to the extent deemed necessary to assure product performance over the specified temperature range. Product may not necessarily be tested across the full temperature range and all parameters may not necessarily be tested. In the absence of specific parametric testing, product performance is assured by characterization and/or design.
DLA LAND AND MARITIME
SIZE CODE IDENT NO. DWG NO.
COLUMBUS, OHIO A 16236 V62/16604
REV PAGE 7
