DATASHEET 4PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER EL817 Series

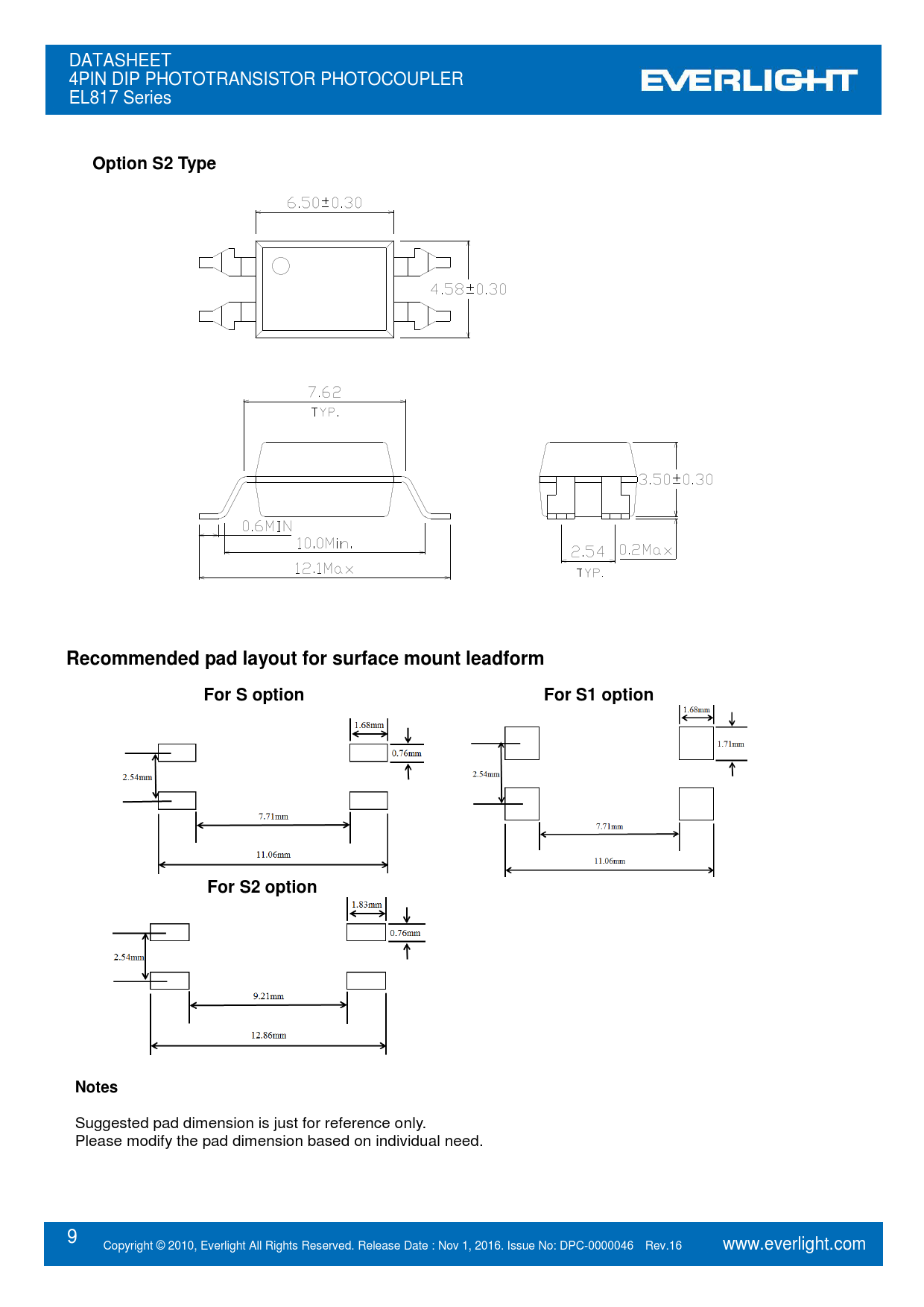

Option S2 Type Recommended pad layout for surface mount leadform For S option For S1 option For S2 option Notes
Suggested pad dimension is just for reference only. Please modify the pad dimension based on individual need. 9 Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov 1, 2016. Issue No: DPC-0000046 Rev.16 www.everlight.com
