Datasheet EL817 (Everlight) - 5
| Fabricante | Everlight |
| Descripción | 4 Pin DIP Phototransistor Photocoupler |
| Páginas / Página | 13 / 5 — Figure 7. Switching Time Test Circuit & Waveforms |
| Formato / tamaño de archivo | PDF / 846 Kb |
| Idioma del documento | Inglés |

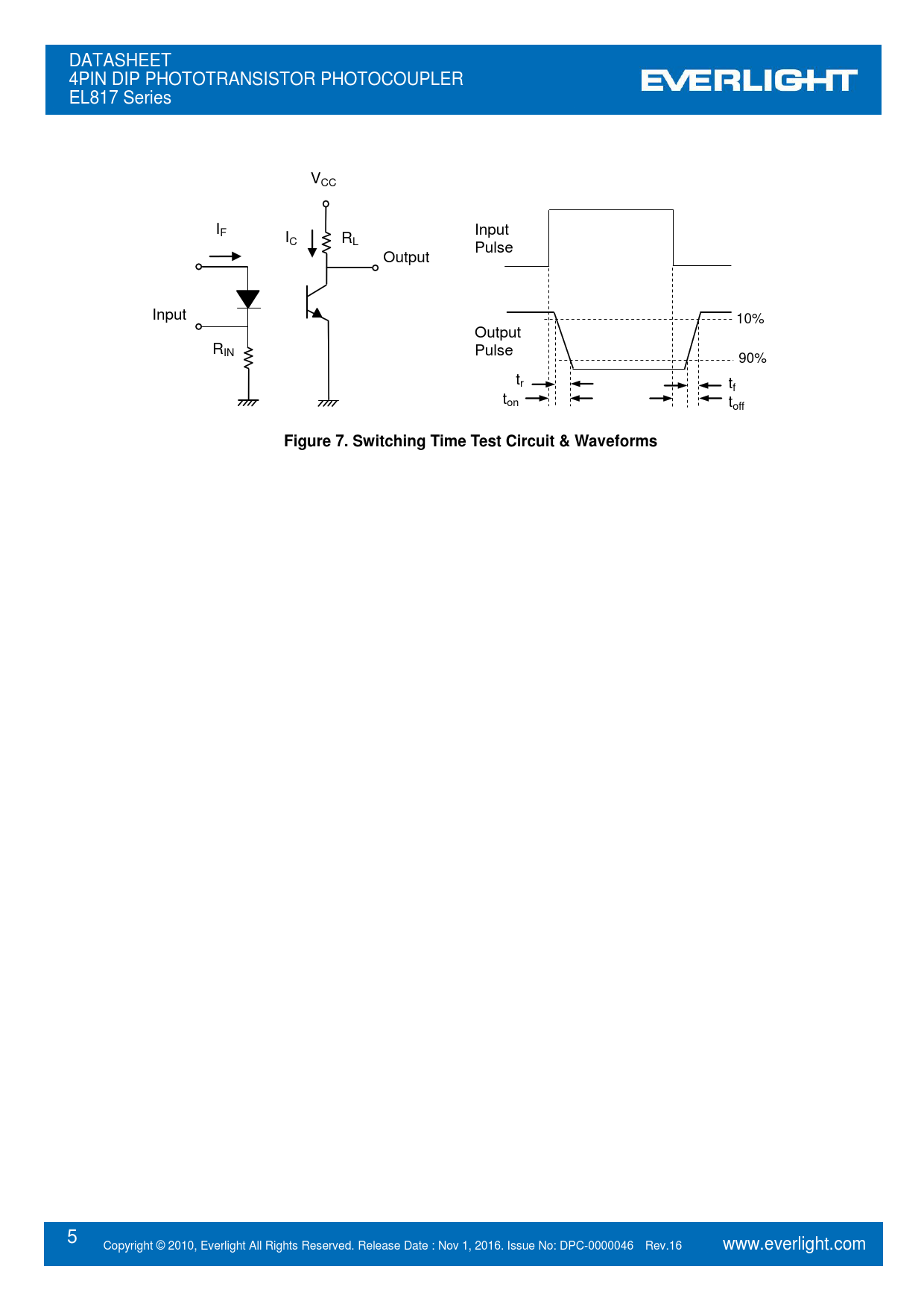

Figure 7. Switching Time Test Circuit & Waveforms
Versión de texto del documento
DATASHEET 4PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER EL817 Series V CC IF Input IC RL Pulse Output Input 10% Output R Pulse IN 90% tr t f t on toff
Figure 7. Switching Time Test Circuit & Waveforms
5 Copyright © 2010, Everlight All Rights Reserved. Release Date : Nov 1, 2016. Issue No: DPC-0000046 Rev.16 www.everlight.com
