Datasheet TC4431, TC4432 (Microchip) - 3
Fabricante | Microchip |
Descripción | 1.5A High-Speed 30V MOSFET Drivers |
Páginas / Página | 18 / 3 — TC4431/TC4432. 1.0. ELECTRICAL. CHARACTERISTICS. Absolute Maximum … |
Revisión | 01-11-2008 |
Formato / tamaño de archivo | PDF / 279 Kb |
Idioma del documento | Inglés |

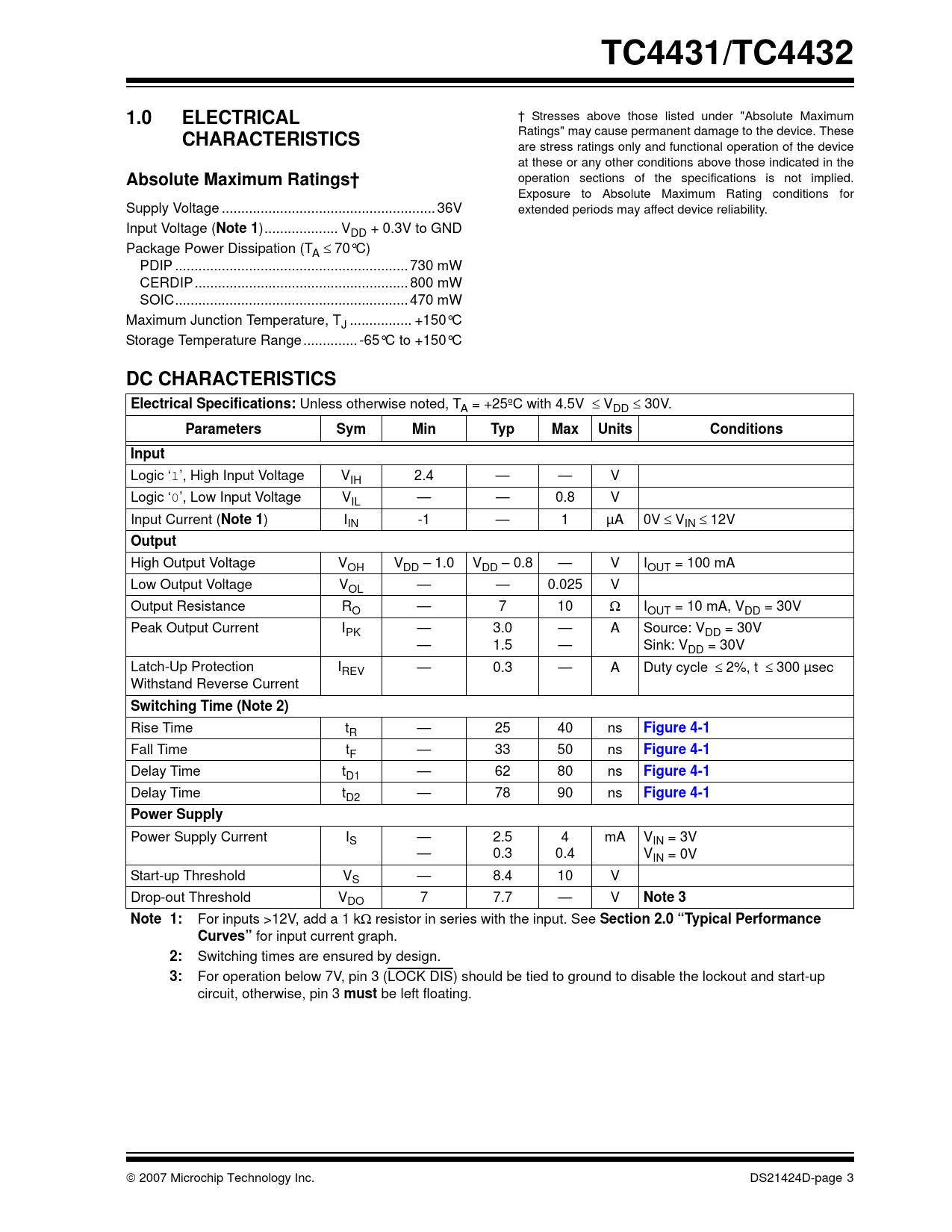

TC4431/TC4432. 1.0. ELECTRICAL. CHARACTERISTICS. Absolute Maximum Ratings†. Note 1. DC CHARACTERISTICS. Electrical Specifications:
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 3 link to page 3 link to page 3 link to page 7 link to page 7 link to page 7 link to page 7 link to page 3 link to page 5 link to page 5
TC4431/TC4432 1.0 ELECTRICAL
† Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These
CHARACTERISTICS
are stress ratings only and functional operation of the device at these or any other conditions above those indicated in the
Absolute Maximum Ratings†
operation sections of the specifications is not implied. Exposure to Absolute Maximum Rating conditions for Supply Voltage ... 36V extended periods may affect device reliability. Input Voltage (
Note 1
)... VDD + 0.3V to GND Package Power Dissipation (TA ≤ 70°C) PDIP .. 730 mW CERDIP ... 800 mW SOIC.. 470 mW Maximum Junction Temperature, TJ .. +150°C Storage Temperature Range .. -65°C to +150°C
DC CHARACTERISTICS Electrical Specifications:
Unless otherwise noted, TA = +25ºC with 4.5V ≤ VDD ≤ 30V.
Parameters Sym Min Typ Max Units Conditions Input
Logic ‘1’, High Input Voltage VIH 2.4 — — V Logic ‘0’, Low Input Voltage VIL — — 0.8 V Input Current (
Note 1
) I ≤ IN -1 — 1 µA 0V ≤ VIN 12V
Output
High Output Voltage VOH VDD – 1.0 VDD – 0.8 — V IOUT = 100 mA Low Output Voltage VOL — — 0.025 V Output Resistance RO — 7 10 Ω IOUT = 10 mA, VDD = 30V Peak Output Current IPK — 3.0 — A Sour ce: VDD = 30V — 1.5 — Sink: VDD = 30V Latch-Up Protection IREV — 0.3 — A Duty cycle ≤ 2%, t ≤ 300 µsec Withstand Reverse Current
Switching Time (Note 2 )
Rise Time tR — 25 40 ns
Figure 4-1
Fall Time tF — 33 50 ns
Figure 4-1
Delay Time tD1 — 62 80 ns
Figure 4-1
Delay Time tD2 — 78 90 ns
Figure 4-1 Power Supply
Power Supply Current IS — 2.5 4 mA VIN = 3V — 0.3 0.4 VIN = 0V Start-up Threshold VS — 8.4 10 V Drop-out Threshold VDO 7 7.7 — V
Note 3 Note 1:
For inputs >12V, add a 1 kΩ resistor in series with the input. See
Section 2.0 “Typical Performance Curves”
for input current graph.
2:
Switching times are ensured by design.
3:
For operation below 7V, pin 3 (LOCK DIS) should be tied to ground to disable the lockout and start-up circuit, otherwise, pin 3
must
be left floating. © 2007 Microchip Technology Inc. DS21424D-page 3 Document Outline 1.0 Electrical Characteristics 2.0 Typical Performance Curves FIGURE 2-1: Supply Current vs. Capacitive Load. FIGURE 2-2: Input Current vs. Input Voltage. FIGURE 2-3: Rise/Fall Time vs. VDD. FIGURE 2-4: tD1 and tD2 Delay vs. VDD. 3.0 Pin Descriptions TABLE 3-1: Pin Function Table 3.1 Supply Input (VDD) 3.2 Control Input (IN) 3.3 Lockout Disable (LOCK DIS) 3.4 Ground (GND) 3.5 Drive Output (OUT) 4.0 Applications Information FIGURE 4-1: Switching Time Test Circuit. 5.0 Packaging Information 5.1 Package Marking Information
