Datasheet ADIS16137 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | ±1000°/Sec Precision Angular Rate Sensor |
| Páginas / Página | 21 / 5 — ADIS16137. Data Sheet. TIMING SPECIFICATIONS. Table 2. Normal Mode. … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 521 Kb |
| Idioma del documento | Inglés |
ADIS16137. Data Sheet. TIMING SPECIFICATIONS. Table 2. Normal Mode. Parameter. Description. Min1. Typ. Max. Unit. Timing Diagrams. tCS. tSFS. SCLK
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 5 link to page 5

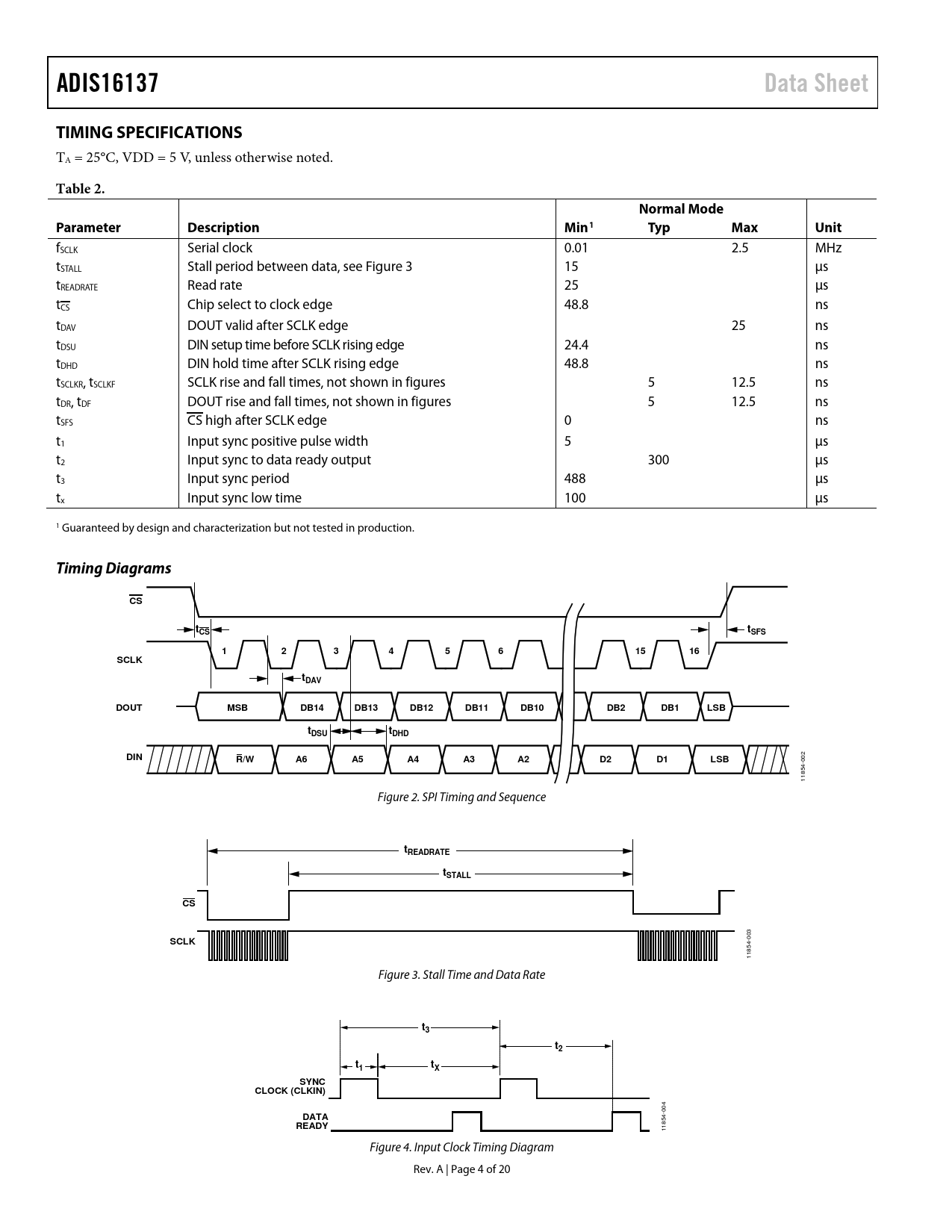

ADIS16137 Data Sheet TIMING SPECIFICATIONS
TA = 25°C, VDD = 5 V, unless otherwise noted.
Table 2. Normal Mode Parameter Description Min1 Typ Max Unit
fSCLK Serial clock 0.01 2.5 MHz tSTALL Stall period between data, see Figure 3 15 µs tREADRATE Read rate 25 µs tCS Chip select to clock edge 48.8 ns tDAV DOUT valid after SCLK edge 25 ns tDSU DIN setup time before SCLK rising edge 24.4 ns tDHD DIN hold time after SCLK rising edge 48.8 ns tSCLKR, tSCLKF SCLK rise and fall times, not shown in figures 5 12.5 ns tDR, tDF DOUT rise and fall times, not shown in figures 5 12.5 ns tSFS CS high after SCLK edge 0 ns t1 Input sync positive pulse width 5 µs t2 Input sync to data ready output 300 µs t3 Input sync period 488 µs tx Input sync low time 100 µs 1 Guaranteed by design and characterization but not tested in production.
Timing Diagrams CS tCS tSFS 1 2 3 4 5 6 15 16 SCLK tDAV DOUT MSB DB14 DB13 DB12 DB11 DB10 DB2 DB1 LSB t t DSU DHD DIN R/W A6 A5 A4 A3 A2 D2 D1 LSB
002 11854- Figure 2. SPI Timing and Sequence
tREADRATE tSTALL CS
003
SCLK
11854- Figure 3. Stall Time and Data Rate
t3 t2 t t 1 X SYNC CLOCK (CLKIN)
004
DATA READY
