Datasheet ADXRS910 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | Rollover Detection In-Plane Gyroscope |
| Páginas / Página | 3 / 1 — Rol over Detection In-Plane Gyroscope. Data Sheet. ADXRS910. FEATURES. … |
| Revisión | Sp0 |
| Formato / tamaño de archivo | PDF / 105 Kb |
| Idioma del documento | Inglés |

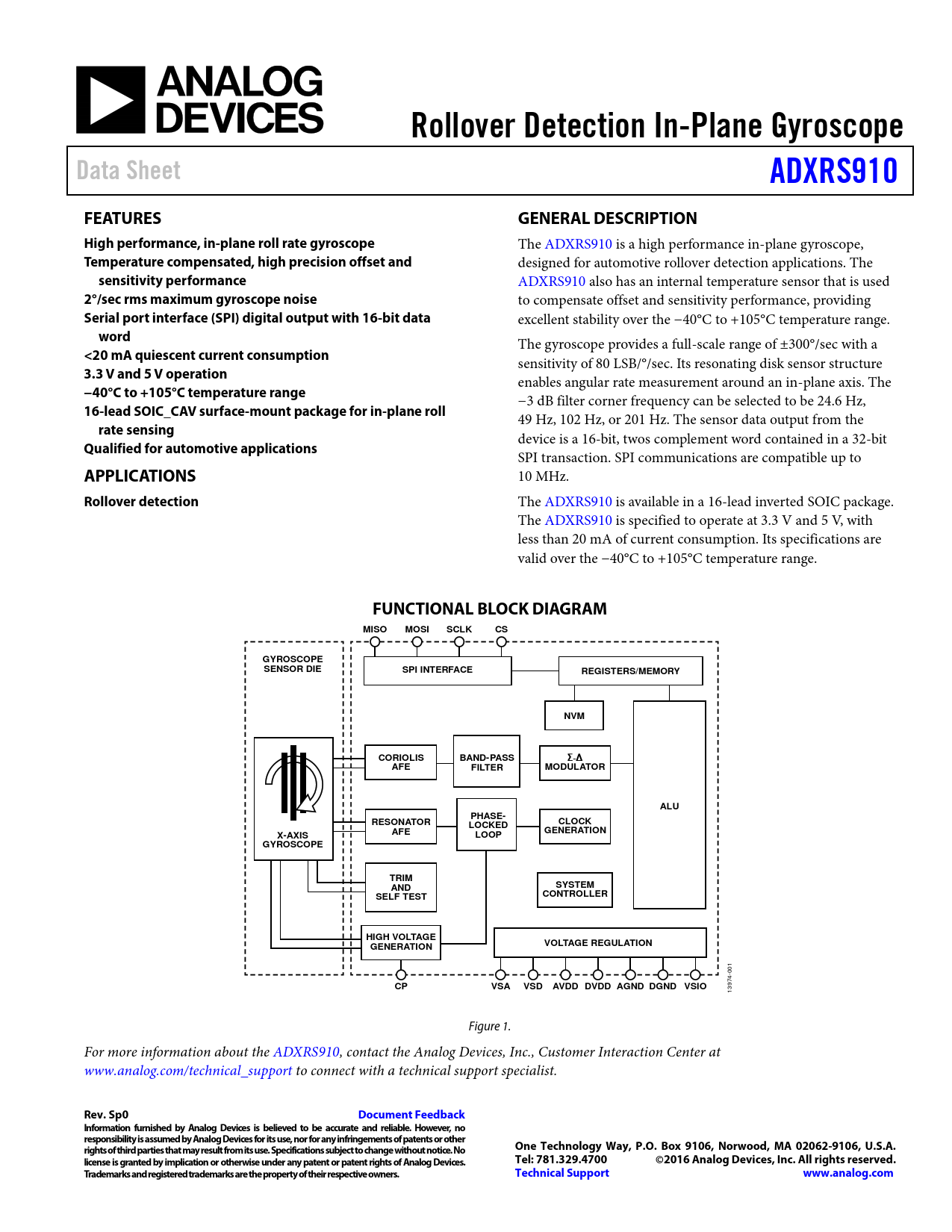

Rol over Detection In-Plane Gyroscope. Data Sheet. ADXRS910. FEATURES. GENERAL DESCRIPTION
Línea de modelo para esta hoja de datos
Versión de texto del documento
Rol over Detection In-Plane Gyroscope Data Sheet ADXRS910 FEATURES GENERAL DESCRIPTION High performance, in-plane roll rate gyroscope
The ADXRS910 is a high performance in-plane gyroscope,
Temperature compensated, high precision offset and
designed for automotive rollover detection applications. The
sensitivity performance
ADXRS910 also has an internal temperature sensor that is used
2°/sec rms maximum gyroscope noise
to compensate offset and sensitivity performance, providing
Serial port interface (SPI) digital output with 16-bit data
excellent stability over the −40°C to +105°C temperature range.
word
The gyroscope provides a full-scale range of ±300°/sec with a
<20 mA quiescent current consumption
sensitivity of 80 LSB/°/sec. Its resonating disk sensor structure
3.3 V and 5 V operation
enables angular rate measurement around an in-plane axis. The
−40°C to +105°C temperature range
−3 dB filter corner frequency can be selected to be 24.6 Hz,
16-lead SOIC_CAV surface-mount package for in-plane roll
49 Hz, 102 Hz, or 201 Hz. The sensor data output from the
rate sensing
device is a 16-bit, twos complement word contained in a 32-bit
Qualified for automotive applications
SPI transaction. SPI communications are compatible up to
APPLICATIONS
10 MHz.
Rollover detection
The ADXRS910 is available in a 16-lead inverted SOIC package. The ADXRS910 is specified to operate at 3.3 V and 5 V, with less than 20 mA of current consumption. Its specifications are valid over the −40°C to +105°C temperature range.
FUNCTIONAL BLOCK DIAGRAM MISO MOSI SCLK CS GYROSCOPE SENSOR DIE SPI INTERFACE REGISTERS/MEMORY NVM CORIOLIS BAND-PASS Σ-Δ AFE FILTER MODULATOR ALU PHASE- RESONATOR LOCKED CLOCK AFE X-AXIS LOOP GENERATION GYROSCOPE TRIM SYSTEM AND CONTROLLER SELF TEST HIGH VOLTAGE GENERATION VOLTAGE REGULATION
001
CP VSA VSD AVDD DVDD AGND DGND VSIO
13974- Figure 1. For more information about the ADXRS910, contact the Analog Devices, Inc., Customer Interaction Center at www.analog.com/technical_support to connect with a technical support specialist.
Rev. Sp0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2016 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
