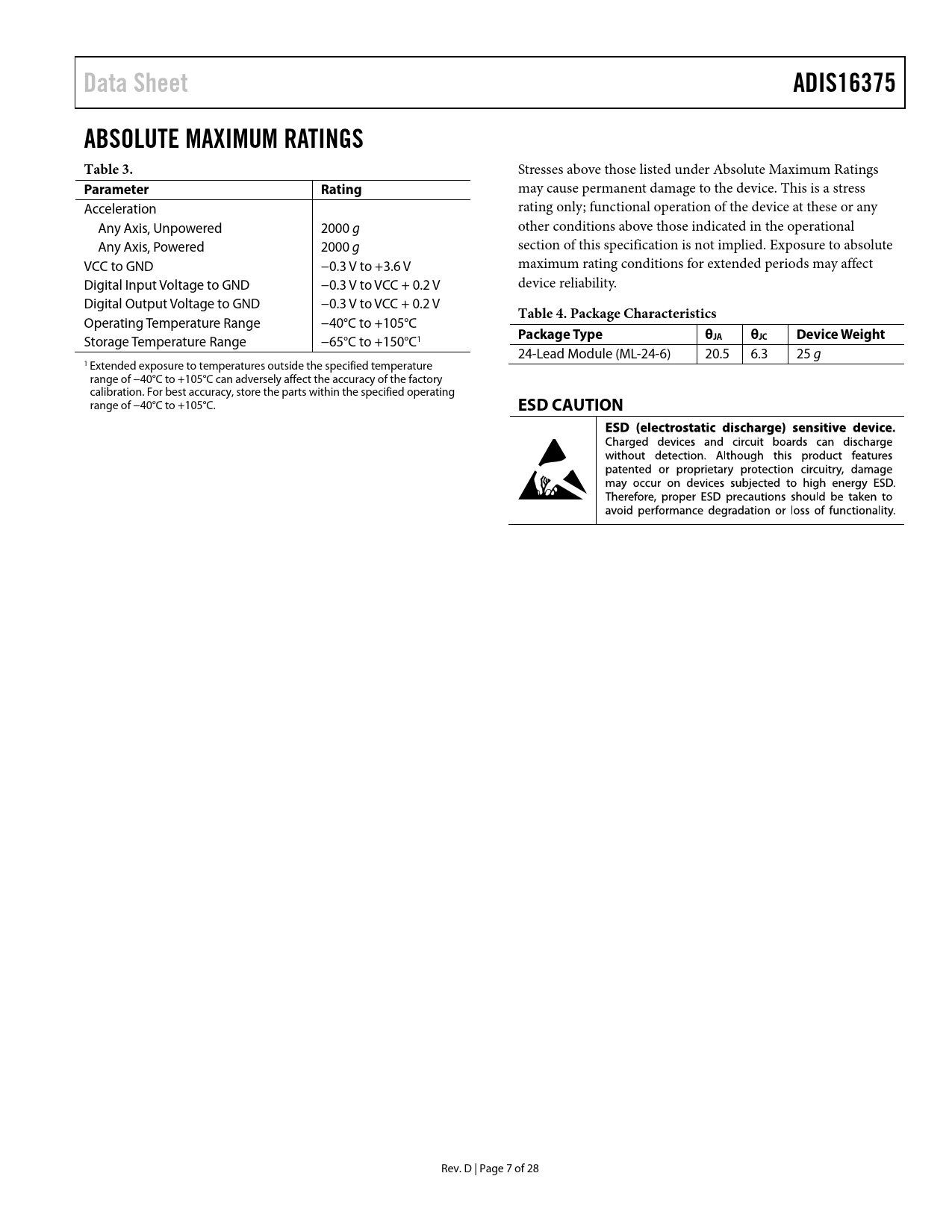

Data Sheet ADIS16375 ABSOLUTE MAXIMUM RATINGS Table 3.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Acceleration rating only; functional operation of the device at these or any Any Axis, Unpowered 2000 g other conditions above those indicated in the operational Any Axis, Powered 2000 g section of this specification is not implied. Exposure to absolute VCC to GND −0.3 V to +3.6 V maximum rating conditions for extended periods may affect Digital Input Voltage to GND −0.3 V to VCC + 0.2 V device reliability. Digital Output Voltage to GND −0.3 V to VCC + 0.2 V
Table 4. Package Characteristics
Operating Temperature Range −40°C to +105°C
Package Type θ
Storage Temperature Range −65°C to +150°C1
JA θJC Device Weight
24-Lead Module (ML-24-6) 20.5 6.3 25 g 1 Extended exposure to temperatures outside the specified temperature range of −40°C to +105°C can adversely affect the accuracy of the factory calibration. For best accuracy, store the parts within the specified operating range of −40°C to +105°C.
