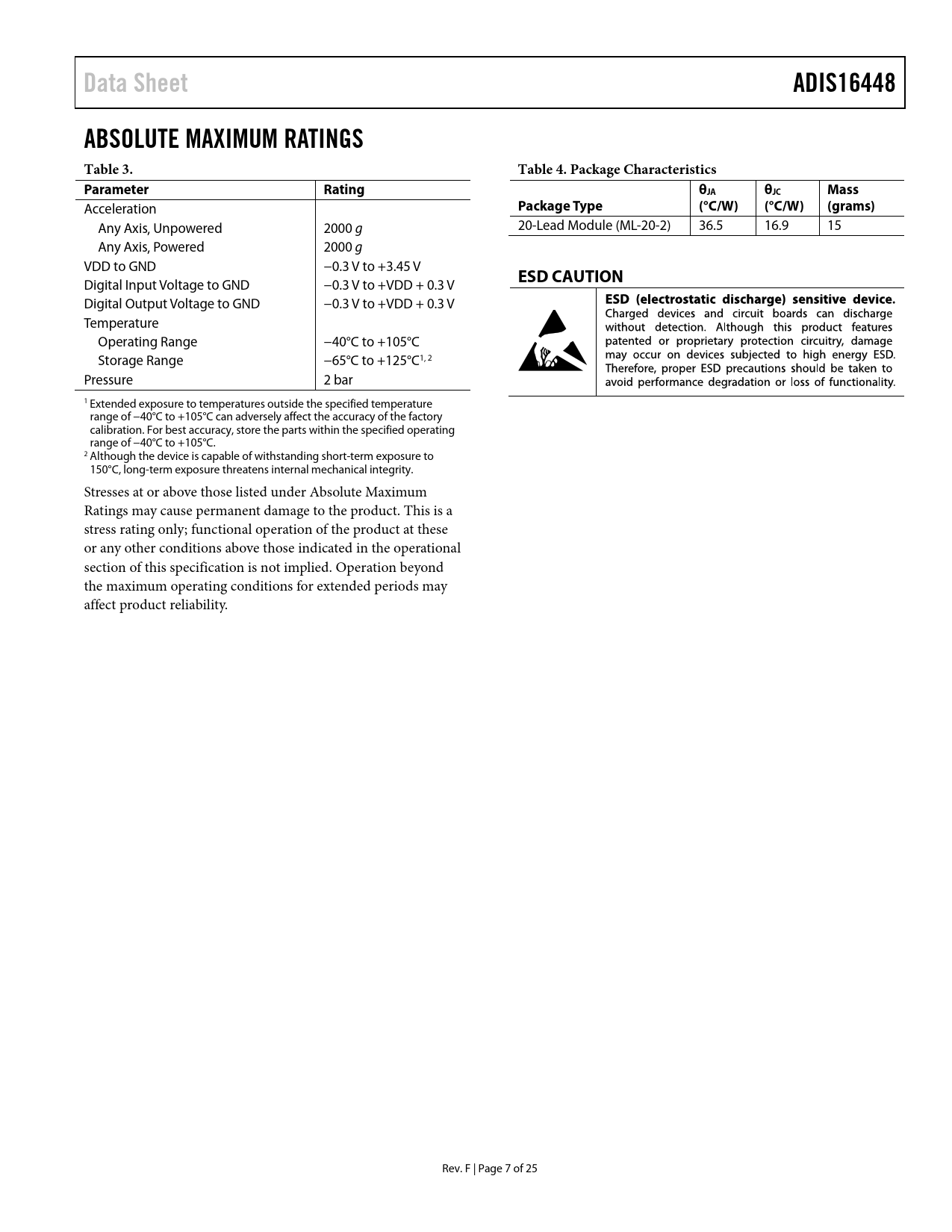

Data Sheet ADIS16448 ABSOLUTE MAXIMUM RATINGS Table 3. Table 4. Package Characteristics Parameter Rating θJA θJC Mass
Acceleration
Package Type (°C/W) (°C/W) (grams)
Any Axis, Unpowered 2000 g 20-Lead Module (ML-20-2) 36.5 16.9 15 Any Axis, Powered 2000 g VDD to GND −0.3 V to +3.45 V
ESD CAUTION
Digital Input Voltage to GND −0.3 V to +VDD + 0.3 V Digital Output Voltage to GND −0.3 V to +VDD + 0.3 V Temperature Operating Range −40°C to +105°C Storage Range −65°C to +125°C1, 2 Pressure 2 bar 1 Extended exposure to temperatures outside the specified temperature range of −40°C to +105°C can adversely affect the accuracy of the factory calibration. For best accuracy, store the parts within the specified operating range of −40°C to +105°C. 2 Although the device is capable of withstanding short-term exposure to 150°C, long-term exposure threatens internal mechanical integrity. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. F | Page 7 of 25 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS Timing Diagrams ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS USER REGISTERS USER INTERFACE READING SENSOR DATA Burst Read Function Burst Read Function with CRC SPI Read Test Sequence DEVICE CONFIGURATION Dual Memory Structure OUTPUT DATA REGISTERS GYROSCOPES ACCELEROMETERS MAGNETOMETERS BAROMETRIC PRESSURE REMOTE PRESSURE SENSING INTERNAL TEMPERATURE SYSTEM FUNCTIONS GLOBAL COMMANDS PRODUCT IDENTIFICATION SELF-TEST FUNCTION STATUS/ERROR FLAGS Magnetometer/Barometer New Data Indicator MEMORY MANAGEMENT Checksum Test INPUT/OUTPUT CONFIGURATION DATA READY INDICATOR GENERAL-PURPOSE INPUT/OUTPUT Example Input/Output Configuration DIGITAL PROCESSING CONFIGURATION GYROSCOPES/ACCELEROMETERS INPUT CLOCK CONFIGURATION Digital Filtering Dynamic Range MAGNETOMETER/BAROMETER New Data Indicators CALIBRATION GYROSCOPES Gyroscope Bias Error Estimation Gyroscope Bias Correction Factors Single Command Bias Correction ACCELEROMETERS Accelerometer Bias Error Estimation Accelerometer Bias Correction Factors Point of Percussion Alignment MAGNETOMETER CALIBRATION Hard Iron Correction Hard Iron Factors Soft Iron Effects FLASH UPDATES RESTORING FACTORY CALIBRATION ALARMS STATIC ALARM USE DYNAMIC ALARM USE ALARM REPORTING Alarm Example APPLICATIONS INFORMATION MOUNTING TIPS POWER SUPPLY CONSIDERATIONS ADIS16IMU2/PCBZ PC-BASED EVALUATION TOOLS OUTLINE DIMENSIONS ORDERING GUIDE
