Precision, Miniature MEMs IMU. Preliminary Technical Data. ADIS16465. FEATURES. GENERAL DESCRIPTION. Triaxial, digital gyroscope
Línea de modelo para esta hoja de datos
Versión de texto del documento

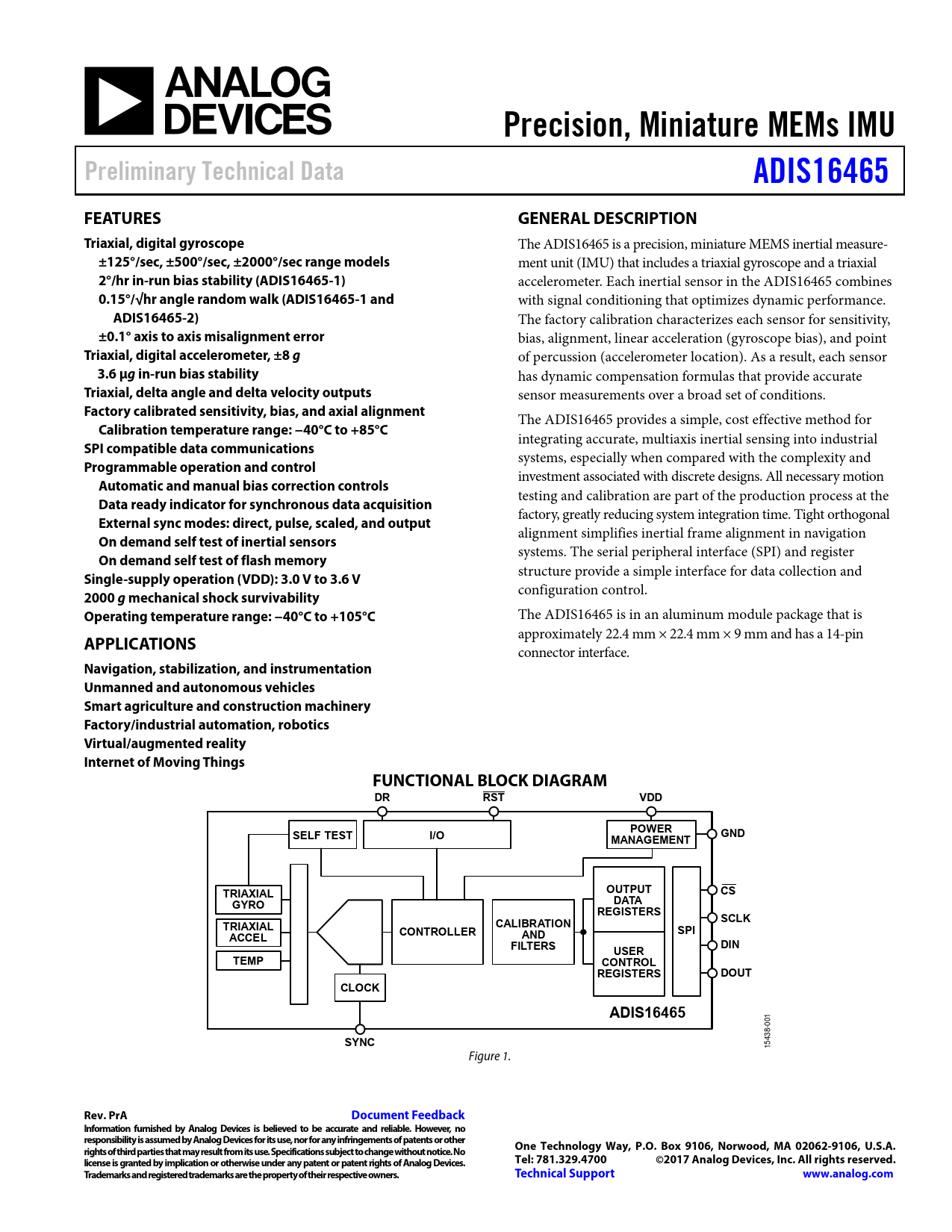

Precision, Miniature MEMs IMU Preliminary Technical Data ADIS16465 FEATURES GENERAL DESCRIPTION Triaxial, digital gyroscope
The ADIS16465 is a precision, miniature MEMS inertial measure-
±125°/sec, ±500°/sec, ±2000°/sec range models
ment unit (IMU) that includes a triaxial gyroscope and a triaxial
2°/hr in-run bias stability (ADIS16465-1)
accelerometer. Each inertial sensor in the ADIS16465 combines
0.15°/√hr angle random walk (ADIS16465-1 and
with signal conditioning that optimizes dynamic performance.
ADIS16465-2)
The factory calibration characterizes each sensor for sensitivity,
±0.1° axis to axis misalignment error
bias, alignment, linear acceleration (gyroscope bias), and point
Triaxial, digital accelerometer, ±8 g
of percussion (accelerometer location). As a result, each sensor
3.6 μg in-run bias stability
has dynamic compensation formulas that provide accurate
Triaxial, delta angle and delta velocity outputs
sensor measurements over a broad set of conditions.
Factory calibrated sensitivity, bias, and axial alignment
The ADIS16465 provides a simple, cost effective method for
Calibration temperature range: −40°C to +85°C
integrating accurate, multiaxis inertial sensing into industrial
SPI compatible data communications
systems, especially when compared with the complexity and
Programmable operation and control
investment associated with discrete designs. All necessary motion
Automatic and manual bias correction controls
testing and calibration are part of the production process at the
Data ready indicator for synchronous data acquisition
factory, greatly reducing system integration time. Tight orthogonal
External sync modes: direct, pulse, scaled, and output
alignment simplifies inertial frame alignment in navigation
On demand self test of inertial sensors
systems. The serial peripheral interface (SPI) and register
On demand self test of flash memory
structure provide a simple interface for data collection and
Single-supply operation (VDD): 3.0 V to 3.6 V
configuration control.
2000 g mechanical shock survivability Operating temperature range: −40°C to +105°C
The ADIS16465 is in an aluminum module package that is approximately 22.4 mm × 22.4 mm × 9 mm and has a 14-pin
APPLICATIONS
connector interface.
Navigation, stabilization, and instrumentation Unmanned and autonomous vehicles Smart agriculture and construction machinery Factory/industrial automation, robotics Virtual/augmented reality Internet of Moving Things FUNCTIONAL BLOCK DIAGRAM DR RST VDD POWER SELF TEST I/O GND MANAGEMENT TRIAXIAL OUTPUT CS GYRO DATA REGISTERS SCLK TRIAXIAL CALIBRATION CONTROLLER SPI ACCEL AND FILTERS DIN USER TEMP CONTROL REGISTERS DOUT CLOCK ADIS16465
001 38-
SYNC
154 Figure 1.
Rev. PrA Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
