ADIS16495. Data Sheet. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. TOP VIEW. (Not to Scale). O P. IO4. DNC. VDD. PIN 23 PIN 1. 23 21. IO2. IO1
Línea de modelo para esta hoja de datos
Versión de texto del documento

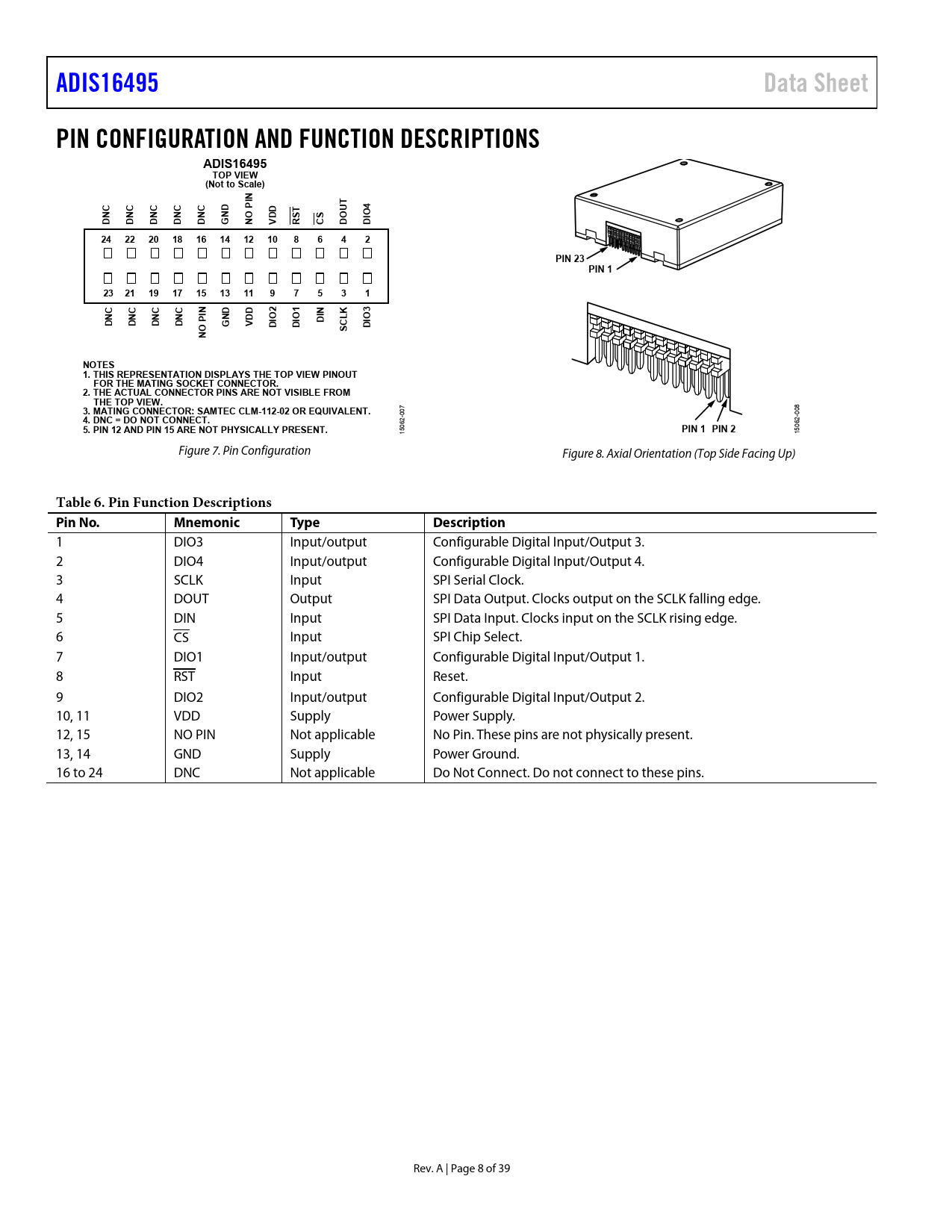

ADIS16495 Data Sheet PIN CONFIGURATION AND FUNCTION DESCRIPTIONS ADIS16495 TOP VIEW (Not to Scale) IN T UT ND O P IO4 DNC DNC DNC DNC DNC G VDD N RS CS DO D 24 22 20 18 16 14 12 10 8 6 4 2 PIN 23 PIN 1 23 21 19 17 15 13 11 9 7 5 3 1 IN N K ND IO2 IO1 DI IO3 DNC DNC DNC DNC VDD G D D D O P SCL N NOTES 1. THIS REPRESENTATION DISPLAYS THE TOP VIEW PINOUT FOR THE MATING SOCKET CONNECTOR. 2. THE ACTUAL CONNECTOR PINS ARE NOT VISIBLE FROM THE TOP VIEW. 3. MATING CONNECTOR: SAMTEC CLM-112-02 OR EQUIVALENT.
007 008
4. DNC = DO NOT CONNECT. 5. PIN 12 AND PIN 15 ARE NOT PHYSICALLY PRESENT.
15062-
PIN 1 PIN 2
15062- Figure 7. Pin Configuration Figure 8. Axial Orientation (Top Side Facing Up)
Table 6. Pin Function Descriptions Pin No. Mnemonic Type Description
1 DIO3 Input/output Configurable Digital Input/Output 3. 2 DIO4 Input/output Configurable Digital Input/Output 4. 3 SCLK Input SPI Serial Clock. 4 DOUT Output SPI Data Output. Clocks output on the SCLK falling edge. 5 DIN Input SPI Data Input. Clocks input on the SCLK rising edge. 6 CS Input SPI Chip Select. 7 DIO1 Input/output Configurable Digital Input/Output 1. 8 RST Input Reset. 9 DIO2 Input/output Configurable Digital Input/Output 2. 10, 11 VDD Supply Power Supply. 12, 15 NO PIN Not applicable No Pin. These pins are not physically present. 13, 14 GND Supply Power Ground. 16 to 24 DNC Not applicable Do Not Connect. Do not connect to these pins. Rev. A | Page 8 of 39 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM REVISION HISTORY SPECIFICATIONS TIMING SPECIFICATIONS Register Specific Stall Times Timing Diagrams ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION INERTIAL SENSOR SIGNAL CHAIN Gyroscope Data Sampling Accelerometer Data Sampling External Clock Options Inertial Sensor Calibration Gyroscope Factory Calibration Accelerometer Factory Calibration Filtering REGISTER STRUCTURE SERIAL PERIPHERAL INTERFACE DATA READY READING SENSOR DATA Burst Read Function DEVICE CONFIGURATION Dual Memory Structure USER REGISTER MEMORY MAP USER REGISTER DEFINTIONS PAGE NUMBER (PAGE_ID) DATA/SAMPLE COUNTER (DATA_CNT) STATUS/ERROR FLAG INDICATORS (SYS_E_FLAG) SELF TEST ERROR FLAGS (DIAG_STS) INTERNAL TEMPERATURE (TEMP_OUT) GYROSCOPE DATA Gyroscope Measurement Range/Scale Factor Gyroscope Data Formatting X-Axis Gyroscope (X_GYRO_LOW, X_GRYO_OUT) Y-Axis Gyroscope (Y_GYRO_LOW, Y_GYRO_OUT) Z-Axis Gyroscope (Z_GYRO_LOW, Z_GYRO_OUT) ACCELERATION DATA X-Axis Accelerometer (X_ACCL_LOW, X_ACCL_OUT) Y-Axis Accelerometer (Y_ACCL_LOW, Y_ACCL_OUT) Z-Axis Accelerometer (Z_ACCL_LOW, Z_ACCL_OUT) Accelerometer Resolution TIME STAMP CYCLICAL REDUNDANDCY CHECK (CRC-32) DELTA ANGLES Delta Angle Measurement Range X-Axis Delta Angle (X_DELTANG_LOW, X_DELTANG_OUT) Y-Axis Delta Angle (Y_DELTANG_LOW, Y_DELTANG_OUT) Z-Axis Delta Angle (Z_DELTANG_LOW, Z_DELTANG_OUT) Delta Angle Resolution DELTA VELOCITY X-Axis Delta Velocity (X_DELTVEL_LOW, X_DELTVEL_OUT) Y-Axis Delta Velocity (Y_DELTVEL_LOW, Y_DELTVEL_OUT) Z-Axis Delta Velocity (Z_DELTVEL_LOW, Z_DELTVEL_OUT) Delta Velocity Resolution Burst Read Command, BURST_CMD Product Identification, PROD_ID USER BIAS/SCALE ADJUSTMENT Gyroscope Scale Adjustment, X_GYRO_SCALE Gyroscope Scale Adjustment, Y_GYRO_SCALE Gyroscope Scale Adjustment, Z_GYRO_SCALE Accelerometer Scale Adjustment, X_ACCL_SCALE Accelerometer Scale Adjustment, Y_ACCL_SCALE Accelerometer Scale Adjustment, Z_ACCL_SCALE Gyroscope Bias Adjustment, XG_BIAS_LOW, XG_BIAS_HIGH Gyroscope Bias Adjustment, YG_BIAS_LOW, YG_BIAS_HIGH Gyroscope Bias Adjustment, ZG_BIAS_LOW, ZG_BIAS_HIGH Accelerometer Bias Adjustment, XA_BIAS_LOW, XA_BIAS_HIGH Accelerometer Bias Adjustment, YA_BIAS_LOW, YA_BIAS_HIGH Accelerometer Bias Adjustment, ZA_BIAS_LOW, ZA_BIAS_HIGH SCRATCH REGISTERS, USER_SCR_X FLASH MEMORY ENDURANCE COUNTER, FLSHCNT_LOW, FLSHCNT_HIGH GLOBAL COMMANDS, GLOB_CMD Software Reset Clear User Calibration Flash Memory Update On Demand Self Test (ODST) Bias Correction Update AUXILIARY I/O LINE CONFIGURATION, FNCTIO_CTRL Data Ready Indicator Input Sync/Clock Control GENERAL-PURPOSE I/O CONTROL, GPIO_CTRL MISCELLANEOUS CONFIGURATION, CONFIG Point of Percussion LINEAR ACCELERATION ON EFFECT ON GYROSCOPE BIAS DECIMATION FILTER, DEC_RATE CONTINUOUS BIAS ESTIMATION (CBE), NULL_CNFG SCALING THE INPUT CLOCK (PPS MODE), SYNC_SCALE Measurement Range Identifier, RANG_MDL FIR FILTERS FIR Filters Control, FILTR_BNK_0, FILTR_BNK_1 FIR Filter Bank Memory Maps FIR Filter Bank A, FIR_COEF_A000 to FIR_COEF_A119 FIR Filter Bank B, FIR_COEF_B000 to FIR_COEF_B119 FIR Filter Bank C, FIR_COEF_C000 to FIR_COEF_C119 FIR Filter Bank D, FIR_COEF_D000 to FIR_COEF_D119 Default Filter Performance FIRMWARE REVISION, FIRM_REV Firmware Revision Year, FIRM_Y Boot Revision Number, BOOT_REV Continuous SRAM Testing Signature CRC, Calibration Values, CAL_SIGTR_LWR Signature CRC, Calibration Values, CAL_SIGTR_UPR Derived CRC, Calibration Values, CAL_DRVTN_LWR Derived CRC, Calibration Values, CAL_DRVTN_UPR Signature CRC, Program Code, CODE_SIGTR_LWR Signature CRC, Program Code, CODE_SIGTR_UPR Derived CRC, Program Code, CODE_DRVTN_LWR Derived CRC, Program Code, CODE_DRVTN_UPR Lot Specific Serial Number, SERIAL_NUM APPLICATIONS INFORMATION MOUNTING BEST PRACTICES PREVENTING MISINSERTION EVALUATION TOOLS Breakout Board, ADIS16IMU1/PCBZ PC-Based Evaluation, EVAL-ADIS2 POWER SUPPLY CONSIDERATIONS OUTLINE DIMENSIONS ORDERING GUIDE
