Datasheet AMP03 (Analog Devices) - 6
| Fabricante | Analog Devices |
| Descripción | High-Speed Differential Amplifier |
| Páginas / Página | 10 / 6 — STANDARD. 5962-95639. MICROCIRCUIT DRAWING |
| Formato / tamaño de archivo | PDF / 93 Kb |
| Idioma del documento | Inglés |
STANDARD. 5962-95639. MICROCIRCUIT DRAWING
Línea de modelo para esta hoja de datos
Versión de texto del documento

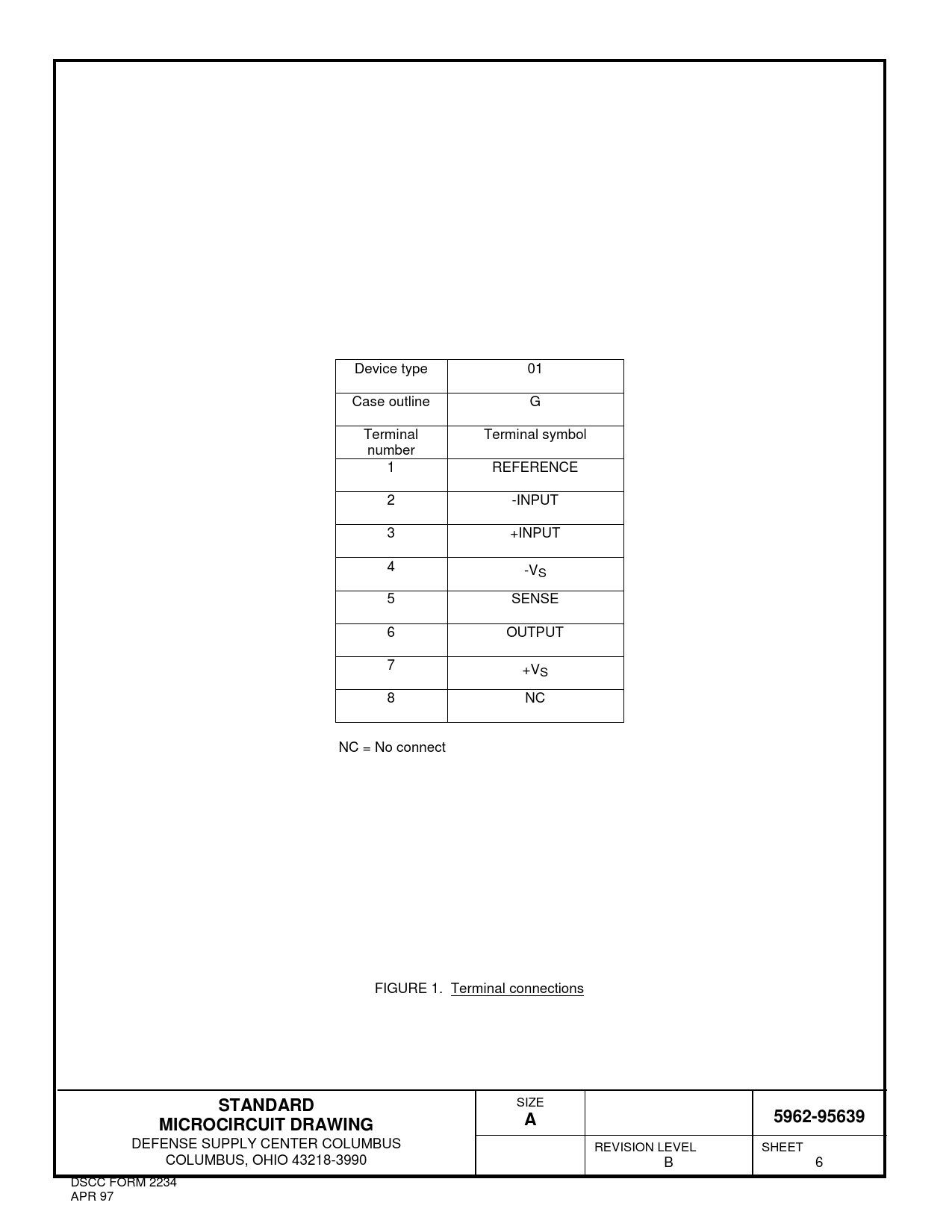

Device type 01 Case outline G Terminal Terminal symbol number 1 REFERENCE 2 -INPUT 3 +INPUT 4 -VS 5 SENSE 6 OUTPUT 7 +VS 8 NC NC = No connect FIGURE 1. Terminal connections
